- Size:
- 16"
- Style:
- 1-Speed
this is left on all summer and great. it rusted quick but still kicking. not hot at all
Canarm 16'' Variable-Speed Standard Wall Exhaust Fan S16-EVD - 2,370 CFM, 1 Phase, 1/3 hp
Item number 664sd160334MFR number SD160334
Note: Similar size shown
Works With
Apply, opens link in this tabEarn up to $11.89 back (1,189 points)
(1,189 points) with a Webstaurant Rewards Visa® Credit Card
Usually Ships in 1-2 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Improves air quality in commercial and industrial settings
- Durable welded steel construction with powder-coated finish
- 16" aluminum blade with chrome-plated heavy wire guards
- Thermal overload protection for safe use
- Energy-efficient 1/3 hp motor produces up to 2,370 CFM; 115/230V, 1 phase
UPC Code:400017541235
Works With

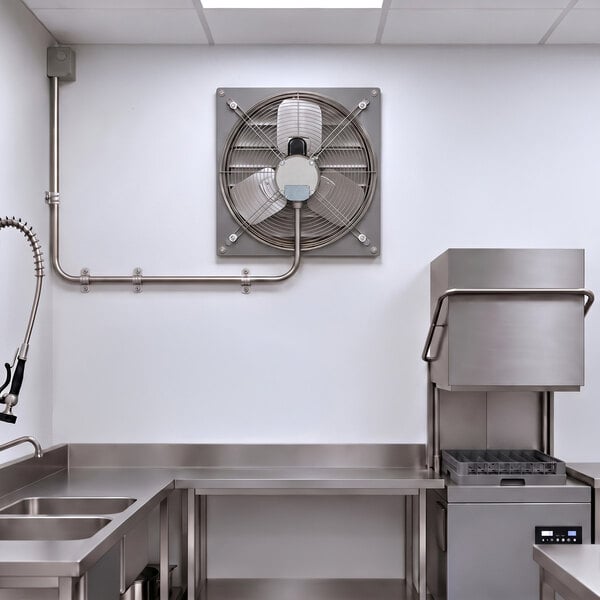

Ideal for industrial and commercial settings, this Canarm standard wall exhaust fan provides ventilation to improve air quality in your facility.

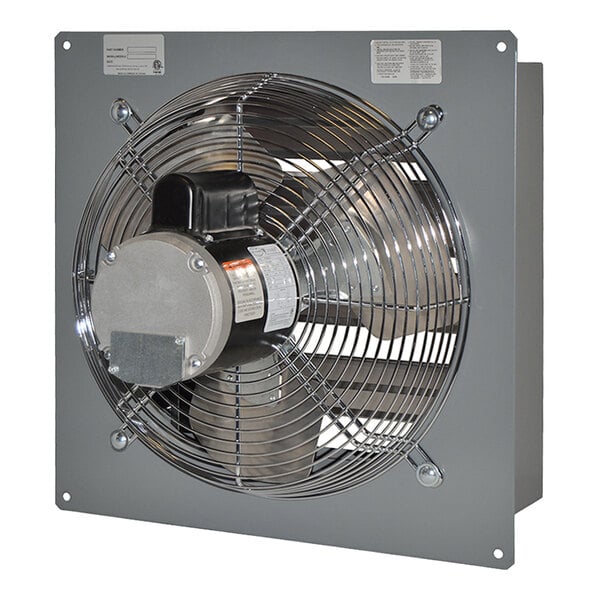

This Canarm exhaust fan includes a durable 16" aluminum blade protected by chrome-plated heavy wire guards on the intake side of the fan. For optimal performance, it features a variable-speed, direct-drive, 1/3 hp motor that reaches up to 2,370 CFM on the highest setting and has a maximum RPM of 1,625. This unit requires a 115/230V, 1 phase electrical connection.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Fully Assembled
This item arrives fully assembled, and requires no additional assembly prior to use.
ETL Listed
This product has been certified by ETL, a division of the Intertek Group.
Built for Continuous Operation

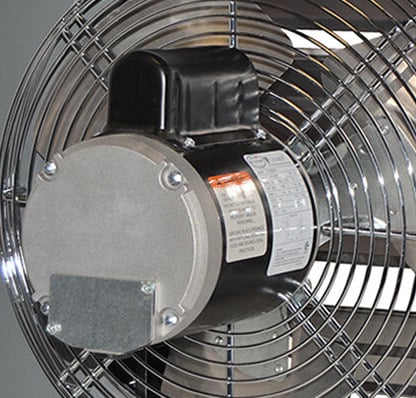

Designed to help protect against dust, dirt, and moisture, the motor is completely enclosed and features thermal overload protection to prevent overheating while providing reliable performance for continuous-duty applications. This fan uses a dual voltage motor in combination with the blades for excellent energy efficiency.
Durable Construction

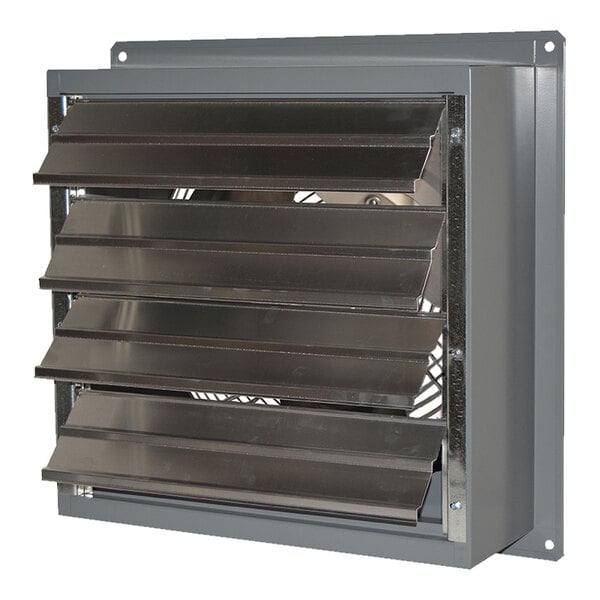

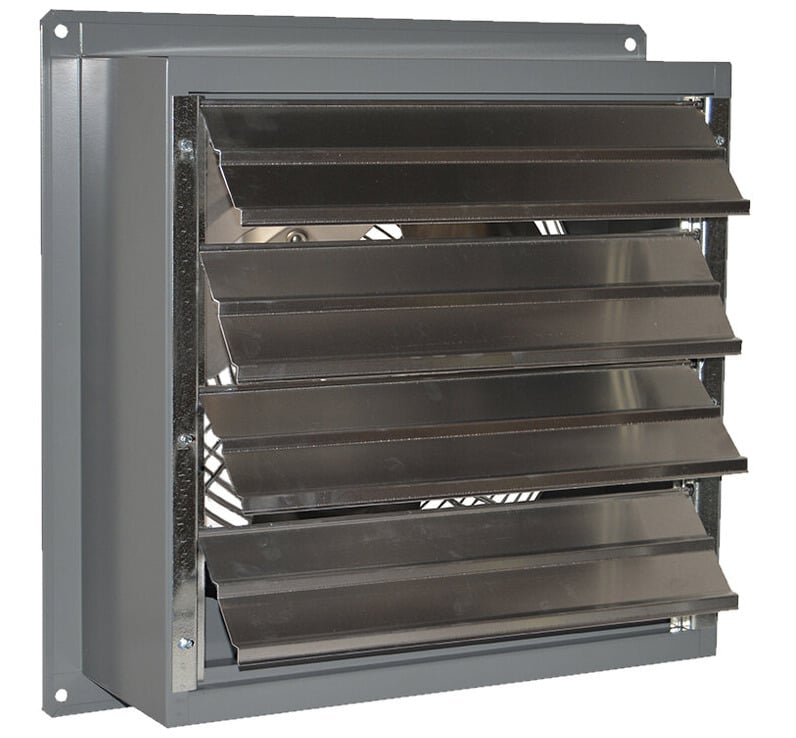

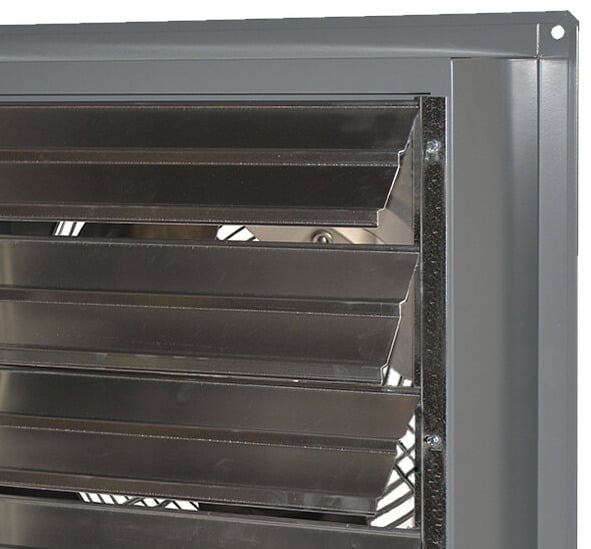

This rugged fan includes durable aluminum louver shutters with nylon bushings to help prevent backdraft when not in use, minimizing unwanted air exchange. Plus, the shutters have a tie bar to maximize airflow and a magnet that secures the louvers in place when not in operation, providing quiet operation and a superior seal. This fan is housed in a sturdy welded steel box with a powder-coated finish for long-lasting use.
Convenient and Versatile
Perfect for use in workshops, garages, warehouses, architectural buildings, and light industrial facilities, this exhaust fan installs from inside the wall without the need for external framing or shutters. This allows you to maximize usable interior space while directly and efficiently exhausting stale or contaminated air, making it a versatile and effective option for retrofit projects or new construction.
Ships Fully Assembled
For added convenience, this Canram standard wall exhaust fan ships fully assembled and is simple to install using only four screws (sold separately), reducing the amount of time it takes to set up.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.
Frequently Asked Questions From Customers
What materials will my unit be constructed with?
Canarm exhaust fans have a powder-coated steel housing. However, components such as the blade and/or louvers are constructed of aluminum.
Overall Dimensions:
- Width:
- 21 1/4 Inches
- Depth:
- 17 Inches
- Height:
- 21 1/4 Inches
- Blade Diameter:
- 16 Inches
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
