$302.49/Each
Ships free with PlusEarn up to $9.07 back (907 points)with a Webstaurant Rewards Visa® Credit Card
Size: 12"
Product Overview
- Improves air quality in commercial and industrial settings
- Durable welded steel construction with powder-coated finish
- 12" aluminum blade with OSHA-compliant, chrome-plated wire guards
- Thermal overload protection for safe use
- Energy-efficient 1/3 hp motor produces up to 1650 CFM; 115/230V, 1 phase
- Quantity
- 1/Each
- Shipping Weight
- 31.58 lb.
- Width
- 17 1/4 Inches
- Depth
- 17 Inches
- Height
- 17 1/4 Inches
- Blade Diameter
- 12 Inches
- Phase
- 1 Phase
- Voltage
- 115/230 Volts
- Assembled
- Fully Assembled
- Color
- Gray
- Horsepower
- 1/3 HP
- Installation Type
- Wall Mounted
- Material
- Aluminum Steel
- Max CFM
- 1,650 CFM
- Motor Type
- Open Ventilated
- Plug Type
- Hardwire
- RPM
- 1,625 RPM
- Speeds
- Variable
- Style
- Fixed
- Type
- Wall-Mount Fans
Canarm SD120334 Details

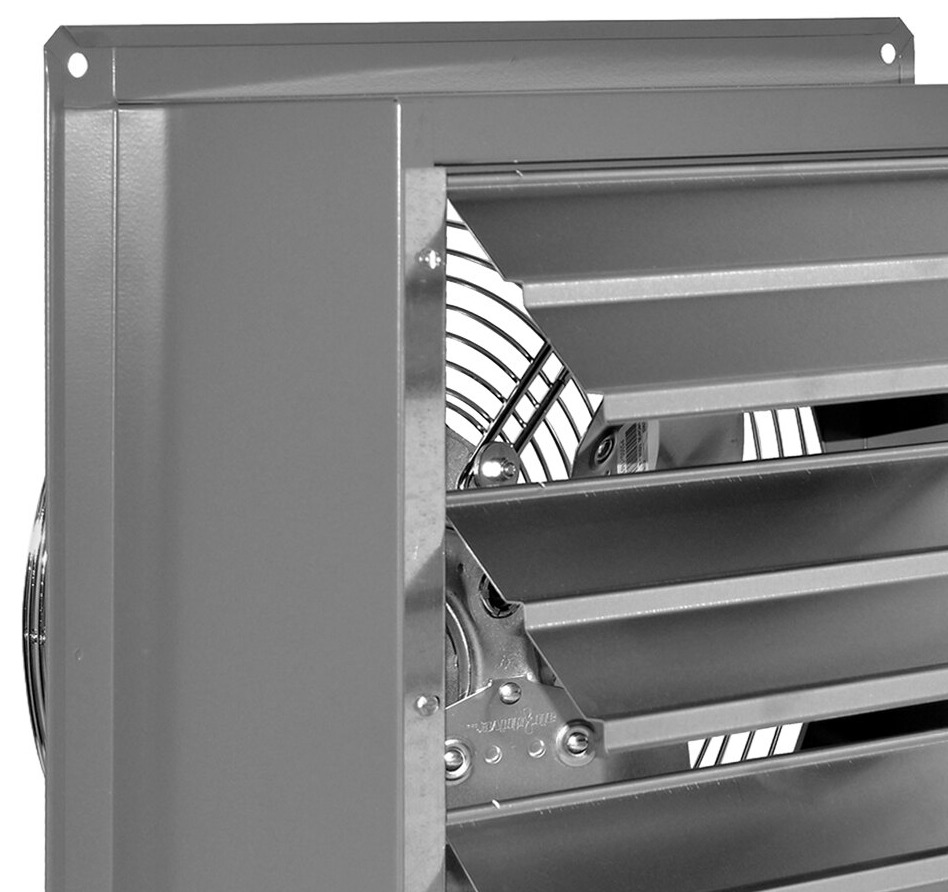

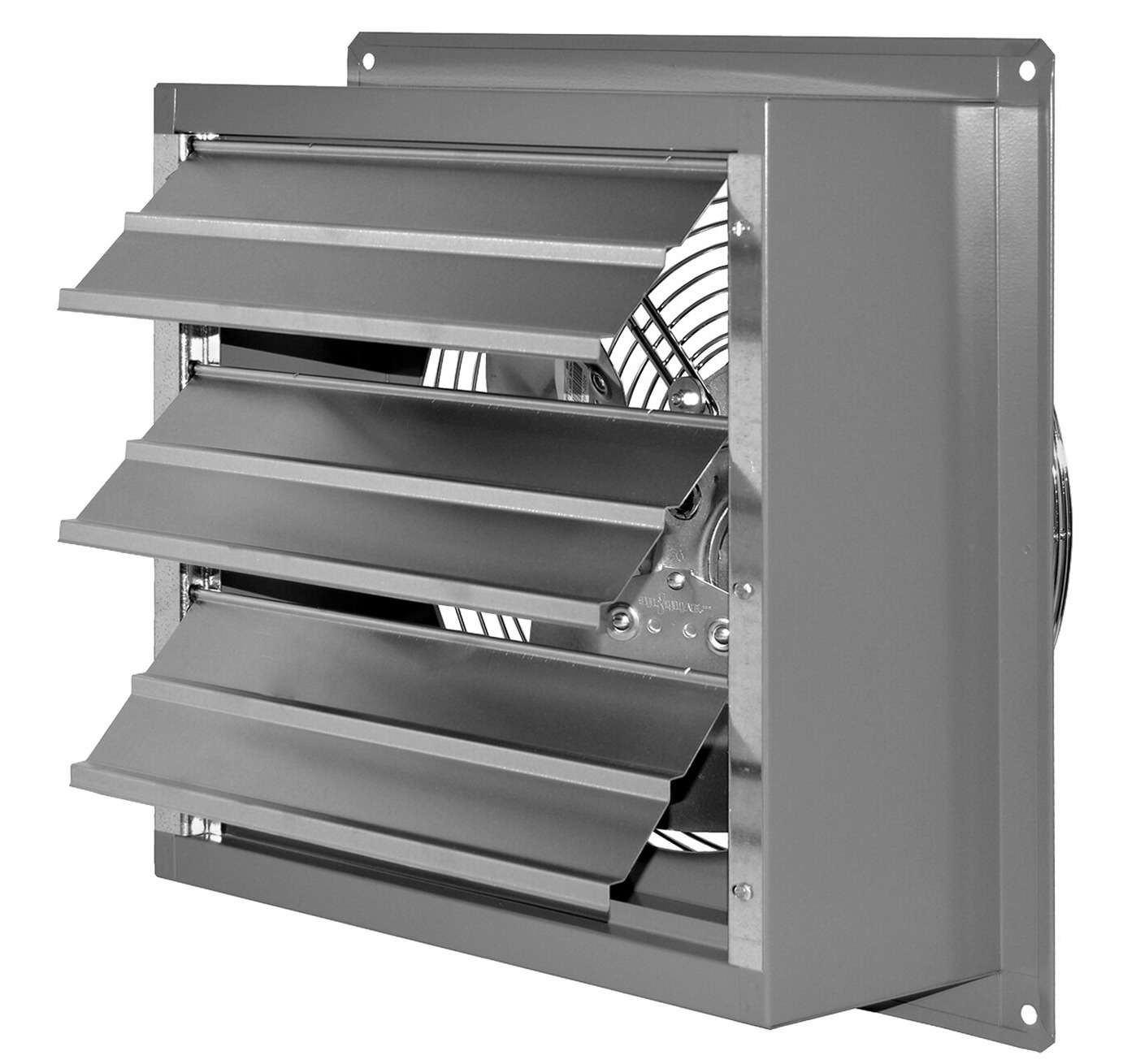

Ideal for industrial and commercial settings, this Canarm 12" variable speed standard wall exhaust fan SD12-EVD provides ventilation to improve air quality in your facility. This rugged fan includes aluminum shutters with nylon bushings, allowing it to be installed from inside the wall without the need for external framing or shutters. For energy-efficient operation, it features a 1/3 hp motor than can reach up to 1650 CFM on the highest setting. Plus, the lower settings provide extra versatility to ensure the fan meets a variety of needs and preferences. This fan uses a dual voltage motor in combination with the blades for excellent energy-efficiency.

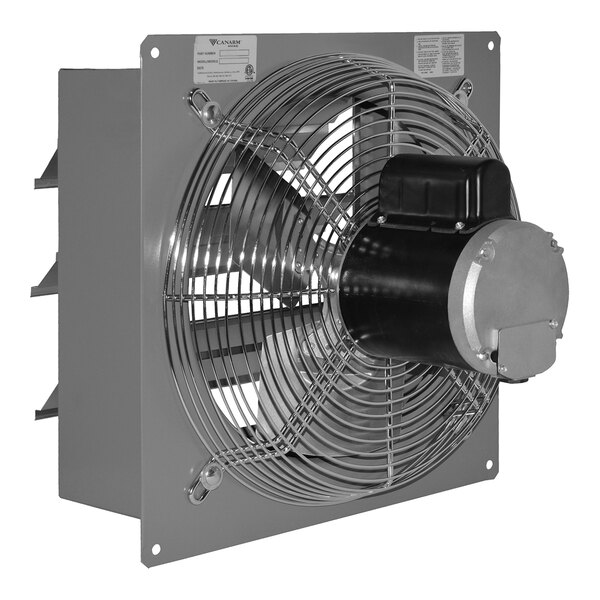

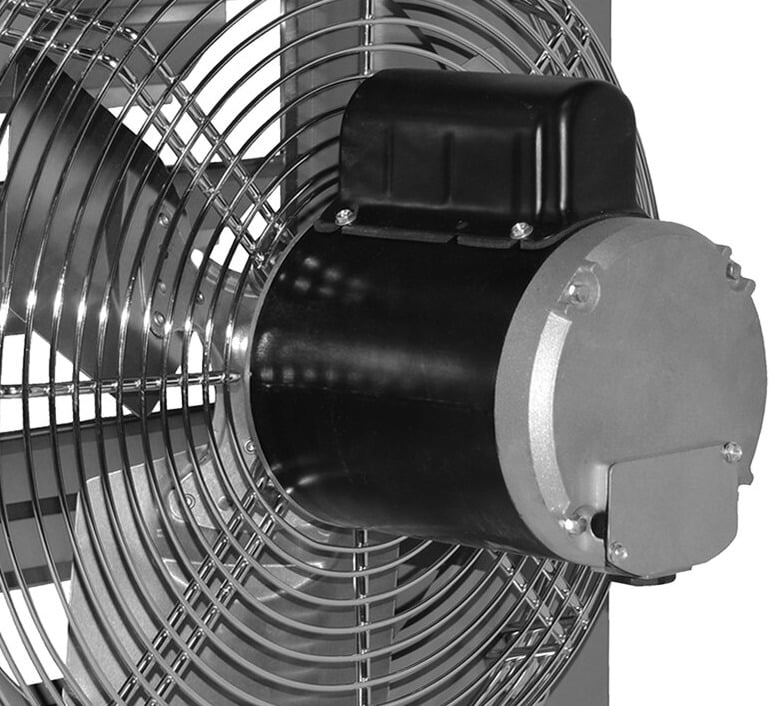

This fan is housed in a sturdy welded steel box with a powder-coated finish for long-lasting use. It includes a durable 12" aluminum blade protected by OSHA-compliant, chrome-plated wire guards on the intake side of the fan. The motor is completely enclosed, and it features thermal overload protection to prevent overheating. This unit requires a 115/230V, 1 phase electrical connection. It ships fully assembled and mounting hardware is included for your convenience.
Overall Dimensions:
Width: 17 1/4"
Depth: 17"
Height: 17 1/4"
Blade Diameter: 12"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Fully Assembled
This item arrives fully assembled, and requires no additional assembly prior to use.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
