Other Available Voltages:
Product Overview
- Single deck design
- Boasts a multiple speed reversing fan for even baking
- Includes a fully insulated cooking chamber
- Standard controls with thermostat range from 140 to 500 degrees Fahrenheit
- Accepts (7) 18" x 26" pans or (14) 12" x 20" pans
- Dual pane tempered viewing window with hinged inner glass
- 240V, 3 phase, 19 kW
- Quantity
- 1/Each
- Shipping Weight
- 820 lb.
- Width
- 42 5/16 Inches
- Depth
- 40 3/16 Inches
- Height
- 58 1/2 Inches
- Amps
- 46 Amps
- Hertz
- 60 Hertz
- Phase
- 3 Phase
- Voltage
- 240 Volts
- Wattage
- 19 Kilowatts
19,000 Watts - Door Type
- Glass
- Features
- Made in America
NSF Listed - Full Sized Food Pan Capacity
- 14
- Full Sized Sheet Pan Capacity
- 7
- Number of Decks
- Single
- Number of Doors
- 1 Door
- Pan Type
- Full Size Food Pans
Full Size Sheet Pans - Plug Type
- Hardwire
- Power Type
- Electric
- Size
- Full Size
- Steam Source
- Boilerless
- Temperature Range
- 140 - 500 Degrees F
- Water Inlet Size
- 3/4 Inches
Customer questions about this product
- Does this Blodgett item require a water filter for proper usage?
- Yes. The quality of water used will greatly impact the performance of your machine. Be sure to use the manufacturer-recommended water filter, as well, or you may void the warranty on your unit.
Blodgett BX-14E SINGLE 240/3 Details

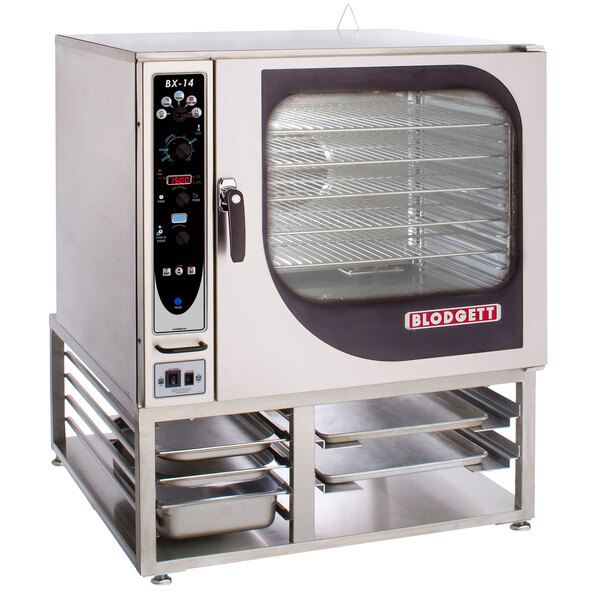

Bake and cook efficiently with this Blodgett BX-14E-240/3 single deck full size boilerless electric combi oven! Thanks to a multiple speed reversing fan, hot air circulates around food in this oven for uniform, even results. Designed without a boiler, this unit injects water right into the heating element for a more efficient steaming process. Because it's boilerless, you'll also reduce the number of maintenance calls required at your establishment.
For added convenience, the easy-to-use manual controls include a thermostat range from 140 to 500 degrees Fahrenheit with a 4" temperature probe so you can cook and bake to your exact specifications. You can select steam, combi, hot air, and cool down options for added cooking flexibility. With an on demand steam feature, you can add steam into the cooking process at any time for optimal baking and roasting results. To help prevent flavor transfer, this unit is equipped with an open vented system so you can confidently cook and bake a variety of dishes without sacrificing quality. A fully insulated cooking chamber provides 19 kW of heating power to keep up with your busy commercial kitchen.
The stainless steel front, sides, and top provide durability, ease of cleaning, and corrosion resistance while a fully welded stainless steel frame supports this unit. Plus, the interior of the oven's cavity includes a 316 stainless steel coved corner liner for easy cleaning. This unit comes with 5 stainless steel wire racks, but it can accommodate up to 7 racks so you can arrange (7) 18" x 26" or (14) 12" x 20" pans to best fit your needs.
Boasting a dual pane tempered viewing window, this unit includes hinged inner glass for easy cleaning. The halogen interior lights also allow for superior visibility so you can keep an eye on your products as they bake.
To clean your oven, fill the included pressure spray bottle with a mild oven detergent and pump the bottle to build up pressure. Then simply spray the oven cavity, close the door, and place the oven in steam mode for 10 minutes. When the steam process is complete, rinse the interior with the attached spray hose to remove food debris and grease build up. This single deck, full size convection oven comes with a floor stand for added storage. A 240V, 3 phase connection is required for operation.
Overall Dimensions:
Left to Right: 42 5/16"
Front to Back: 40 3/16"
Height: 58 1/2"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
ETL US & Canada
This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.
3/4" Water Connection
This unit comes with a 3/4" water connection.
Made in America
This item was made in the United States of America.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Resources and Downloads for
Blodgett BX-14E SINGLE 240/3
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
Please note that this item is subject to an 8% Export Infringement Administration fee for all orders shipping outside of the U.S. RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.Extensive water testing is required in order to maintain product warranty. Free tests are available from the manufacturer.
