Product Overview

  • Heavy-duty steel frame with 1 1/4" schedule 40 tubing
  • Gray powder-coated finish for long-lasting protection
  • Serrated tread provides maximum slip resistance
  • 34" high handrails ensure safe climbing
  • Works with 38 1/2" wide bridge sections (sold separately)
UPC Code:400017135113

Ballymore CS738 Specs

Quantity
2/Set
Shipping Weight
1540 lb.
Height
114 Inches
Base Width
38 1/2 Inches
Step Width
35 1/2 Inches
Base Depth
63 Inches
Step Depth
9 1/2 Inches
Handrail Height
34 Inches
Top Step Height
80 Inches
Capacity
800 lb.
Color
Gray
Features
Chemical Resistant  Made in America  Slip Resistant  Weather Resistant
Finish
Powder-Coated
Ladder Duty Ratings
Type 1AA
Material
Steel
Number of Steps
7 Steps
Step Angle
57 Degrees
Tread Style
Serrated
Type
Stairway Slope Ladders
Weight
680 lb.

Ballymore CS738 Details

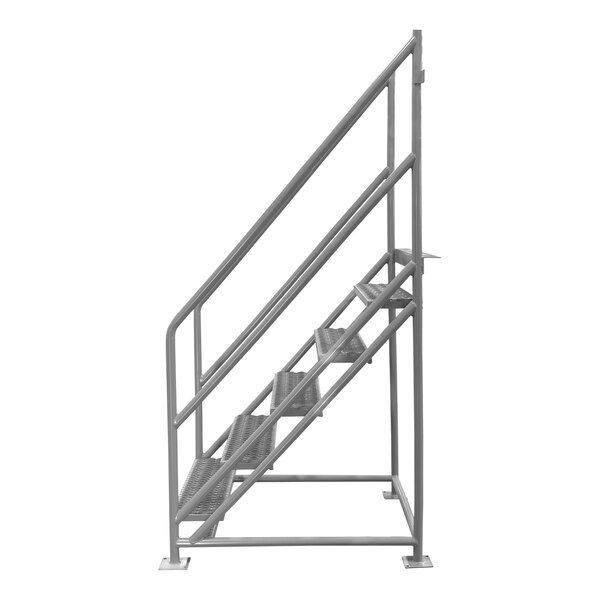

Equip your large commercial space or industrial facility with this Ballymore crossover ladder stair section. For ultimate support, this section's rigid steel frame boasts 1 1/4" schedule 40 pipe tubing. The unit comes with 2 stair sections that connect to each side of your bridge section (sold separately), providing an impressive 800 lb. capacity when fully assembled with the bridge section. It's finished with a sleek gray powder coating to ensure a resilient, long-lasting surface that is highly resistant to scratching, water and chemical corrosion, and weathering. Plus, the stairway slope design allows the user to face outward when descending the ladder, while the 34" high handrails on both sides facilitate safe climbing.

Each section has (7) 35 1/2" wide steps with a heavy-duty serrated tread that's ideal for severe wet and slippery conditions and provides the ultimate in slip resistance and self-cleaning. Each section also has 4 legs with pre-drilled plates for secure bolting to the floor. This item is ideal for warehouses and other places where permanent access at crossover points is necessary. To complete your crossover ladder assembly, it works with any Ballymore 38 1/2" wide bridge section, allowing you to choose from a variety of bridge options to suit your ideal configuration. Provide your staff with safe and reliable access to hard-to-reach spaces with this stair section!

Overall Dimensions:
Base Width: 38 1/2"
Base Depth: 63"
Height: 114"
Step Width: 35 1/2"
Step Depth: 9 1/2"
