Type: Class 1, Division 1
Product Overview
- Thermostatically controlled, heat-traced cable prevents freezing down to -30 degrees Fahrenheit
- Axion MSR eye / face wash head has inverted directional laminar flow
- Axion MSR ABS plastic hydrodynamic shower head evenly distributes water
- Stainless steel pipe frame with galvanized fittings, 3/4" insulation, and UV-protected jacket
- Features a 1 1/4" NPT supply ; 120V
- Quantity
- 1/Each
- Shipping Weight
- 417 lb.
- Width
- 14 3/4 Inches
- Depth
- 34 13/16 Inches
- Height
- 94 Inches
- Color
- Green
- Features
- Made in America
- Flow Rate
- 4 - 20 GPM
- Installation Type
- Floor Mounted
- Material
- ABS Plastic Stainless Steel
- Number of Spray Heads
- 2 Spray Heads
- Plug Type
- Hardwire
- Type
- Emergency Showers Eye and Face Wash Stations
- Water Inlet Size
- 1 1/4 Inches

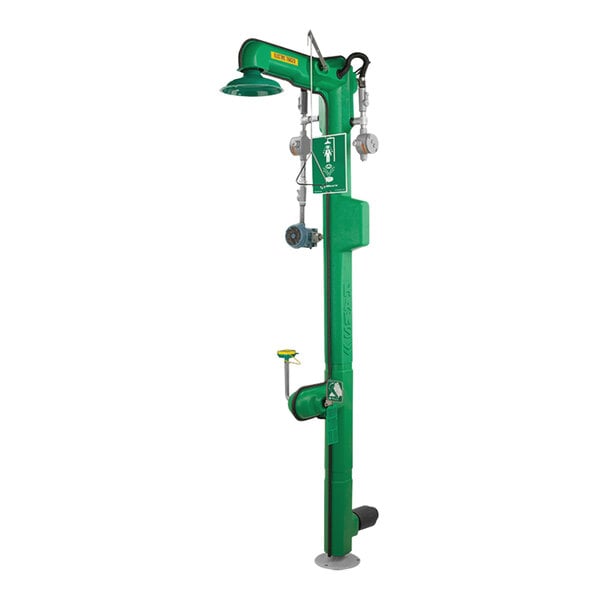

Haws Corporation 8317CTFPC1D1 Details
For added safety and convenience, this Haws Axion MSR 8317CTFPC1D1 cable heated emergency shower with eye / face wash station can perform in extremely cold temperatures. The Axion MSR ABS eye / face wash head features an inverted directional laminar flow and integral 3.7 GPM flow control that helps to flush contaminants away from the face and eyes.
This unit features a thermostatically controlled, heat-traced cable to prevent freezing down to -30 degrees Fahrenheit temperatures. It also has a stainless steel pipe frame with galvanized fittings, 3/4" insulation, and a UV-protected ABS plastic jacket. The stainless steel pipe frame is supported by a cast-iron 9" floor flange.
This unit has a 1 1/4" NPT supply and an automatic thermal actuator bleed valve that opens when the internal water temperature goes below 35 degrees Fahrenheit, preventing freezing. The bleed valve closes when internal temperatures reach 42 degrees Fahrenheit again. This unit requires a 120V electrical connection for operation.
Overall Dimensions:
Width: 14 3/4"
Depth: 34 13/16"
Height: 94"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Can this item fit through a standard height 80" doorway ?
Made in America
This item was made in the United States of America.
CSA, US and Canada
This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.
1 1/4" Water Connection
This unit comes with a 1 1/4" water connection for water supply.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
