Style: 12 Pan | 15" Board | ADA Height
Installation Services
Product Overview
- 2 3/4" casters bring the unit to an ADA-compliant working height
- Top accommodates (12) 1/6 size, 6" deep food pans (sold separately)
- Industry-best 3/4" thick, 15" deep cutting board adds 3 1/2" of additional workspace
- Corrosion-resistant stainless steel exterior and interior; foamed-in-place polyurethane insulation
- Easy-to-read digital temperature control with auto defrost; 115V; R290 refrigerant; 5/6 hp
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
View All Items$374.49/Each
$599.00/Each
$3.99/Each
$6.79/Each
$3.99/Each
$4.49/Each
$5.29/Each
$2.49/Each
- Quantity
- 1/Each
- Shipping Weight
- 573 lb.
- Width
- 70 3/8 Inches
- Depth
- 33 Inches
- Height
- 40 1/8 Inches
- Power Cord Length
- 84 Inches
- Cutting Board Width
- 70 3/8 Inches
- Interior Width
- 66 1/2 Inches
- Nominal Width
- 72 Inches
- Cutting Board Depth
- 15 Inches
- Interior Depth
- 23 1/2 Inches
- Interior Height
- 19 3/4 Inches
- Work Surface Height
- 33 Inches
- Amps
- 7.8 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Wattage
- 780 Watts
- 1/6 Size Pan Capacity
- 12 Pans
- Access Type
- Doors
- BTU (LBP)
- 2,107 BTU
- Capacity
- 19.5 cu. ft.
- Casters
- With Casters
- Color
- Silver
- Compressor Location
- Rear Mounted
- Compressor Style
- Side / Rear Breathing
- Construction
- Stainless Steel
- Cutting Board Thickness
- 3/4 Inch
- Door Style
- Swing
- Door Type
- Solid
- Features
- ADA Compliant Removable Magnetic Door Gaskets
- Horsepower
- 5/6 HP
- Individual Shelf Capacity
- 88 lb.
- Number of Doors
- 3 Doors
- Number of Shelves
- 3 Shelves
- Plug Type
- NEMA 5-15P
- Refrigerant Type
- R-290
- Starting Amps
- 23.4 Amps
- Starting Wattage
- 2,340 Watts
- Style
- ADA Height
- Temperature Range
- 33 - 40 Degrees F
- Top Capacity
- 318 lb.
- Top Type
- Standard Top Workstation Refrigerators
- Type
- Prep Refrigeration
Details

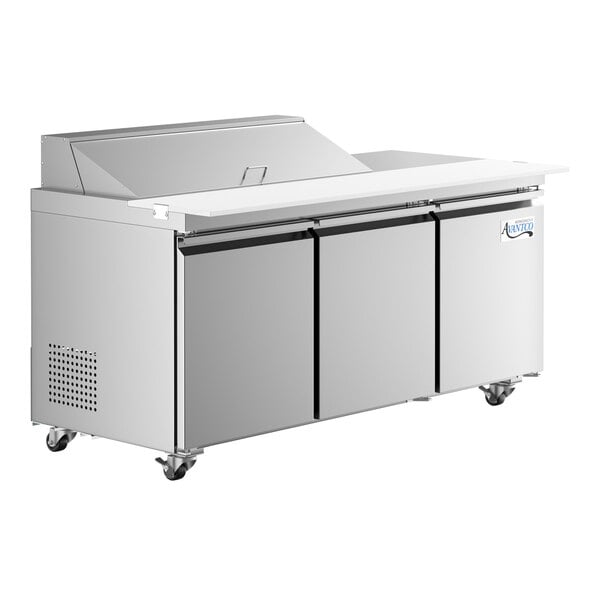

Optimize your back-of-house operations and better keep up with customer demands with this Avantco SS-PT-71-12-AC 70" 3 door stainless steel ADA height refrigerated sandwich prep table with workstation and extra deep cutting board! Whether used in a university, sub shop, or hospital, this ADA height unit is sure to help streamline the sandwich prep process with its convenient features and capacity. This unit has a workstation, allowing users to place condiments, utensils, and even a cash register on the unit without sacrificing cutting board space!
Its top accommodates up to (12) 1/6 size food pans up to 6" deep (sold separately). These are great for holding common sandwich or salad toppings, from eggs and cheese to green pepper or ham. Plus, a lift-up lid encloses the top to maintain proper, food-safe temperatures.
A full-length cutting board, which has an extended 15" depth, is mounted to the table surface, providing a place for slicing ingredients and assembling orders. This industry-best cutting board is 3/4" thick for added durability and reliability. It is built-in to the unit for convenient prep space and can be easily removed for cleaning.

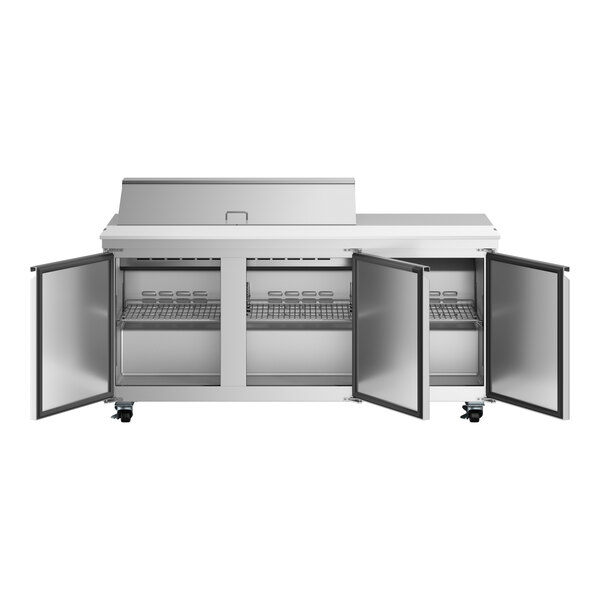

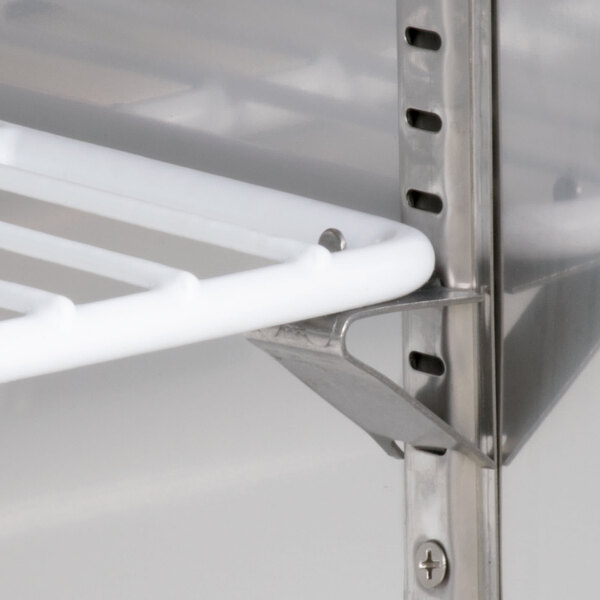

Beneath the workspace is additional storage space. Because it's refrigerated, the space is great for storing back-up ingredients, such as deli meat and cheese, as well as less common toppings. three epoxy-coated steel shelves are included and can each accommodate up to 88 lb. of weight, helping to organize your assorted supplies. The three solid swing doors allow users to quickly grab supplies without interrupting workflow.

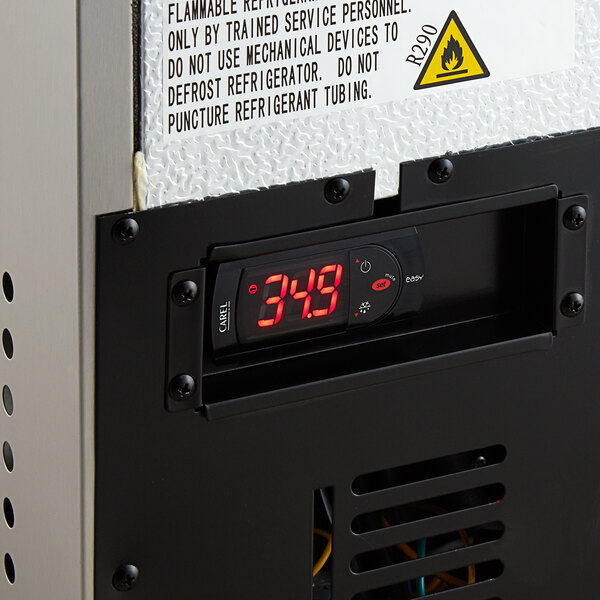

High quality performance is made possible by the unit's 5/6 hp refrigeration system, which maintains temperatures between 33 and 40 degrees Fahrenheit. It does this by circulating R290 refrigerant. This specialized refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3. Plus, the easy-to-read digital temperature control with auto defrost makes adjusting and maintaining specific temperatures easier than ever!
The unit has a corrosion-resistant construction and is designed with commercial use in mind. It features a 430 type stainless steel exterior and a 201 type stainless steel interior, which is fortified with foamed-in-place polyurethane insulation. The insulation also helps to promote proper temperature retention. The 2 3/4" casters make moving simple for easy cleaning and bring the unit to an ADA-compliant working height. For operation, the prep table requires a 115V electrical connection.
Overall Dimensions:
Width: 70 3/8"
Depth: 33"
Height: 40 1/8"
Working Height: 33"
Capacity: 19.5 cu. ft.
Interior Dimensions:
Width: 66 1/2"
Depth: 23 1/2"
Height: 19 3/4"
Please check the Compatibility resource for information on items that work with this product.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Customer questions about this product
Are there any temperature specifications to keep in mind when installing this Avantco prep table?
Can this prep table fit through a narrow doorway or hallway?
Do the ADA casters come installed?
Does Avantco warrant this item for use in a food truck?
How do I correctly install the shelves into this unit?
How do I know if this unit will fit under or match the height of my ADA-height counter?
Counter Height: Work surface is more than 34" high; standard-height unit.
ADA Height: Work surface height is 34" or less; complies with ADA regulations.
Low Profile: Work surface height is less than 32"; designed to fit under most ADA-height counters.
If the unit you are purchasing does not have a flat top, such as a worktop or sandwich/salad prep table, it may affect whether or not it will align with certain countertops. To ensure that the product will meet your needs, please reference the product's literature and specifications.
I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
My unit was delivered, but I don’t see any casters?
What kinds of pans can I use in my Avantco refrigerated prep table?
It is also important to note that mixing and matching pans from different manufacturers may result in the pans not fitting properly. To ensure your pans will fit, refer to the items listed in the product’s "Works With" section. The pan sizes and configurations that each refrigerated prep table accommodates may vary. The items included in the “Works With” section may be used in your model, though configurations combining two or more different pan sizes may not be possible or may require adjustments to be made. The exceptions below apply to the model type indicated:
Mega Top Models – Can fit up to (3) 1/3 size pans from front to back without the use of a middle divider; 1/3 and 1/6 size pans cannot be combined in the same section
Standard Top Models – To use 1/3 size pans, included divider bars must be removed, or narrower divider bars must be used
Pizza Prep Models – While 1/3 size pans are the standard to use in pizza prep models, 1/6 size pans may be used when the orientation is changed
Why are the dimensions in the title different from the actual dimensions in the description?
Why is there a step in the interior of this undercounter unit?
5-15P
This unit comes with a NEMA 5-15P plug.
ETL Sanitation
This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
