Product Overview

  • 4 individual cooking chambers accommodate 1 full size hotel pan each
  • Allows you to simultaneously cook a variety of foods with no flavor transfer
  • Structured Air Technology delivers high-velocity, focused heat for even cooking
  • Programmable touchscreen control with recipe USB port
  • Flexible time, temperature, and fan speed control in each oven chamber; 208-240V, 3 Phase
UPC Code:3311051-2

Alto-Shaam VMCH4H 240 3PH W/PLUG Specs

Quantity
1/Each
Shipping Weight
460 lb.
Width
21 Inches
Depth
39 1/8 Inches
Height
42 5/8 Inches
Interior Width
14 11/16 Inches
Interior Depth
21 Inches
Interior Height
28 3/8 Inches
Phase
3 Phase
Voltage
208/240 Volts
Control Type
Digital
Door Type
Glass
Features
Demo Available  Made in America  Multi-Cook
Full Size Food Pan Capacity
4 Pans
Number of Chambers
1 Chamber
Number of Doors
1 Door
Number of Pans
4 Pans
Pan Type
Full Size Hotel Pans
Plug Type
NEMA 15-50P
Power Type
Electric
Size
1/2 Size
Type
Multi-Cook Ovens

Alto-Shaam VMCH4H 240 3PH W/PLUG Details

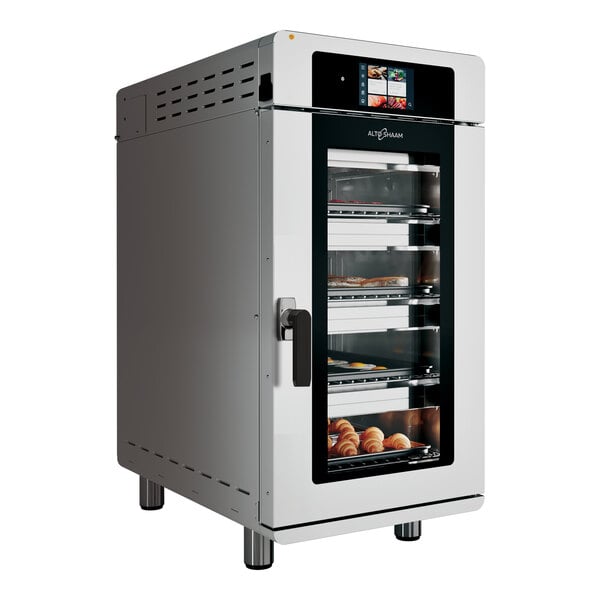

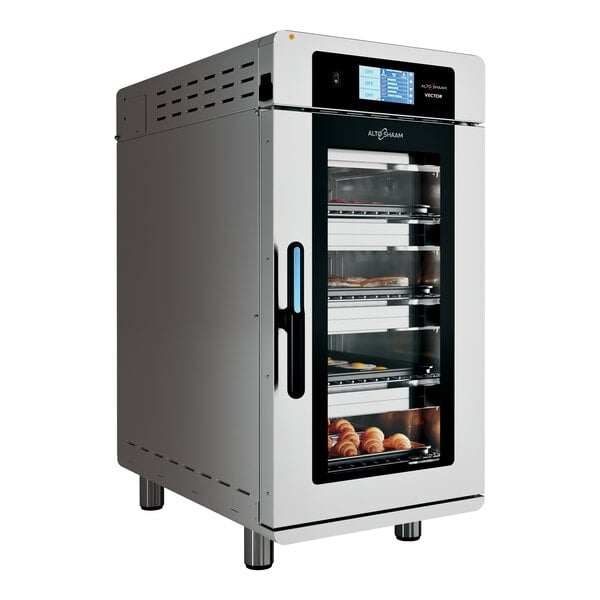

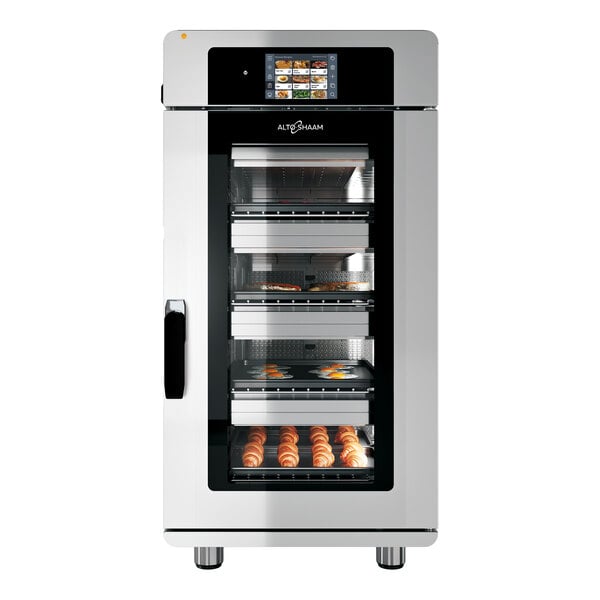

Bring ultimate cooking flexibility to your commercial kitchen with the Alto-Shaam VMC-H4H Vector H Series multi-cook oven! Featuring four cooking chamber zones within one compact unit, this extremely versatile oven allows you to cook four different products simultaneously with no flavor transfer! In fact, you can control the time, temperature, and fan speed for each chamber, so you can gently roast a pan of vegetables while also browning the top of a casserole without fear of burning or undercooking one of the products. 1 full size hotel pan can fit in each chamber.

Thanks to the exclusive Structured Air Technology, this oven delivers high-velocity, focused heat for faster and more even cooking as opposed to traditional convection ovens. You won't have to constantly rotate pans, so you can put your culinary skills to better use in another area of the kitchen. With a ventless catalytic converter, you won't need to take up precious hood space, because the unit can be operated from anywhere in your kitchen. A double pane glass door helps to retain heat, while also providing visibility for you to quickly check on your products as you pass by.

An intuitive touchscreen control pad means that you won't need experienced chefs to cook your signature products. Just pre-set a recipe, save it to the system, and with the touch of a button, you can consistently braise short ribs, bake a pan of potatoes, or melt the cheese in quesadillas. For easy recipe sharing, take advantage of the included USB port. This oven requires a 208-240V, 3 phase electrical connection.

Overall Dimensions:
Width: 21"
Depth: 39 1/8"
Height: 42 5/8"

Interior Dimensions:
Width: 14 11/16"
Depth: 21"
Height: 28 3/8"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Customer questions about this product

What is the standard procedure for Alto-Shaam’s Factory Authorization install process?

To ensure Alto-Shaam’s factory authorized installation and guarantee proper function, please review the Factory Authorized Installation Program form in the resources section.

Will ordering a different hinge location extend the lead time?

Yes, you will find a notation that the left-hinge option has an extended lead time. Ordering a left-side, nonstandard hinge will have a lead time of 4 weeks. A right-side hinge is standard and typically ships within 1 business day.
Ask your own question!
  • Made in America

    Made in America

    This item was made in the United States of America.

  • 15-50P

    15-50P

    This unit comes with a NEMA 15-50P plug.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • UL Classified EPH

    UL Classified EPH

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.
