  • Filters for particulates as small as 0.2 microns in size
  • Filters for chlorine taste and odor, lead, cysts, bacteria, benzene, and p-Dichlorobenzene
  • 6,000 gallon capacity, 12 month cartridge changeout
  • 2.5 GPM flow rate
  • Maximum temperature: 100 degrees Fahrenheit, maximum pressure: 125 psi
UPC Code: 00054007970514
3M Water Filtration Products 5627201 Specs
Width 4 Inches
Height 16 1/4 Inches
Capacity 6,000 Gallons
Filter Type Bacteria / Viruses




Maximum Pressure 125 PSI
Maximum Temperature 100 Degrees F
Micron Rating .2 Microns
NSF Listed Yes
Service Flow Rate 2.5 GPM
Style Sanitary Quick Change
Type Filtration Systems

3M Water Filtration Products 5627201 Details

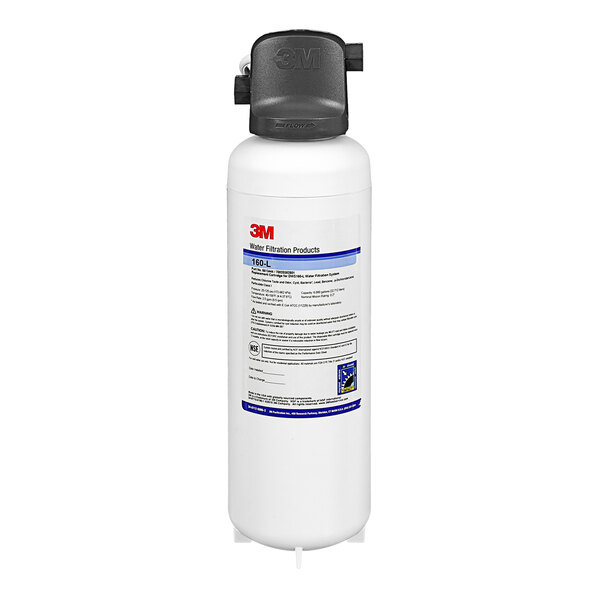

This 3M DWS160-L water filter system is the perfect way to provide top-quality water for your business! This system is designed to filter for bacteria, cysts, particulates, lead, benzene, P-dichlorobenzene, and chlorine taste / odor in your water supply, and is a great choice for water coolers and drinking water fountains. This keeps your water tasting fresh and clean, while also removing potentially harmful contaminants and pathogens as well. It boasts a 0.2 micron rating and a flow rate of 2.5 GPM, while its 12 month / 6,000 gallon capacity changeout time gives you plenty of use between cartridge replacements.

The filter comes with a dual-zone media cartridge that combines a membrane with pre-activated carbon to provide superior throughput and cartridge life. And when it is time to replace the cartridge, the process couldn't be easier thanks to its encapsulated quick-change design. Simply give the cartridge a 1/4 turn to remove, and replace with a new one. The system comes with a head assembly, mounting bracket, and a single filter cartridge. The inlet and outlet connections are 3/8" NPT.

Overall Dimensions:
Width: 4"
Height: 16 1/4"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

Resources and Downloads for
3M Water Filtration Products 5627201

3M DWS160-L Specsheet Specsheet 3M  ESP, BREW, BEV, ICE, HF, DWS, SGP Install Manual Manual Warranty Warranty
