Product Overview

  • Single inlet for 1/2" ball riser
  • 6 3/4" spout (0.35 GPM spray outlet)
  • Infrared proximity sensor allows for hands-free hand washing
  • Chrome-plated brass body
  • Uses 4 AA batteries (sold separately)
UPC Code:889934207293

Zurn Elkay Z6950-XL-S-M-W2 Specs

Quantity
1/Each
Shipping Weight
9 lb.
Spout Length
6 3/4 Inches
Faucet Width
2 1/4 Inches
Battery Type
AA
Faucet Centers
Single
Features
Automatic Shutoff  Hands Free  Motion Sensor
Finish
Chrome
Flow Rate
0.35 GPM
Material
Brass
Mounting Holes Required
1 Mounting Hole
Mounting Style
Deck Mounted
Pressure Rating
10-125 PSI
Spout Clearance
4 1/8 Inches
Spout Type
Gooseneck
Temperature Rating
33-140 Degrees F
Type
Touchless Faucets
Water Inlet Size
1/2 Inches

Zurn Elkay Z6950-XL-S-M-W2 Details

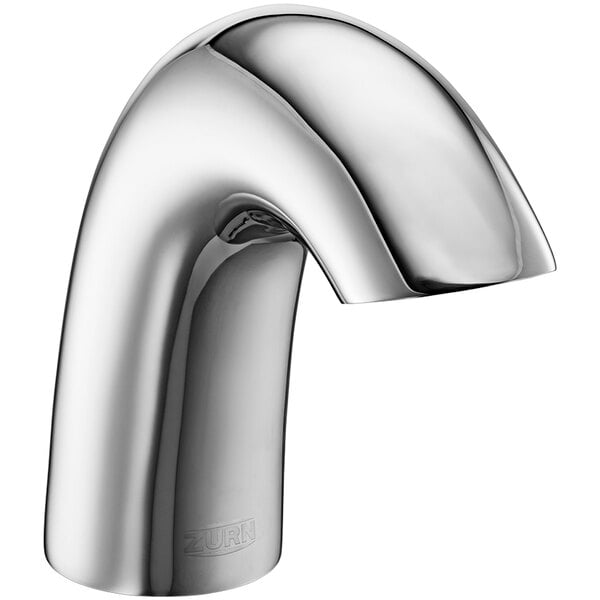

Provide hands-free and more sanitary hand washing with this Zurn Elkay Z6950-XL-S-M-W2 Aqua-FIT Serio deck mount sensor faucet with spout (0.35 GPM), battery-powered! Faucet handles are touched often and by many people, making them a potential threat for the spread of germs. This faucet dispenses water using an infrared proximity sensor that can tell when hands or an object is placed under the spout, completely eliminating contact with the faucet and reducing the risk of cross-contamination. The faucet features a polished and durable chrome-plated brass body and a 4 1/8" tall spout that provides a modern look with a comfortable clearance. This faucet has a spray outlet and a flowrate of 0.35 GPM. The unit in vandal-resistant for high theft areas.

This faucet comes with additional features to help tailor installation to your specific needs, like a line purge and time-out. A metering mode lets you set how long the water will run on each activation, instead of allowing the faucet to run as long as hands are detected under the sensor. The faucet installs using a single inlet for a 1/2" ball riser and is powered by 4 AA batteries (sold separately). An in-line filter within the faucet body helps to ensure that the waterways remain clear and no sediment reaches the outlet. Vandal-resistant, this faucet can also connect to plumbSMART so you can know water consumption by tracking its number of uses, manage maintenance tasks, and receive real-time alerts and insights on your data around the clock.

Overall Dimensions:
Spout Length: 6 3/4"
Faucet Width: 2 1/4"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • Made in America

    Made in America

    This item was made in the United States of America.

  • Lead Free

    Lead Free

    This item's manufacturing process does not use lead as an additive.

  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
