$249.99/Each

Ships free with Plus

Earn up to $7.50 back (750 points)with a Webstaurant Rewards Visa® Credit Card

Size: 3"

Usually Ships in 1-2 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • 9" Dura-Coated cast iron slotted grate
  • 12" diameter Dura-Coated cast iron body
  • 3" no-hub outlet
  • Includes seepage pan, combination membrane flashing clamp / frame, trap primer, and plug
  • Suitable for heavy-duty applications
UPC Code:670240084797

Zurn Elkay Z508-3NH Specs

Quantity
1/Each
Shipping Weight
21 lb.
Height
6 3/4 Inches
Diameter
12 Inches
Outlet Diameter
3 Inches
Features
Made in America
Material
Cast Iron
Style
Cast Iron Grate
Type
Floor Drains

Zurn Elkay Z508-3NH Details

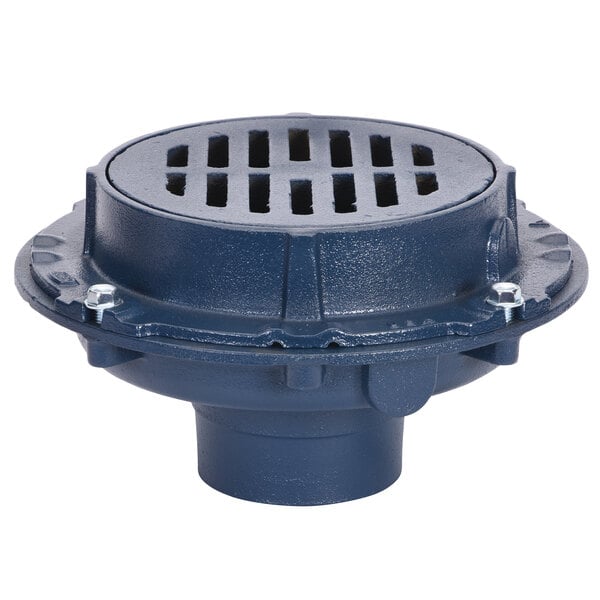

This Zurn Elkay Z508-3NH 9" round floor drain is an excellent choice when you need a heavy-duty drainage solution! It comes with a 9" round top grate made from Dura-Coated cast iron to provide superior durability, while the slotted design allows water to easily pass through and into the drain plumbing. The 12" diameter drain body is also made from Dura-Coated cast iron, and includes a seepage pan, combination membrane flashing clamp / frame, trap primer, and plug. It connects to your facility's pipes with a 3" no-hub outlet.

Overall Dimensions:
Diameter: 12"
Height: 6 3/4"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

Resources and Downloads for
Zurn Elkay Z508-3NH

A PDF viewer is required to view this product's information. Download Adobe Acrobat software
