Other Available Sizes:

  • Prevent infiltration of odors, gases, and pests through floor drains
  • Durable ABS plastic frame with silicone flapper seal and gasket
  • Fits drain pipes 3" in diameter
  • Easy to install - use in new construction or existing commercial buildings
  • Won't impede the flow of water / debris; 34 GPM flow rate
UPC Code: 00864833000121
Shipping:
How to Install Green Drain Products

How to Install Green Drain Products

Hi guys! Today I'll be showing you how to install Green Drain, a waterless trap sealed device for floor drains. I have the GD2, so it's the 2-inch model that will fit into my drain size, and I'll be applying it into my shower drain. This way, I can prevent odors and insects that I've noticed coming up in the past week. One of the first steps you're gonna have to do is remove the floor drain grate from the drain body. Next step is just to remove any debris that may be clogging the drain. Just want to make sure it's pretty much clean before you put the green drain down into it. And in my particular instance, I've recessed the Green Drain about 2 to 4 inches into the drain body. This will allow water to pass through at a higher flow ratio, and prevent water from puddling up. What you're also going to want to do is push the screwdriver down through the Green Drain just to make sure the silicone skirt is seated properly. And then what you can do is measure just to make sure you have the Green Drain seated to an appropriate length. Before buttoning everything back up, turn the water on and test to make sure that water is flowing through at an appropriate rate. Now, after testing everything, the final step, all you're gonna do is put the drain grate back over the drain. And then from here, this pretty much wraps everything up. As you can see, installing a Green Drain is super simple, requiring no water to function properly as opposed to water primers that dry out causing major issues. The Green Drain will shut out toxic gases, odors, insects, and different pathogens and microorganisms that would otherwise potentially come up the drain. This environmentally friendly solution will keep you safe from the many risks that drainage networks pose. Now you know how to install a Green Drain. I hope this helps! Thanks for watching.

Copy and paste the embed code above.

Learn how to install a Green Drain with this simple step-by-step tutorial!

Green Drain Inc GD3 Specs
Application Sinks and Plumbing
Color Black
Features CE Listed

Lead Free
Material ABS Plastic
NSF Listed Yes
Type Trap Seals

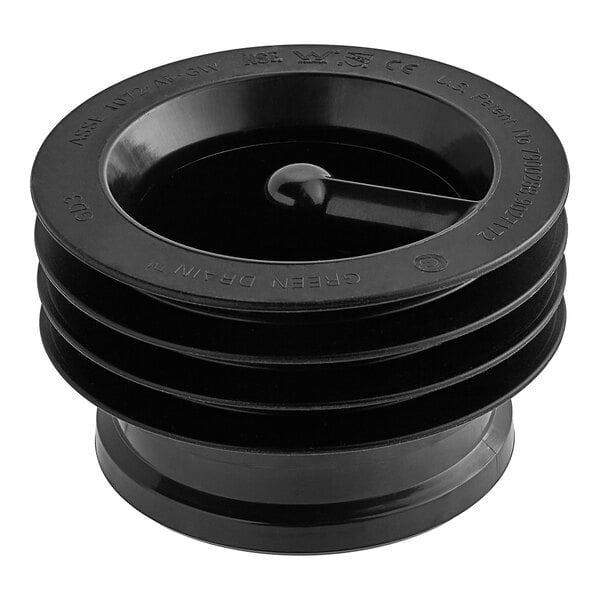

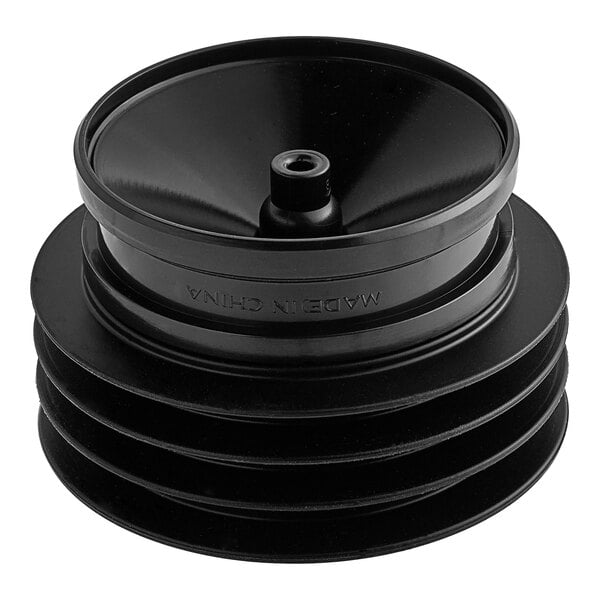

Green Drain Inc GD3 Details

Never fear a dry drain trap again when you use this Green Drain GD3 3" waterless trap seal! This patented seal allows the flow of water and debris out through a floor drain while preventing pathogens, gases, odors, and pests from finding their way back into your commercial building by way of an infrequently-used drain. An innovative solution for industrial and commercial buildings, this waterless trap seal is easy to install and remove when needed, and provides time, water, and cost savings for your business.

This waterless trap seal fits floor drain pipes 3" in diameter and allows water to flow through at a rate of 34 GPM. It is made of durable UV-resistant ABS plastic for long-lasting use, and features a silicone sealing flapper and four flexible sealing ribs that ensure a proper fit. Whether you are outfitting new construction or retrofitting an existing space, this waterless trap seal can be used in either application.

When you want to ensure good indoor air quality and better sanitation in your commercial building, this trap seal with its one way drain valve helps you achieve your goal. It prevents drain odors, sewer / radon gas, or harmful biologic aerosols from infiltrating your building. Plus, it also helps to keep pests out. This is especially important to consider when drains are used infrequently so that the water in the traps evaporates, allowing odors and contaminants to escape.

Overall Dimensions:
Pipe Size: 3"
Height: 2"
Flow Rate: 34 GPM

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • IAPMO R&T Lead-Free Certified

    IAPMO R&T Lead-Free Certified

    This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet the standards set forth in the low lead laws and standards enacted since 2008.

  • IAPMO R&T UPC Certified - USA & Canada

    IAPMO R&T UPC Certified - USA & Canada

    This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA and Canada.

  • HACCP International

    HACCP International

    This item meets the food safety standards imposed by HACCP International.

  • CE Listed

    CE Listed

    This item complies with the standards imposed by the Conformance European (CE), a division of the Intertek group.

  • ASSE Certified

    ASSE Certified

    This product has been certified by ASSE International to meet safety and performance standards for plumbing and mechanical systems

Resources and Downloads for
Green Drain Inc GD3

Specsheet Specsheet Specsheet Specsheet Flyer Brochure Flyer Brochure Green Drain New Flyer Brochure
