Voltage: 240V, 3 Phase

Installation Services

Check if installation is currently available for your area.

Usually Ships in 2-3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Single deck design with 2 interior lights
  • Computer controls with roast and hold cycle, 100 programmable menu items, and digital readouts
  • 5 nickel plated Grab-n-Go racks with 11 positions; full size pans fit left to right or front to back
  • Independently operated doors with double pane windows
  • Porcelain enamel interior with stainless steel exterior
  • Oven cool switch for rapid cool down
  • 1/2 hp two speed blower motor
  • 240V, 12.5 kW, ships 3 phase; field convertible to 1 phase
UPC Code:400012116964

Vulcan VC6EC 240/3 Specs

Quantity
1/Each
Shipping Weight
463 lb.
Width
40 1/4 Inches
Depth
45 1/8 Inches
Height
54 3/4 Inches
Interior Width
29 Inches
Interior Depth
26 1/8 Inches
Interior Height
20 Inches
Hertz
60 Hz
Phase
3 Phase
Voltage
240 Volts
Wattage
12.5 Kilowatts
18 x 26 Pan Capacity
5 Pans
Amps - Per Line
29 - 33
Control Type
Dial
Features
Field-Convertible (Electrical)  Programmable
Horsepower
1/2 HP
Installation Type
Freestanding
Number of Chambers
1 Chamber
Number of Decks
Single
Number of Doors
2 Doors
Number of Racks
5 Racks
Oven Interior Style
Deep Depth
Power Type
Electric
Size
Full Size
Temperature Range
150 - 500 Degrees F

Vulcan VC6EC 240/3 Details

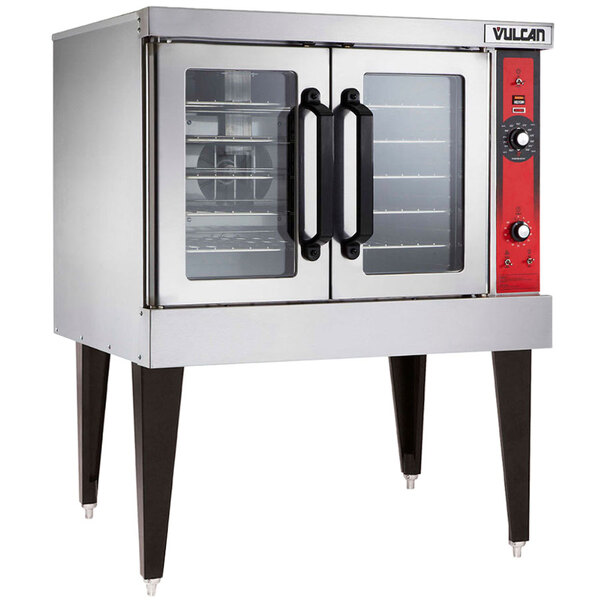

Cooking in your school kitchen or restaurant will be easier than ever with this VC6EC-240/3 single deck full size electric deep depth convection oven. This 240V, 3 phase unit boasts intuitive computer controls with a 150-500 degree Fahrenheit temperature range, as well as a 99 hour timer that can be assigned to each of the individual racks so you can simultaneously cook a variety of different food in one efficient unit. Digital time and temperature readouts make monitoring product a breeze, while 100 programmable menu items help ensure that your diverse menu of appetizers, entrees, and baked goods are consistently prepared no matter who's in the kitchen! For even greater flexibility, this oven has a roast and hold feature that effectively cooks your most popular dishes and then automatically switches to a holding temperature to keep your food hot and safe until serving.

Two lights illuminate the porcelain enamel interior, which is both attractive and easy to clean at the end of a busy day. Five nickel plated Grab-n-Go racks fit into 11 different positions and accommodate full size pans in left to right or front to back orientation for ultimate interior customization. This also allows you to stagger the pan directions for better airflow and more even baking, minimizing the need to turn the pans midway through the baking process! One 1/2 hp two speed fan motor recirculates heated air for fast, even cooking, and the unit features an "oven cool" switch, which is used for rapid cool down to increase efficiency and productivity at your establishment.

Two dual pane thermal glass windows encased by stainless steel door frames help reduce energy consumption and keep the outside glass from getting too hot. The doors are independently operated, so you can conserve energy by only opening one at a time to load and unload products. The stainless steel front, top, and sides ensure your unit is corrosion-resistant and built for long-lasting performance. 23 3/4" painted legs come standard. A 240V electrical connection is required. The unit ships 3 phase, but is field convertible to 1 phase.

Overall Dimensions:
Left to Right: 40 1/4"
Front to Back: 45 1/8"
Height: 54 3/4"

Interior Dimensions:
Left to Right: 29"
Front to Back: 26 1/8"
Height: 20"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I modify this item?

We offer certain optional modifications for this item. If you are interested in more information for modifying this unit, please fill out this form, Special Order Request Form, and a member of our Custom Quote team will be in touch in 1-2 business days!

What is a Grab-n-Go rack?

Vulcan's Grab-N-Go racks are slightly notched in the front for easier pan access. The notch allows operators to reach into the oven and remove a sheet pan without burning their hand on the hot racks.
Ask your own question!
  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • Field Convertible (Electrical)

    Field Convertible (Electrical)

    This equipment’s electrical specifications can be modified in the field during installation by a qualified service technician. Be sure to read item content and literature for the specific details of what voltage and phase configurations are possible.

Need Parts & Accessories?

Show replacement parts and accessories for Vulcan VC6EC 240/3 today!

Resources and Downloads for
Vulcan VC6EC 240/3

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
