Product Overview

  • Space-saving half-size configuration
  • Solid state controls with temperature range of 200-500 degrees Fahrenheit
  • 5 nickel plated oven Grab-n-Go Grab-n-Go racks with 9 rack positions per oven
  • Stainless steel door with double pane window, cool-touch handle, and stainless steel gasket
  • Porcelain-lined steel interior and stainless steel exterior
  • Oven cool switch for rapid cool down
  • 1/2 hp single speed blower motor
  • 240V, 3 phase; 5.5 kW
UPC Code:400012117398

Vulcan ECO2D 240/3 Specs

Quantity
1/Each
Shipping Weight
250 lb.
Width
30 Inches
Depth
28 1/2 Inches
Height
30 5/8 Inches
Interior Width
15 1/4 Inches
Interior Depth
21 Inches
Interior Height
20 Inches
Amps
9 - 20 Amps
Hertz
60 Hertz
Phase
3 Phase
Voltage
240 Volts
Wattage
5.5 Kilowatts
Control Type
Dial
Features
Energy Star Qualified  Made in America  NSF Listed
Horsepower
1/2 HP
Installation Type
Freestanding
Number of Chambers
1 Chamber
Number of Decks
Single
Number of Doors
1 Door
Number of Racks
5 Racks
Oven Interior Style
Standard Depth
Plug Type
Hardwire
Power Type
Electric
Size
Half Size
Temperature Range
200 - 500 Degrees F

Customer questions about this product

Can I modify this item?

We offer certain optional modifications for this item. If you are interested in more information for modifying this unit, please fill out this form, Special Order Request Form, and a member of our Custom Quote team will be in touch in 1-2 business days!

What is a Grab-n-Go rack?

Vulcan's Grab-N-Go racks are slightly notched in the front for easier pan access. The notch allows operators to reach into the oven and remove a sheet pan without burning their hand on the hot racks.
Ask your own question!

Vulcan ECO2D 240/3 Details

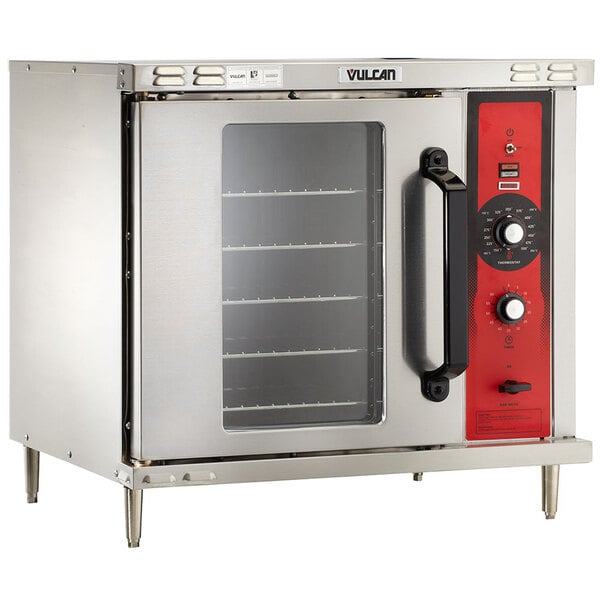

If you want fast, efficient cooking but are dealing with space limitations or don't need the highest levels of output, this Vulcan ECO2D-240/3 half size convection oven is the perfect solution! Boasting all of the great features of a full-size unit in just a fraction of the footprint, this 240V, 3 phase unit features a solid state thermostat with a 60 minute timer for simple, precise control of your cooking operations as well as a temperature range from 200-500 degrees Fahrenheit to accommodate cooking a variety of different foods. A 1/2 hp single speed fan motor recirculates heated air throughout the oven cavity for fast, even cooking, and the unit features an "oven cool" switch that rapidly cools down the unit to increase efficiency and boost productivity at your establishment.

The oven's porcelain-lined steel interior is attractive and extremely simple to clean at the end of a busy day, accommodating five nickel-plated Grab-n-Go racks racks that fit into nine different positions for ultimate interior customization. A dual pane glass window encased by a stainless steel door frame helps reduce energy consumption while, along with the cool-touch handle, simultaneously helping to keep the exterior cool to the touch. The stainless steel front, top, sides, and rear ensure your unit is corrosion-resistant and built for long-lasting performance. 4" chrome plated legs come standard. A 240V, 3 phase electrical connection is required for operation.

Overall Dimensions:
Left to Right: 30"
Front to Back: 28 1/2"
Height: 30 5/8"

Interior Dimensions:
Left to Right: 15 1/4"
Front to Back: 21"
Height: 20"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
