Capacity: 6000 lb.
Product Overview
- High-capacity hydraulic cylinder allows for faster lifting
- Large ram diameter prevents tipping under heavy, angled loads
- 54 1/2" - 83 1/4" length-adjustable legs ensure stability at different boom heights
- Variable boom height from 6 1/4" and 96 9/16" depending on load weight
- 6,000 lb. capacity
Other Products from this Line
- Quantity
- 1/Each
- Shipping Weight
- 340 lb.
- Length
- 54 1/2 Inches
- Width
- 31 3/4 Inches
- Height
- 61 Inches
- Adjustable Height
- Adjustable
- Capacity
- 6,000 lb.
- Caster Style
- 2 Rigid 2 Swivel
- Material
- Steel
- Power Type
- Manual
- Type
- Crain Hoists
Vestil Manufacturing Co EHN-60-T Details

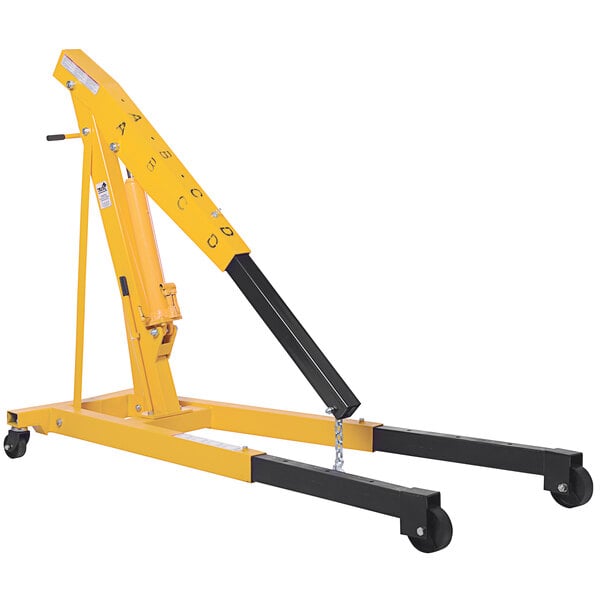

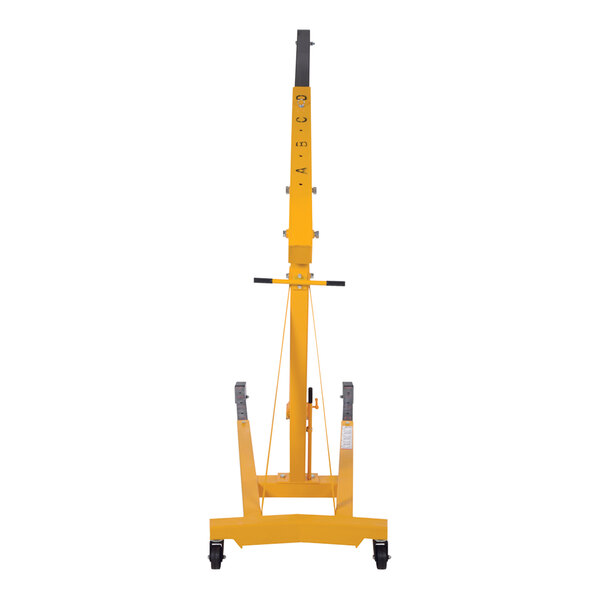

Minimize manual labor requirements and ensure safe lifting and transporting with this Vestil EHN-60-T heavy-duty hydraulic telescoping crane engine hoist - 6,000 lb. capacity. This crane hoist features a high-capacity hydraulic cylinder that allows the operator to quickly and easily lift engines and other heavy objects weighing up to 6,000 lb. The telescoping boom allows for height adjustment to four different lift heights between 6 1/4" and 96 9/16" depending on load weight. At a 2,000 lb. load weight, boom height can be adjusted from 6 1/4" - 96 9/16" with a reach of 76 1/4", while the maximum load weight of 6,000 lb. allows for boom height to be adjusted from 22" - 84" with a reach of 51 7/8".
This unit features a sold steel construction with a powder-coated yellow finish for added resilience and visibility. A large ram diameter helps it to withstand heavy, angled loads without tipping. The legs are equipped with (2) rigid and (2) swivel casters for mobility. Additionally, the unit's telescopic legs can be extended from 54 1/2" - 83 1/4" in length for superior stability.
Overall Dimensions:
Length: 54 1/2"
Width: 31 3/4"
Height: 61"
Capacity: 6,000 lb.
