Product Overview

  • 6 1/8" wide deck-mounted base, 2 mounting holes on 4" centers
  • 10 15/16" tall gooseneck spout, 4 1/8" spread
  • 0.5 GPM vandal-resistant non-aerated spray device
  • Water-resistant control box with hydro-generator power supply; AC adapter and battery backup (4 AA batteries included)
  • Thermostatic mixing valve, (2) 18" stainless steel supply lines (3/8" compression)

Shipping Restrictions

This item cannot ship to AK or HI
UPC Code:671262843256

T&S Brass and Bronze Works EC-3107-VF05THG Specs

Quantity
1/Each
Shipping Weight
6 lb.
Spout Length
4 1/8 Inches
Faucet Width
6 1/8 Inches
Faucet Height
10 15/16 Inches
Battery Type
AA
Faucet Centers
4 Inches
Features
ADA Compliant  Hands Free
Finish
Chrome
Flow Rate
0.5 GPM
Material
Brass
Mounting Holes Required
2 Mounting Holes
Mounting Style
Deck Mounted
Plug Type
NEMA 1-15P
Pressure Rating
125 PSI
Spout Clearance
6 15/16 Inches
Spout Type
Gooseneck
Temperature Rating
140 Degrees F
Type
Touchless Faucets
Water Inlet Size
3/8 Inches

T&S Brass and Bronze Works EC-3107-VF05THG Details

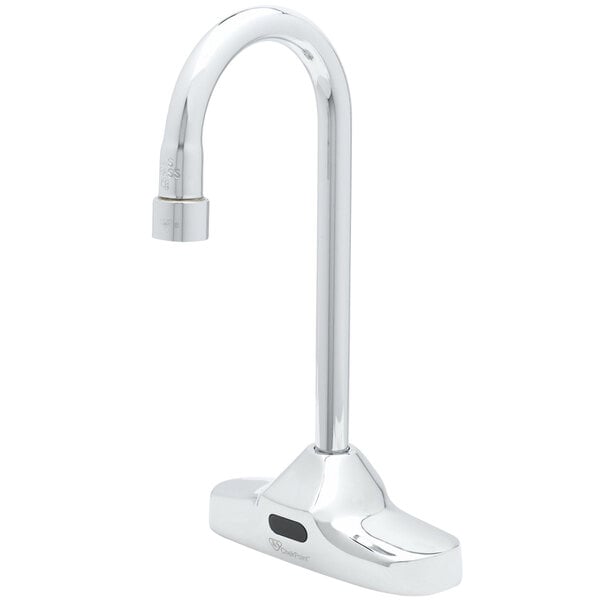

This T&S EC-3107-VF05THG deck-mounted hands-free sensor faucet is a great way to help make your restroom contact-free, improving safety and sanitation! Because it uses an electronic sensor to control the water flow, this model eliminates a key contact point for germs to spread - the faucet handles. The faucet's electronics are housed inside a water-resistant control module, which installs out of the way below the countertop and is powered by an EC-HYDROGEN-LF hydro-generator, which uses the water flowing through the faucet to supply and store its own power. This negates the need to use an AC adapter or batteries, even in the event of a power outage. However, both an adapter and 4 AA batteries are provided for flexibility in installation. The control module can alternatively be hardwired using the terminals on the back.

The 10 15/16" tall gooseneck spout provides an elegant design and ample space for hand-washing, while a 0.5 GPM vandal-resistant non-aerated spray device creates a gentle flow pattern without aerating the stream, which is especially important in applications where contamination is a concern. And since the outlet is vandal-resistant, it's well-suited to high-traffic areas. It installs on a 6 1/8" wide base, and requires 2 mounting holes on 4" centers. An 18" flexible stainless steel water hose and a 24" sensor cable connect the faucet to the control module. A thermostatic mixing valve with integral check valves is included to pre-mix hot and cold water to an ideal temperature for hand-washing, and the thermostatic design of the valve provides more accurate and reliable control than a standard mixing valve. A pair of 18" flexible stainless steel 3/8" compression x 1/2" NPSM supply hoses are included to connect it to your building's water lines.

Overall Dimensions:
Spout Length: 4 1/8"
Faucet Height: 10 15/16"
Faucet Width: 6 1/8"

Due to US DOT shipping regulations, we are unable to ship this product to Alaska, Hawaii, and international destinations. It is also ineligible for next day or second day shipping and cannot be returned. Please contact Customer Solutions prior to placing your order if you have any questions or concerns.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.

  • NSF/ANSI/CAN 372 (Certified by CSA)

    NSF/ANSI/CAN 372 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.

  • 1-15P

    1-15P

    This unit comes with a NEMA 1-15P plug.

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.
