$353.65/Each

Ships free with Plus
Due to a manufacturer's price increase, this price will increase by 5.00% on 01/01/25

Earn up to $10.61 back (1,061 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 2-3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Polished, chrome-plated brass body
  • Convenient, floor-mounted double pedal valve
  • 5 3/4" rigid/swivel gooseneck spout
  • 1.5 GPM vandal-resistant laminar flow device
  • Lock washer provided for rigid application
UPC Code:671262815413

T&S Brass and Bronze Works B-0502-03-VL15 Specs

Quantity
1/Each
Shipping Weight
7.75 lb.
Spout Length
5 3/4 Inches
Faucet Width
2 Inches
Faucet Height
11 7/8 Inches
Faucet Centers
Single
Finish
Chrome
Flow Rate
1.5 GPM
Material
Brass
Mounting Style
Deck Mounted
Pressure Rating
20 - 125 PSI
Spout Clearance
7 7/16 Inches
Spout Type
Gooseneck
Temperature Rating
40 - 140 Degrees F
Type
Deck Mount Spout
Valve Type
Double Foot Pedal
Water Inlet Size
1/2 Inches

T&S Brass and Bronze Works B-0502-03-VL15 Details

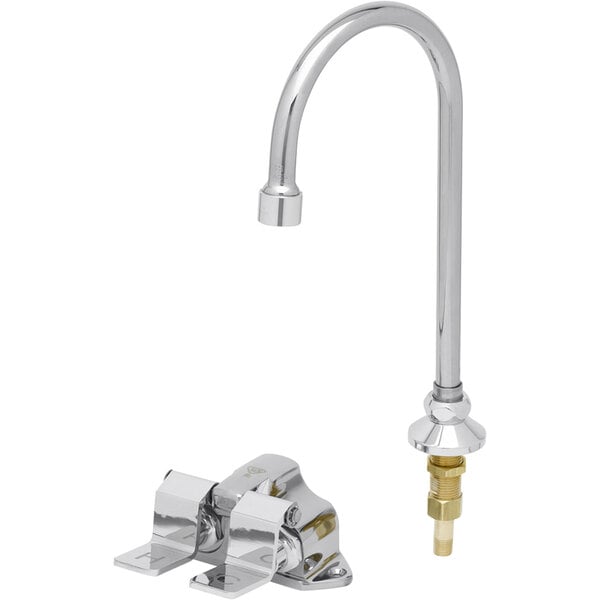

This T&S B-0502-03-VL15 floor mount double pedal valve and deck mount rigid / swivel 5 3/4" dummy gooseneck spout with 1.5 GPM laminar flow device delivers quality and craftsmanship that you can depend on, whether you're installing this product as a brand new water fixture or replacing an old one. With a generous 5 3/4" clearance, the spout leaves plenty of space to place glasses, dishes, and containers, and washing up is simplified thanks to the powerful 1.5 GPM vandal-resistant laminar flow device. It's constructed with a 1/2" NPSM male inlet with a 2" flange, 1/2" NPT check valves, and includes a tailpiece and nut for 1/4" NPT male connection and a lock washer for rigid application.

With a polished, chrome-plated brass construction, both the pedals and the spout are guaranteed to provide long-lasting service and an attractive touch to your establishment. This convenient set allows you to install the deck mount faucet in one location and then place the floor-mounted foot valves exactly where you need them. This promotes improved sanitation procedures, as it removes the potential for the hand-based contamination that can come from touching standard faucet handles.

Overall Dimensions:
Spout Length: 5 3/4"
Faucet Height: 11 7/8"
Faucet Width: 2"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.
Ask your own question!
  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.

  • NSF/ANSI/CAN 372 (Certified by CSA)

    NSF/ANSI/CAN 372 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.

  • EPA WaterSense

    EPA WaterSense

    This item is certified by the EPA's WaterSense program to meet its standards for water use. WaterSense-labeled products are certified to use at least 20 percent less water, save energy, and perform as well as or better than regular models.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF/ANSI 61 & 372

    NSF/ANSI 61 & 372

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
