Name: T&S B-1157 Wall Mounted Workboard Faucet with Spray Valve and 8" Centers - 8" Swing Nozzle
Brand: T&S Brass and Bronze Works
SKU: 510B1157
Price: 482.07 USD
Availability: InStock
Rating: 5.0 (1 reviews)

$482.07/Each

Ships free with Plus

Why do we do this?

Start a Live Chat with a Customer Service rep to receive the price!
Mon - Thur: 5am - 12am EST
Fri: 5am - 8pm EST
Sat & Sun: 9am - 4pm EST.

Earn up to $14.46 back (1,446 points)with a Webstaurant Rewards Visa® Credit Card

Quick Shipping

Usually ships in 1 business dayEstimated shipping time tooltip

Product Overview

8" centers
7 7/8" swing spout
48" hose

UPC Code:671262010306

View all T&S Brass and Bronze Works Wall Mount Faucets

plus
T&S B-1100-K 1/2" NPT Short Elbow Installation Kit
$19.30/Each
plus
Easyflex White PTFE Thread Seal Tape 1/2" x 520"
$1.79/Each
plus
T&S B-1105-KIT Inlet Kit with 24" Hoses and Elbows (1/2" NPT Female x 3/8" Compression)
$60.61/Each

Quantity: 1/Each
Shipping Weight: 9.2 lb.
Hose Length: 48 Inches
Spout Length: 8 Inches
Faucet Width: 12 5/8 Inches
Faucet Height: 5 7/16 Inches
Cartridge Type: Compression
Faucet Centers: 8 Inches
Features: California AB100 Compliant

Made in America

With Sprayer
Finish: Chrome
Flow Rate: 2.2 GPM
Handle Type: Lever
Material: Brass
Mounting Style: Wall Mounted
Mounting Type: Workboard
Pressure Rating: 125 PSI
Spout Clearance: 1 1/4 Inches
Spout Type: Swing
Spray Valve Flow Rate: 2.2 GPM
Temperature Rating: 40 - 140 Degrees Fahrenheit
Type: Faucets
Water Inlet Size: 1/2 Inches

Customer questions about this product

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

Ask your own question!

T&S Brass and Bronze Works B-1157 Details

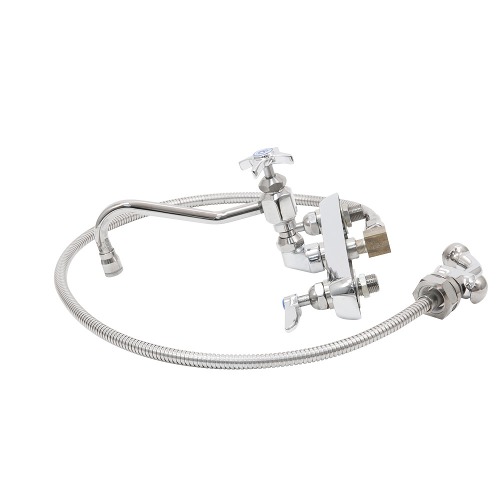

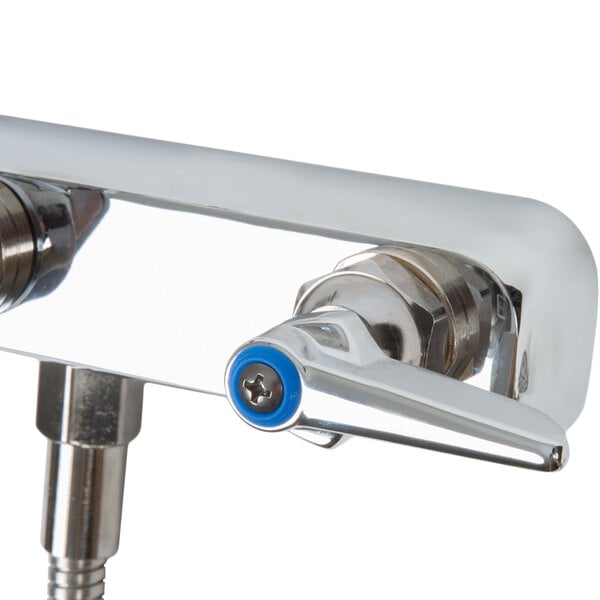

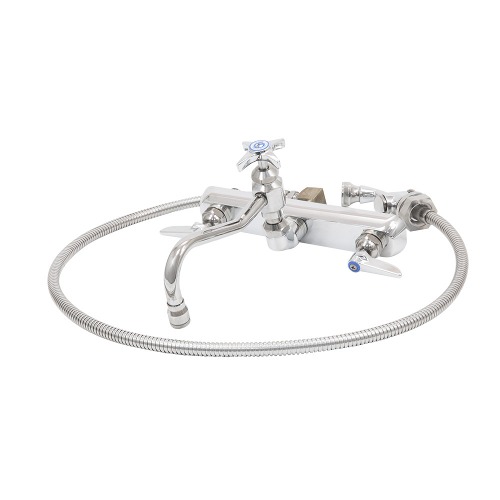

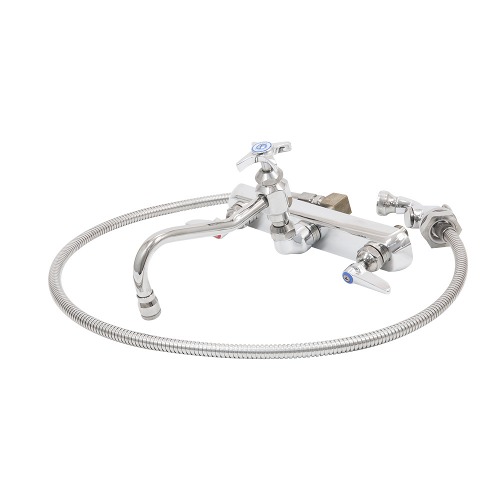

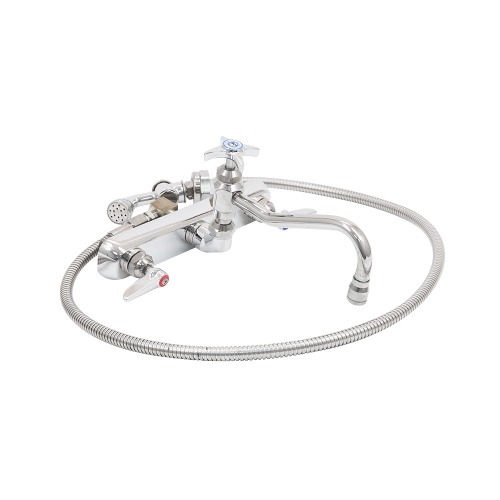

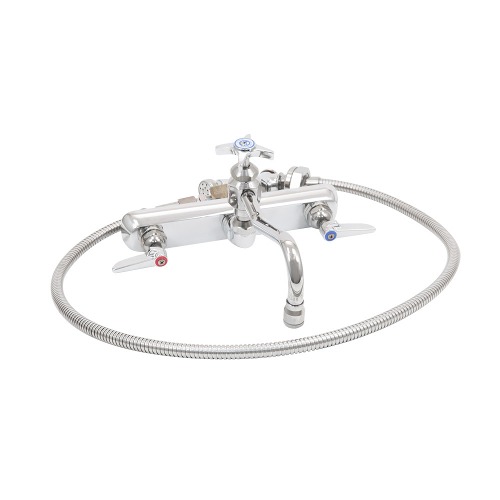

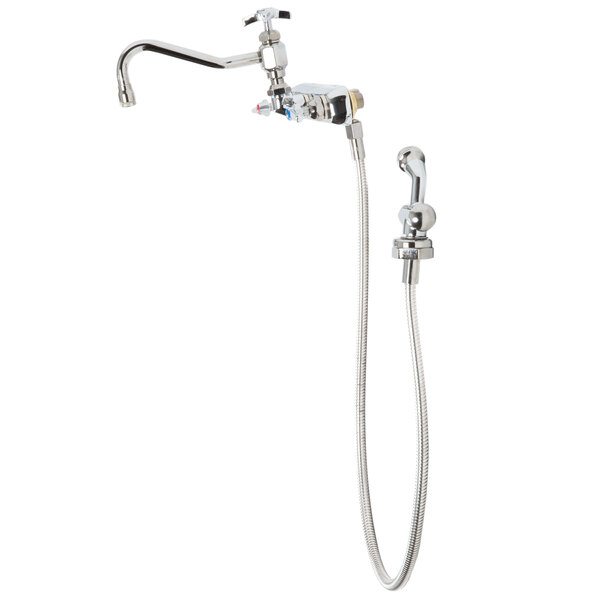

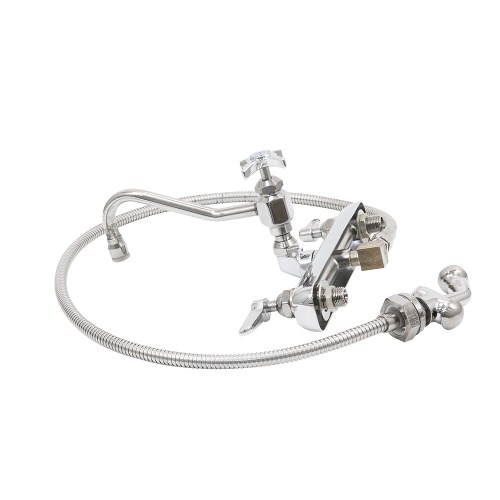

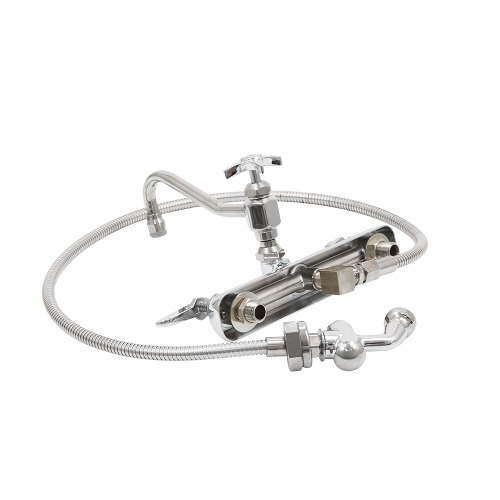

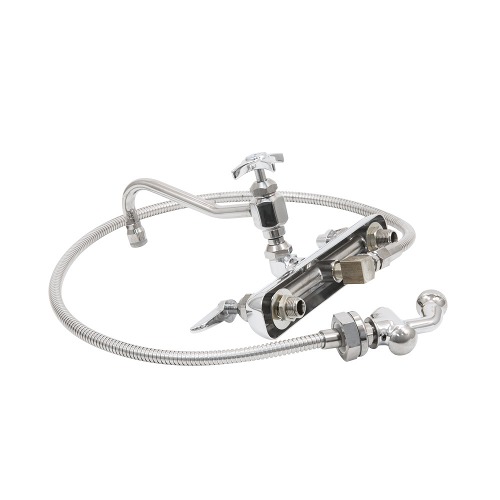

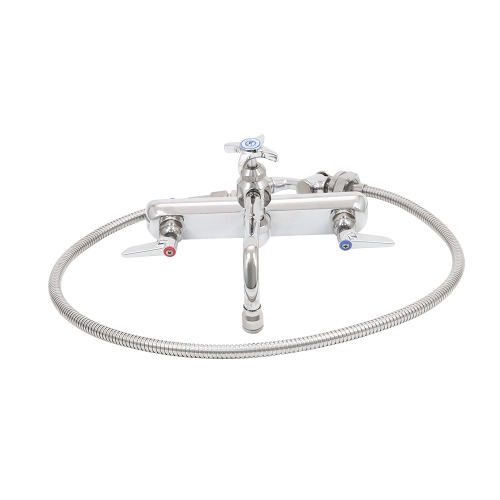

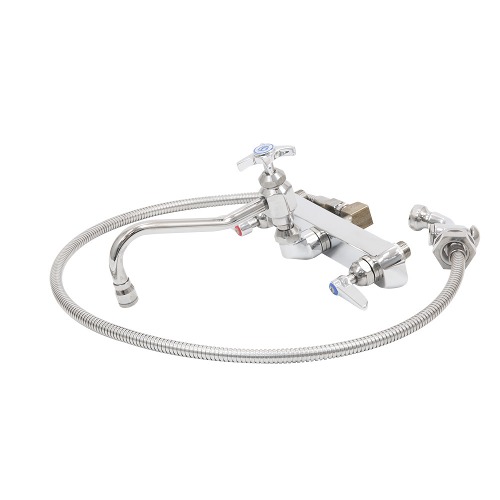

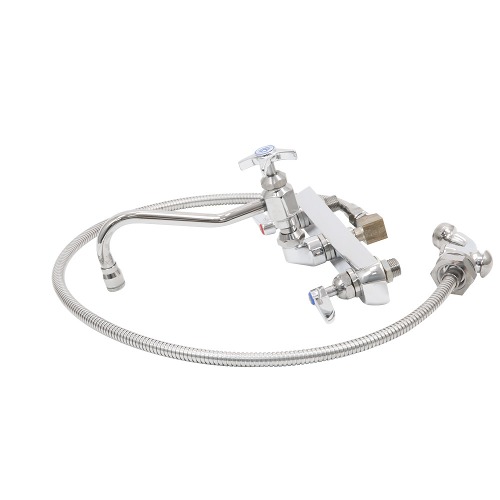

The versatile T&S B-1157 wall mounted workboard faucet features a reliable spray valve with a 48" flexible stainless steel hose to give you a precise rinsing option at your utility or prep sink! The faucet has two lever handles with color coded indexes that control water flow out of the 8" swing nozzle, while a four arm handle mounted above the nozzle controls the spray valve's water pressure.

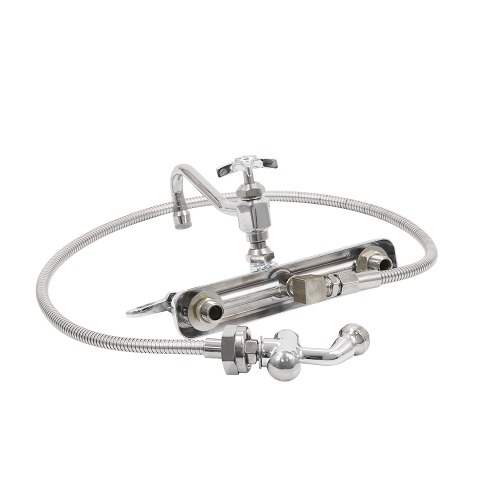

This T&S B-1157 wall mounted workboard faucet has 1/2" NPT male shanks and a tailpiece for an optional 1/4" NPT connection. Installation of the faucet requires holes punched on 8" centers, while mounting the spray valve requires an additional 1 1/2" cutout.

Overall Dimensions:
Spout Length: 8"
Faucet Height: 5 7/16"
Faucet Width: 12 5/8"

Attention CA Residents: Prop 65 WarningThis product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

Made in America
This item was made in the United States of America.
CSA, Canada
This product has been certified by the Canadian Standards Association (CSA) to meet requirements for electrical, plumbing, and/or mechanical products in Canada.
NSF/ANSI/CAN 61 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.
NSF/ANSI/CAN 372 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
