Product Overview

  • 3" centers
  • 002857-40 spray valve
  • 72" hose
  • Vacuum breaker
  • Check valves
UPC Code:671262766869

T&S Brass and Bronze Works B-0512-0101-CV Specs

Shipping Weight
5 lb.
Hose Length
72 Inches
Faucet Width
5 11/16 Inches
Faucet Height
2 1/16 Inches
Cartridge Type
Faucet Centers
3 Inches
Vacuum Breaker
Flow Rate
2.2 GPM
Handle Type
4 Arm
Mounting Style
Deck Mounted
Mounting Type
Pressure Rating
125 PSI
Rough In
Less Than 4 Inches
Spray Valve Flow Rate
2.2 GPM
Without Sprayer
Temperature Rating
40 - 140 Degrees F
Water Inlet Size
1/2 Inches

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.

Ask your own question!

T&S Brass and Bronze Works B-0512-0101-CV Details

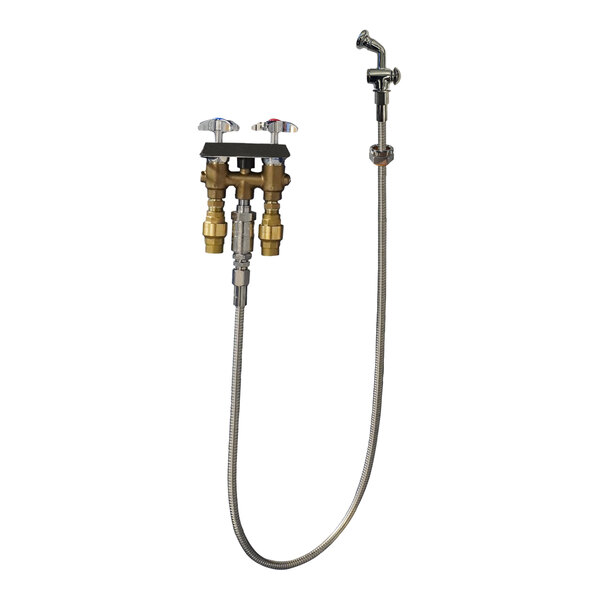

Rinse crumbs and sauce from your dishes before you wash them with the T&S B-0512-0101-CV concealed mixing faucet! This mixing faucet features 3" centers with 3/8" NPT connections for fast and easy installation. Its 002857-40 spray valve provides excellent water flow, and the 72" flex stainless steel hose gives you the versatility you need to clean a variety of items easily. And thanks to the included vacuum breaker and check valves, this mixing faucet is protected against backflow.

Overall Dimensions:
Faucet Height: 2 1/16"
Faucet Width: 5 11/16"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.

  • NSF/ANSI/CAN 372 (Certified by CSA)

    NSF/ANSI/CAN 372 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.

Resources and Downloads for
T&S Brass and Bronze Works B-0512-0101-CV

A PDF viewer is required to view this product's information. Download Adobe Acrobat software
