Name: T&S B-0133-CR-BJ-SK EasyInstall Wall Mount Mixing Faucet Base with 18" Riser and Pre-Rinse Unit with 1.07 GPM Spray Valve
Brand: T&S Brass and Bronze Works
SKU: 510B133CRBJSK
Price: 500.22 USD
Availability: InStock

0:00 / 0:00

$500.22/Each

Ships free with Plus

Why do we do this?

Start a Live Chat with a Customer Service rep to receive the price!
Mon - Thur: 5am - 12am EST
Fri: 5am - 8pm EST
Sat & Sun: 9am - 4pm EST.

Earn up to $15.01 back (1,501 points)with a Webstaurant Rewards Visa® Credit Card

Quick Shipping

Usually ships in 1 business day

Product Overview

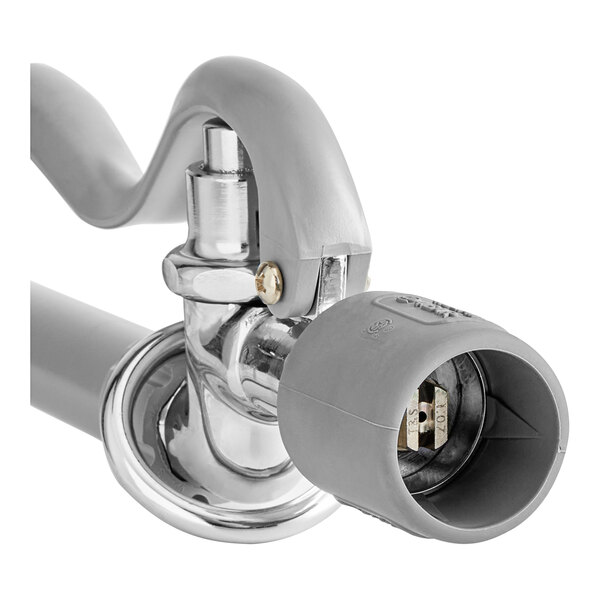

44" flexible hose is complete with a strong 1.07 GPM spray valve
EasyInstall 18" riser allows for quick and easy installation
Built with a polished, chrome-plated brass body
Features quarter-turn Cerama cartridges with check valves
Convenient wall mount configuration

UPC Code:671262812436

View all T&S Brass and Bronze Works Pre-Rinse Faucets

Quantity: 1/Each
Shipping Weight: 12.6 lb.
Hose Length: 44 Inches
Faucet Width: 12 5/8 Inches
Faucet Height: 33 5/16 Inches
Add-On Faucet: None
Cartridge Type: Ceramic
Faucet Centers: 7 3/4 - 8 1/4 Inches
Features: Made in America
Finish: Chrome
Handle Type: Lever
Material: Brass
Mounting Style: Wall Mounted
Mounting Type: Workboard
Pre Rinse Unit Type: Hose and Spring
Spray Valve Flow Rate: 1.07 GPM
Water Inlet Size: 1/2 Inches

T&S Brass and Bronze Works B-0133-CR-BJ-SK Details

This T&S B-0133-CR-BJ-SK EasyInstall wall mount mixing faucet base with 18" riser and pre-rinse unit with 1.07 GPM spray valve offers exceptional cleaning power! The pre-rinse unit features a 44" flexible stainless steel hose for superior durability in any setting, while the 1.07 GPM spray valve is designed to deliver maximum spray power and minimal utility costs. A heat-resistant handle protects the user's hands while the spring holds the hose in place and provide additional support without limiting mobility. It attaches to the base with an 18" riser and a 6" adjustable wall bracket.

With adjustable centers from 7 3/4" to 8 1/4", the chrome-plated brass 8" mixing faucet base features an EasyInstall configuration for simplified setup. It connects using 1/2" NPT female eccentric inlets with 2" flanges and the 1/2" NPT male elbow installation kit. The lever handles are built with color-coded indexes to allow for quick water temperature identification. Additionally, quarter-turn Cerama cartridges with check valves prevent the crossflow of water to keep your unit running properly.

Overall Dimensions:
Faucet Width: 12 5/8"
Faucet Height: 33 5/16"

Attention CA Residents:

Made in America
This item was made in the United States of America.
NSF/ANSI 61 & 372
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
NSF/ANSI/CAN 61 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.
NSF/ANSI/CAN 372 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

Frequently Asked Questions From Customers

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
