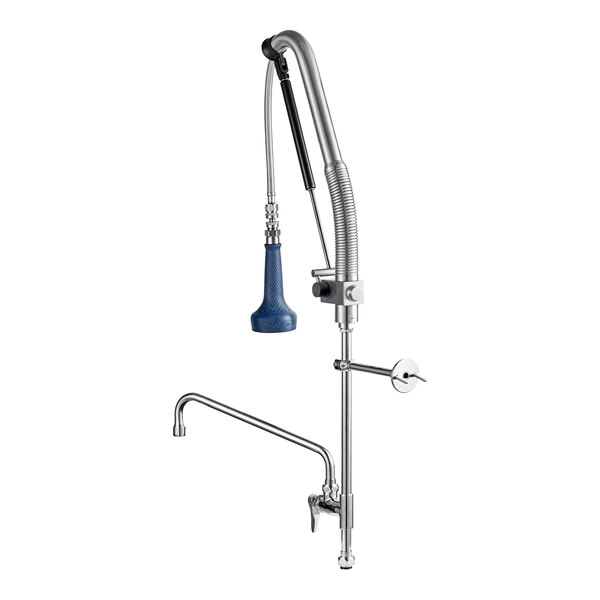

Name: T&S B-0133-12CRB8P-LB EasyInstall Pull-Down Pre-Rinse Unit with Add-On Faucet, 6" Wall Bracket, 12" Rigid Riser, and 12" Swing Nozzle
Brand: T&S Brass and Bronze Works
SKU: 510B0332CRB8PLB
Price: 1139 USD
Availability: LimitedAvailability

0:00 / 0:00

Only

$1,139.00/Each

Ships free with Plus

Due to a manufacturer's price increase, this price will increase by 5.00% on 01/01/25

Earn up to $34.17 back (3,417 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 2-3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

Pull down-activated valve unit with insulated grip handle
Hose fitted with 1.07 GPM spray valve
Features check valve, lever handle, and 12" swing nozzle with stream regulator outlet
Ceramic cartridge and faucet included; temperature range from 40 to 140 degrees Fahrenheit
Equipped with 6" wall bracket

UPC Code:671262914673

View all T&S Brass and Bronze Works Pre-Rinse Faucets

Quantity: 1/Each
Shipping Weight: 15.05 lb.
Hose Length: 30 Inches
Faucet Width: 2 3/4 Inches
Faucet Height: 37 15/16 Inches
Add-On Faucet: 12 Inches
Add-on Flow Rate: 5.35 GPM
Add-On Type: Swing
Cartridge Type: Ceramic
Faucet Centers: Single
Finish: Chrome
Handle Type: Lever
Material: Brass
Mounting Style: Wall Mounted
Mounting Type: Workboard
Pressure Rating: 60 PSI
Spray Valve Flow Rate: 1.07 GPM
Temperature Rating: 40 - 140 Degrees F

T&S Brass and Bronze Works B-0133-12CRB8P-LB Details

This T&S EasyInstall pull-down pre-rinse faucet is the perfect way to remove stubborn soil from dishes and cookware so that they can be thoroughly cleaned! This unit features a pull-down activated stainless steel valve for effortless utilization in any setting, while the 1.07 GPM spray valve is designed to deliver strong spray power and minimal utility costs. An insulated grip handle protects the user as they grip the spray valve. A 12" swing nozzle with a stream regulator outlet provides added versatility by allowing you to fill a sink and perform other functions that a spray valve may not be best-suited for. Plus, an add-on faucet is included to meet all of the needs of your dish station.

This faucet's 6" wall bracket makes it simple to install directly over your sink. It is engineered for maximum durability and uses ceramic cartridges to adjust the flow rate and temperature range, from 40 degrees to 140 degrees Fahrenheit. When the single lever handle of this faucet is turned, the cartridges spin to allow water to pass through. T&S cartridges are designed with efficiency and convenience in mind, allowing you to swap out one piece in the event of a leak, instead of replacing multiple moving parts.

Overall Dimensions:
Faucet Height: 11 9/16"
Add-On Faucet: 12"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.

Ask your own question!

NSF/ANSI/CAN 61 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.
