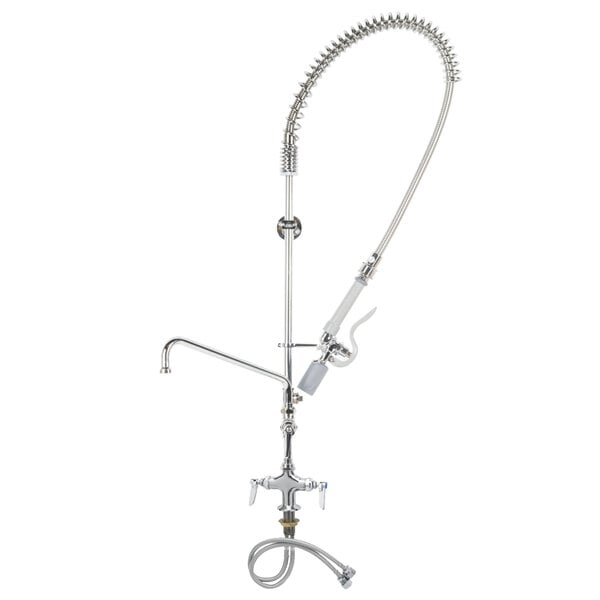

Name: T&S B-0113-14CRQJST EasyInstall Deck Mounted Pre-Rinse Faucet with Flex Inlets, 44" Hose, 24" Riser, 14" Add-On Faucet, and Lever Handles
Brand: T&S Brass and Bronze Works
SKU: 5101314CQJST
Availability: LimitedAvailability

Item number 5101314cqjstMFR number B-0113-14CRQJST

Video is loading

Note: Representative image shown

Ships free with

Free Shipping

$790.07/Each

Start a Live Chat with a Customer Service rep to receive the price!
Mon-Thu 8AM-8PM EST · Fri 8AM-6PM EST · Sat 9AM-4PM EST

Earn up to $23.70 back (2,370 points)
(2,370 points) with a Webstaurant Rewards Visa® Credit Card
Apply, opens link in this tab

Add to Wish List

Usually Ships in 2-3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

3/8" NPT x 24" riser
Includes a 1.07 GPM spray valve
44" flexible stainless steel hose with a spring
Finger hook holds the hose out of the way when not in use
18" flexible stainless steel supply hoses; 14" add-on faucet

UPC Code:400012891793

View All Products From T&S Brass and Bronze Works

View all T&S Brass and Bronze Works Pre-Rinse Faucets

Works With

Easyflex White PTFE Thread Seal Tape 1/2" x 520"
$2.49/Each
Add to Cart

Quantity: 1/Each
Shipping Weight: 17.2 lb.
Hose Length: 44 Inches
Faucet Width: 7 1/4 Inches
Faucet Height: 48 3/16 Inches
Add-On Faucet: 14 Inches
Add-on Flow Rate: 2.2 GPM
Add-On Type: Swing
Cartridge Type: Ceramic
Faucet Centers: Single
Features: Made in America
Finish: Chrome
Handle Type: Lever
Included: Flex Inlets
Material: Brass
Mounting Style: Deck Mounted
Plug Type: NEMA L6-30P
Pre Rinse Unit Type: Hose and Spring
Pressure Rating: 125 PSI
Spray Valve Flow Rate: 1.07 GPM
Temperature Rating: 40 - 140 Degrees F
Type: Pre-Rinse Units
Water Inlet Size: 1/2 Inches

T&S Brass and Bronze Works B-0113-14CRQJST Details

This T&S B-0113-14CRQJST deck mounted pre-rinse faucet features a 44" flex hose and spring design that provides plenty of versatility in a variety of warewashing applications! A 1.07 GPM spray valve makes it easy to clear food debris off of dishes before washing them, and an ergonomic squeeze handle allows easy and intuitive use. Additionally, a 14" add-on swing faucet makes your sink even more versatile, allowing you to switch between the pre-rinse setup and normal faucet depending on what you need!

Designed specifically to make installation as fast and hassle-free as possible, this EasyInstall faucet also comes with 1/2" NPT male elbow inlets on 8" adjustable centers. This model also has efficient quarter-turn cerama cartridges with check valves and lever handles with colored indexes to control the flow of water. Finally, it comes with a 6" wall bracket to keep the unit stable and upright.

Overall Dimensions:
Faucet Height: 48 3/16"
Faucet Width: 7 1/4"
Add-On Faucet: 14"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Made in America
This item was made in the United States of America.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of Use and Privacy Policy.

Frequently Asked Questions From Customers

Can I get a spray valve with a higher flow rate (GPM)?

The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

I have a chemical injection system on my compartment sink. Can I use my pre-rinse faucet to supply water to it?

Yes! Item B-TEE-RGD is a rigid tee assembly that installs easily into an existing T&S pre-rinse faucet (or you can use it on a brand new faucet) and provides you with a means to deliver water to a chemical injection system, or other, similar sink accessories that may require a water supply.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.

Resources and Downloads for T&S Brass and Bronze Works B-0113-14CRQJST

Specsheet

Warranty
