$6,780.00/Each
Ships free with PlusSize: 72 3/8"
Installation Services
Product Overview
- Stainless steel front, top, and sides; aluminum interior with stainless steel floor
- Drip-resistant V edge prevents spills from puddling on the floor
- Each drawer holds two full size food pans (sold separately)
- Full body foamed-in-place insulation
- Uses R-290 refrigerant; 115V, 1/3 hp
- Quantity
- 1/Each
- Shipping Weight
- 470 lb.
- Width
- 72 3/8 Inches
- Depth
- 33 1/8 Inches
- Height
- 25 1/2 Inches
- Amps
- 4.4 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Access Type
- Drawers
- Base Style
- Refrigerator
- Capacity
- 1/6 Size Food Pans 15 cu. ft. Half Size Food Pans lb.
- Compressor Location
- Side Mounted
- Compressor Style
- Side / Rear Breathing
- Construction
- Stainless Steel and Aluminum
- Full Size Food Pan Capacity
- 8 Pans
- Horsepower
- 1/3 HP
- Number of Drawers
- 4 Drawers
- Refrigerant Type
- R-290
- Temperature Range
- 33 - 38 Degrees F
- Top Style
- Marine Edge
- Type
- Chef Bases

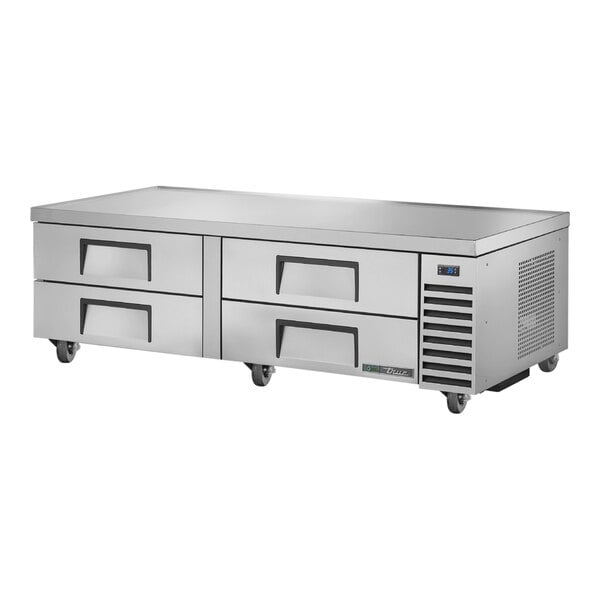

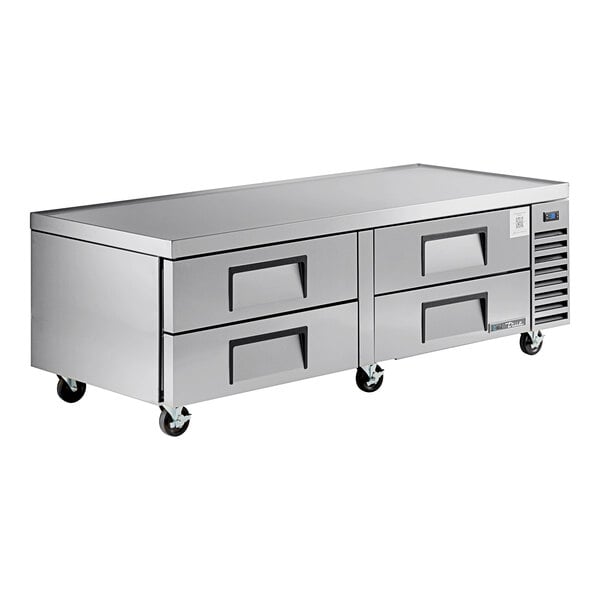

True Refrigeration TRCB-72-HC Details
Optimize the space in your kitchen with this True refrigerated chef base! This base is the perfect stand for your countertop griddle, charbroiler, or range and will help streamline your operation with its convenient features and capacity. With a heavy-duty, reinforced 300 series stainless steel top surface, this unit is designed to hold countertop equipment for easy access and increased storage. Plus, its drip-resistant V edge prevents spills from dripping over the edge, so your floor remains safe and dry.
The refrigerated base is perfect for keeping cold food at safe holding temperatures prior to cooking. Since the base keeps food stored right at the location where it will be cooked, your staff can save time when it comes to locating supplies and reduce the number of trips they need to make to your storage area during a shift. By saving time and reducing labor, this chef base helps your kitchen run more efficiently. The convenient exterior digital temperature display makes it easy to monitor the temperature inside the unit without opening the drawers to check.

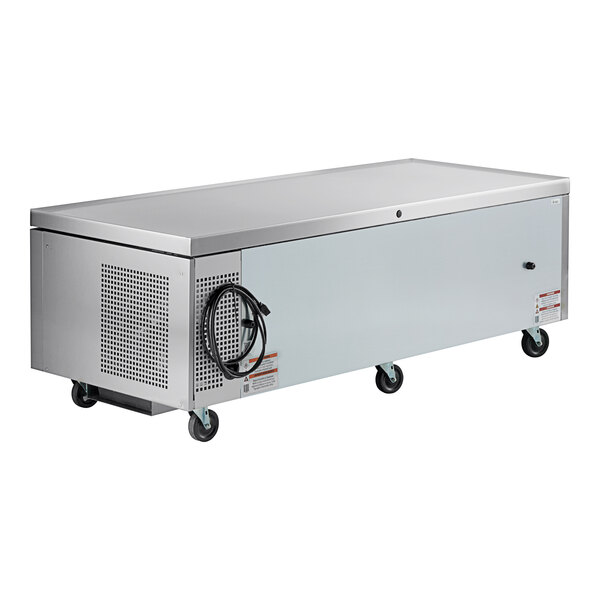

The construction of this unit is designed with commercial use in mind. It features a stainless steel front, top, and sides, as well as a corrosion-resistant GalFan coated steel back. The white aluminum interior with stainless steel floor has coved corners and is fortified with foamed-in-place polyurethane insulation that helps provide structural rigidity and maintain internal temperatures. The insulation also helps to promote proper temperature retention.

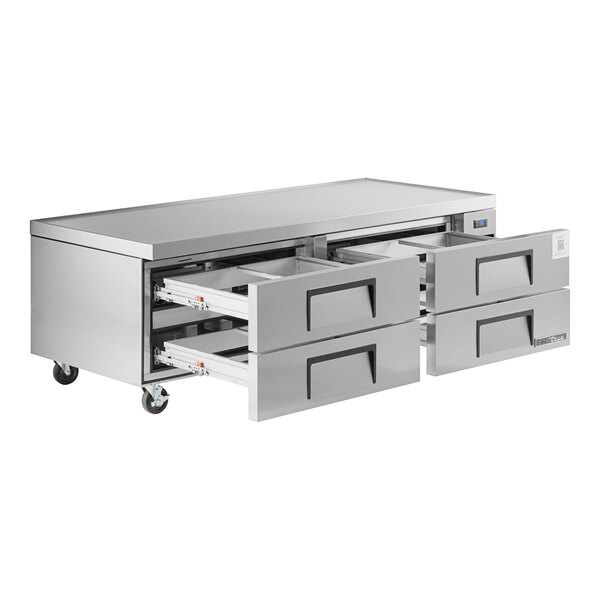

With countertop equipment placed on top of the unit, this chef base provides both space to store product and space to prepare it, all in the same convenient footprint. This unit comes with four separate drawers that can each accommodate two full size food pans for flexible storage (pans sold separately). The rollers, slides, and magnetic gaskets of the drawers are removable without tools. Recessed handles ensure ease of use.
The (6) 4" plate casters aid in maneuverability and make the unit easy to move for cleaning. Plus, the front casters lock to keep the base in place when in use. High-quality performance is made possible by the unit's 1/3 hp refrigeration system, which maintains temperatures between 33 and 38 degrees Fahrenheit using R-290 refrigerant. This specialized refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3. For operation, the chef base requires a 115V electrical connection.
Overall Dimensions:
Width: 72 3/8"
Depth: 33 1/8"
Height: 25 1/2"
Capacity: 15 cu. ft.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Customer questions about this product
I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
What is Galfan coating?
CE Listed
This product complies with the standards imposed by Conformance European (CE).
UL Classified EPH
This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.
5-15P
This unit comes with a NEMA 5-15P plug.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
