Usually Ships in 2-3 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Holds (72) six-packs or (3) 1/2 barrels
  • Stainless steel front and sides with aluminum back and galvanized steel top
  • Double pane thermal swing glass doors and polyurethane insulation reduce energy loss
  • Narrow model includes 4 heavy-duty adjustable PVC-coated shelves
  • Uses R-290 refrigerant; 115V, 1/4 hp
UPC Code:400016644319

True Refrigeration TBB-24GAL-60G-S-HC-LD Specs

Quantity
1/Each
Shipping Weight
340 lb.
Width
59 7/8 Inches
Depth
25 1/4 Inches
Height
34 1/4 Inches
Nominal Depth
Narrow
Amps
2.7 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
Access Type
Doors
Can Capacity
72 Six-Packs
Capacity
16.5 cu. ft.
Casters
Without Casters
Compressor Location
Side Mounted
Compressor Style
Side / Rear Breathing
Construction
Stainless Steel and Aluminum
Countertop Type
Galvanized Steel
Door Style
Swing
Door Type
Glass
Exterior Finish
Stainless Steel / Galvanized Steel
Features
LED Lighting
Hinge Location
Left / Right
Horsepower
1/4 HP
Number of Doors
2 Doors
Number of Kegs
3 Kegs
Number of Shelves
4 Shelves
Refrigerant Type
R-290
Style
1/2 Barrel
Temperature Range
33 - 38 Degrees F
Top Type
Below Counter
Type
Back Bars

True Refrigeration TBB-24GAL-60G-S-HC-LD Details

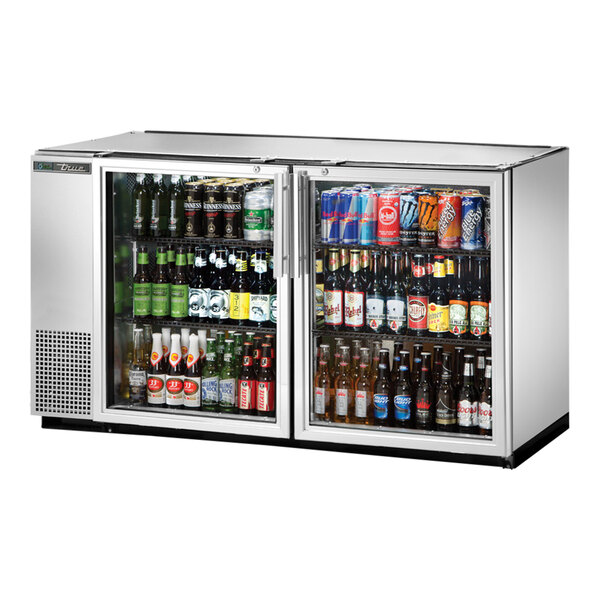

This True back bar cooler can hold up to (72) six-packs of 12 oz. cans, or (3) 1/2 kegs to keep your bar fully stocked on the busiest nights! Designed to accommodate the inevitable spill or leak, the unit's interior features a stainless steel floor, which won't rust or corrode. For additional durability, the unit has a stainless steel front and sides with a matching aluminum back to ensure that it withstands the test of time in your bustling business.

Thanks to its narrow depth, you'll have more working room behind crowded bars. It boasts a durable, galvanized steel countertop with a reinforced lip and door threshold protector to help minimize damage to the cabinet from routine loading and unloading. To show off your selection of beers, sodas, and other beverages, this unit features brilliant LED interior lighting that helps your products look their best while saving energy too. The lights are safety shielded for added peace of mind.

Two low-E double pane swing glass doors permit excellent product visibility so you can maximize merchandising opportunities. It includes four heavy-duty adjustable PVC-coated wire shelves that help you make the most of the interior space. This unit operates with a 1/4 hp refrigeration system that uses R-290 refrigerant, which has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3.

It maintains interior temperatures between 33 and 38 degrees Fahrenheit and has high-density foamed-in-place insulation to help maintain temperatures. The insulation also helps to provide additional structural strength to the cabinet. This unit requires a 115V electrical connection for operation.

Overall Dimensions:
Width: 59 7/8"
Depth: 25 1/4"
Height: 34 1/4"
Capacity: 16.5 cu. ft.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
Ask your own question!
  • UL Classified EPH

    UL Classified EPH

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
