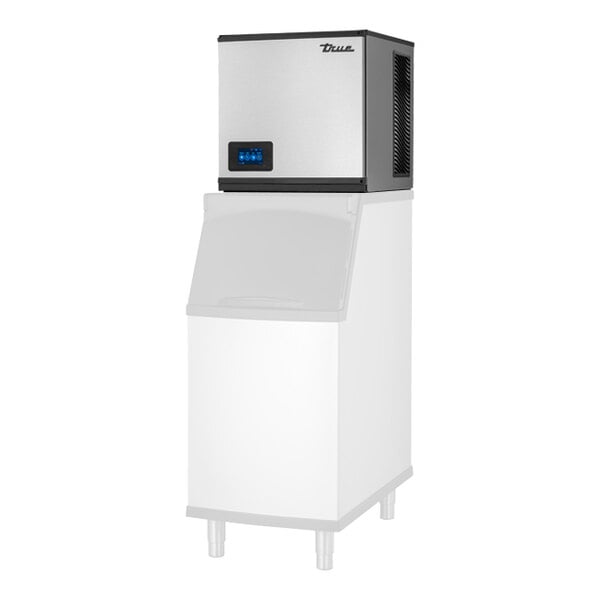

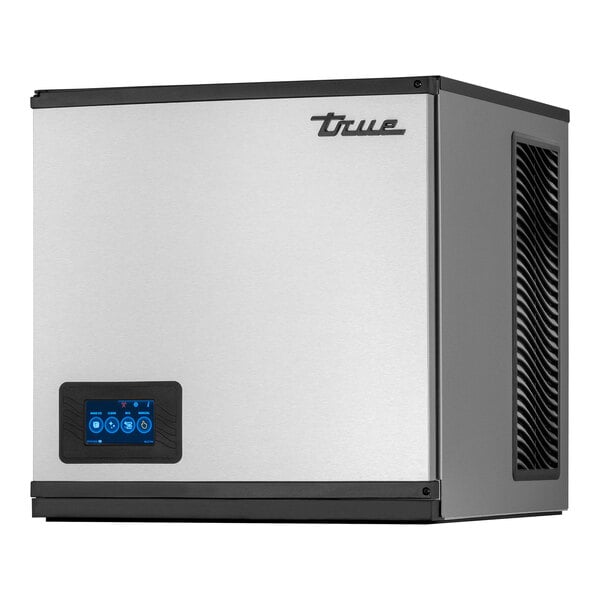

True Ice TCIM-422-FA1-A~T-1 22" Air-Cooled Full Cube Ice Machine with TrueZone Antimicrobial Protection - 447 lb., 115V
Item number 890m422fa1a1MFR number TCIM-422-FA1-A~T-1
Works WithView All Items
$4,311.00/Each
Earn up to $129.33 back (12,933 points)with a Webstaurant Rewards Visa® Credit Card
Usually Ships in 2-3 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Produces up to 447 lb. of full cube ice per day
- 4 5/16" touch screen with remote monitoring capabilities
- One-touch cleaning and TrueGuard / TrueZone antimicrobial protection
- Features advanced diagnostics and programmable ice production
- Time-of-Flight technology monitors ice levels in real time
UPC Code:400017976136
Works With
View All Items- Quantity
- 1/Each
- Shipping Weight
- 165 lb.
- Width
- 22 3/8 Inches
- Depth
- 24 3/4 Inches
- Height
- 22 1/4 Inches
- Amps
- 15 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 447 Pounds
- Ambient Temperature Range
- 35 - 110 Degrees F
- Condenser Type
- Air Cooled
- Features
- Antimicrobial Energy Star Qualified Made in America Programmable Touchscreen Display
- Ice Type
- Full Size Cubes
- Installation Type
- Modular
- Interior Material
- Plastic
- Material
- Aluminum
- Plug Type
- Hardwire
- Refrigerant Type
- R-290
- Type
- Ice Machines
- Water Inlet Size
- 1/2 Inches
- Water Pressure Range
- 20 - 100 PSI
- Water Temperature Range
- 35 - 100 Degrees F
True Ice TCIM-422-FA1-A~T-1 Details
Decrease energy consumption while maximizing ice production with this True Ice ice machine. This reliable machine produces up to 447 lb. of full cube ice per 24 hours. It comes equipped with a large 4 5/16" touch screen remote monitoring capabilities such as built-in alarm and push notifications and remote shutoff. The innovative touch screen and Time-of-Flight technology allow for real-time ice level monitoring, programmable ice production, and ice size adjustments. Plus, it even provides advanced diagnostics whenever you need them. This unit also has password and lock screen settings, load shifting and scheduling, water hardness and filter adjustment, scale adjustment, location-based performance enhancement, and preventative maintenance timers.
This unit is designed with a patented and fully sealed sanitary evaporator with a high-performance copper plate. Its TrueZone growth inhibitor ozone disinfecting system purifies the surrounding air in the ice bin (sold separately) and food zone. This system has food zone pieces that are easily removable without tools, and it uses UV light technology to prevent viruses, bacteria, and yeast buildup to reduce mold, mildew, and fungi. Cleaning is easy with the one-touch cleaning system, and the easily removable air filter with a reverse condenser fan motor (RCU) prevents condenser blockages for reduced maintenance. It is constructed with a corrosion-resistant TrueTech aluminum exterior and a heavy-duty plastic interior with TrueGuard antimicrobial injected into all plastic pieces of the unit.
To ensure that your operation is as energy-efficient as possible, this unit uses R-290 refrigerant that has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3. It operates up to 37% below Energy Star standards to save you utility costs when compared to other machines. The refrigeration system has high- and low-pressure transducers and a micro channel condenser for superior efficiency and gauge-free servicing. Additionally, this unit boasts an ultra-quiet fan and requires a 115V electrical connection. The unit can operate in ambient temperatures of 35-110 degrees Fahrenheit. Pair this ice machine with a compatible True Ice ice storage bin (sold separately) for a fully functional unit.
Overall Dimensions:
Width: 22 3/8"
Depth: 24 3/4"
Height: 22 1/4"
Capacity: 447 lb.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Made in America
This item was made in the United States of America.

Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.

Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.

Antimicrobial
This item is designed to prevent the growth of harmful bacteria.

Kitchen Innovations Award Winner
This item is a recipient of the Kitchen Innovations® Award. Given annually by the National Restaurant Association, this award recognizes items that have made a meaningful impact in the foodservice industry.

UL Certified
This product is certified to applicable standards and requirements by UL Solutions.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Frequently Asked Questions From Customers
Additionally, adapter and deflector kits can be used to match up ice machines with other types of bins / dispensers. When available, literature from the manufacturer regarding bin / dispenser / machine compatibility and adapter / deflector kits is also included on our product pages and is kept as up-to-date as possible. If you have any questions, our Customer Solutions team is also happy to help!
