- Stainless steel exterior and interior
- Pass-through design enables easy loading and unloading from either side
- INTELA-TRAUL microprocessor control system
- Integrated door locks ensure product security
- 6 adjustable wire shelves
- 5/8 hp compressor uses R-450A refrigerant
- 2" thick, non-CFC polyurethane foam insulation
- 6" adjustable legs
Other Products from this Line
- Shipping Weight
- 640 lb.
- 52 1/8 Inches
- 37 15/16 Inches
- 83 1/4 Inches
- Interior Depth
- 27 Inches
- Interior Height
- 57 5/8 Inches
- 8.6 Amps
- 60 Hertz
- 1 Phase
- 115 Volts
- 48.3 cu. ft.
- Compressor Location
- Top Mounted
- All Stainless Steel
- Door Style
- Door Type
- Dutch Half Doors
- Without Dutch Half Doors
- Energy Star Qualified
Made in America
- 5/8 HP
- Number of Doors
- 4 Doors
- Number of Shelves
- 6 Shelves
- Plug Type
- NEMA 5-15P
- Refrigerant Type
- Temperature Range
- 34 - 38 Degrees F
Customer questions about this product
How many wire shelves come with this unit?
This unit comes standard with three wire shelves per section. Please consult the Shelving Options sheet for more information, or contact our Special Orders department for additional shelving and tray slide options.
Can this item fit through a standard height 80" doorway ?
Due to the height of this item, it may not be able to fit through a standard 80" tall doorway when standing upright. Please consider the best means of entry before purchasing, or measure your entryway to ensure that you will be able to bring your order inside if the item cannot be carried on its side.

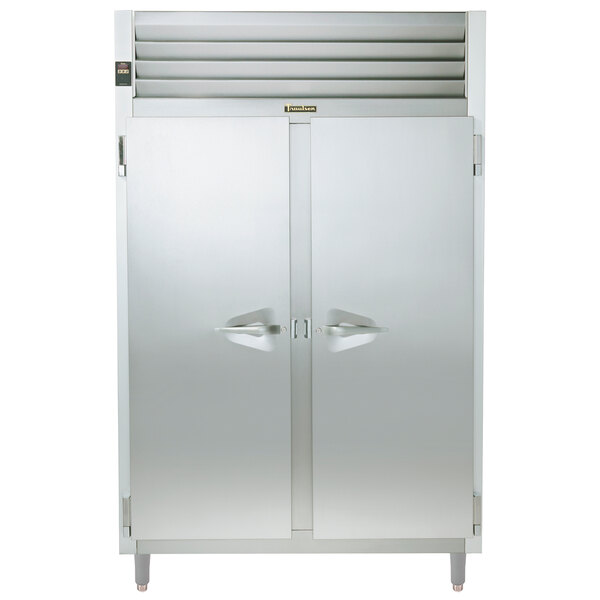

Traulsen RHT232NPUT-FHS Details
The Traulsen RHT232NPUT-FHS stainless steel two section 48.3 cu. ft. solid door narrow pass-through refrigerator uses its INTELA-TRAUL microprocessor controls to deliver unparalleled accuracy and performance for your commercial kitchen. As the industry's most advanced technology for controlling and monitoring temperatures, the easy-to-use INTELA-TRAUL controls provide HACCP temperature monitoring and are even NAFEM Data Protocol compliant to deliver the results you expect for years to come.
This "N-Width" double door pass-through refrigerator is narrower than Traulsen's standard "W-Width" series, but still offers plenty of storage space for a narrow model; its doors are wide enough to accept 18" x 26" sheet pans. As part of Traulsen's Specification Line series, it boasts an all stainless steel construction that will stand up to the demands of your busy kitchen.
This narrow-width refrigerator conveniently connects your kitchen and serving areas, as its pass-through doors allow your kitchen staff to place dishes inside from one end while servers come to retrieve them from the other. For durability and outstanding temperature preservation, the removable vinyl magnetic door gaskets are protected by a metal door pan. The doors also include a stay-open feature when opened past 120 degrees. Its interior comes with automatic incandescent lighting, and six adjustable wire shelves capable of supporting 225 lb. each.
The top mounted 5/8 hp compressor, environmentally friendly R-450A refrigerant and high density, foamed-in-place insulation ensure outstanding temperature preservation and efficiency. Its top mounted design prevents dust, food, and spills from damaging the compressor's fan intake.
Width: 52 1/8"
Depth: 37 15/16"
Height: 83 1/4"
Height: 57 5/8"
Capacity: 48.3 cu. ft.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
This unit comes with a NEMA 5-15P plug.
Made in America
This item was made in the United States of America.
UL US & Canada
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in the United States of America and Canada.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Resources and Downloads for
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Note: Traulsen equipment has a 3 year parts and labor warranty. Traulsen compressors have a 5 year warranty. RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
