$6,664.32/Each

Ships free with Plus

Contact us for pricing

Call 717-392-7472 (Mon-Thur 24 Hours, Fri 12AM-8PM EST
Sat & Sun: 9AM-4PM EST)

  • Stainless steel front and door with anodized aluminum interior
  • Efficient pass-thru design
  • Four right-hinged solid doors with stay-open feature
  • Temperature range: 33 to 38 degrees Fahrenheit
  • Incandescent interior lighting
  • Top-mounted 1/3 hp compressor
  • (4) 6" heavy-duty casters, including two with brakes
  • Uses R-450A refrigerant
Shipping:

You May Also Need

Traulsen G Series Airflow
Traulsen: How to Install Universal Trayslides on G Series 2-Section

Traulsen: How to Install Universal Trayslides on G Series 2-Section

Universal Trayslides: How to Install on G-Series 2-Section. Step 1: Label the top side of each Pilaster. The top should have the smaller gap from end to first cut out. Step 2: Remove the Loadsure Guard (duct). Using a flat head screwdriver, pop out the plugs to reveal the screw holes. Step 3: Install the outside panel pilasters (Part # 342-60030-00) with 6 thumb screws each. Step 4: Install the other Pilasters in the same fashion. Back left Pilaster (Part # 342-60033-00). Front left Pilaster (Part # 342-60031-00). Step 5: Begin installing the Trayslides from bottom to top. (Part # 701-600392-00). Step 6: Test the fit to make sure that the Pilasters and Trayslides have been installed level.

Copy and paste the embed code above.

Watch this video to learn how to install universal Traulsen Trayslides on G Series 2-Section.

Traulsen: How to Install #4 Trayslides on G Series 2-Section

Traulsen: How to Install #4 Trayslides on G Series 2-Section

#4 Trayslides: How to Install on G-Series 2-Section. Step 1: Label the top side of each Pilaster. The top should have the smaller gap from end to first cut out. Step 2: Remove the Loadsure Guard (duct). Using a flat head screwdriver, pop out the plugs to reveal the screw holes. Step 3: Install the outside panel pilasters (Part # 342-6026-00) with 6 thumb screws each. Step 4: Install the other Pilasters in the same fashion. Back left Pilaster (Part # 340-60034-00). Front left Pilaster (Part # 342-60032-00). Step 5: Begin installing the Trayslides from bottom to top. (Part # 701-040842-00). Step 6: Test the fit to make sure that the Pilasters and Trayslides have been installed level.

Copy and paste the embed code above.

Watch this video to learn how to install #4 Traulsen Trayslides on G Series 2-Section.

Traulsen: How to Install #1 Trayslides on G Series 2-Section

Traulsen: How to Install #1 Trayslides on G Series 2-Section

#1 Trayslides: How to Install on G-Series 2-Section. Step 1: Label the top side of each Pilaster. The top should have the smaller gap from end to first cut out. Step 2: Remove the Loadsure Guard (duct). Using a flat head screwdriver, pop out the plugs to reveal the screw holes. Step 3: Install the outside panel pilasters (Part # 342-6026-00) with 6 thumb screws each. Step 4: Install the other Pilasters in the same fashion. Back left Pilaster (Part # 340-60034-00). Front left Pilaster (Part # 342-60032-00). Step 5: Begin installing the Trayslides from bottom to top. (Part # 701-60032-00). Step 6: Test the fit to make sure that the Pilasters and Trayslides have been installed level.

Copy and paste the embed code above.

Watch this video to learn how to install Traulsen Trayslides on G Series 2-Section.

Traulsen G20017P Specs
Width 52 1/8 Inches
Depth 37 15/16 Inches
Height 83 1/4 Inches
Interior Depth 27 Inches
Amps 7.8 Amps
Hertz 60 Hertz
Phase 1
Voltage 115
Capacity 48.8 cu. ft.
Compressor Location Top Mounted
Construction Stainless Steel and Aluminum
Door Style Swing
Door Type Solid
Energy Star Qualified Yes
Half Doors No
Hinge Location Right
Horsepower 1/3 HP
Made in America Yes
NSF Listed Yes
Number of Doors 4
Number of Shelves 6
Pass-Through Yes
Refrigerant Type R-450A
Sections 2
Temperature Range 34 - 38 Degrees F

Customer questions about this product

Can I use the top of my unit for storage?
Nothing should be stored on top of your unit. Typically, top mount refrigerators and freezers do not have an actual top. If you’re looking for extra storage space, we recommend choosing a bottom mount unit.
Can this item fit through a standard height 80" doorway?
Due to the height of this item, it may not be able to fit through a standard 80" tall doorway when standing upright. Please consider the best means of entry before purchasing, or measure your entryway to ensure that you will be able to bring your order inside if the item cannot be carried on its side.
Ask your own question!

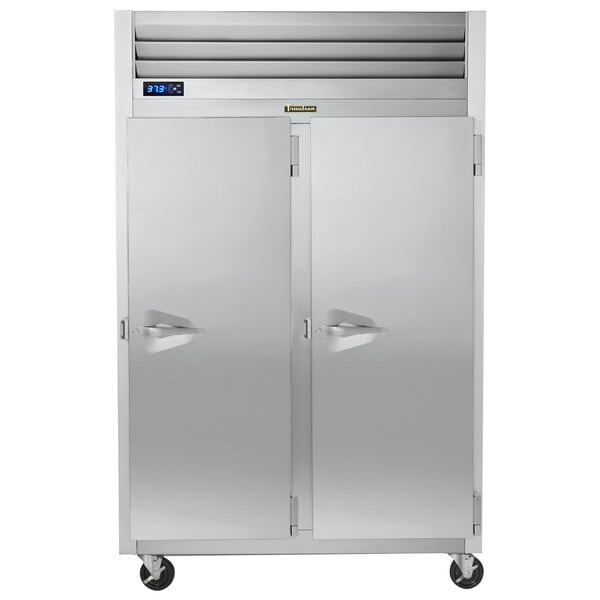

Traulsen G20017P Details

The 48.8 cubic foot Traulsen G20017P two section solid door pass through refrigerator utilizes microprocessor controls and 2" of foamed in place insulation to provide outstanding temperature preservation and performance! Its convenient pass through design enables placement of the unit between kitchen prep areas and server stations, which allows kitchen staff to prepare, plate, and store cold items, like desserts, for wait staff to pull and serve as needed.

Each durable two section solid door pass through refrigerator features a stainless steel front and doors, with anodized aluminum sides and interior construction. On this G20017P, all of the doors are right-hinged.

The spacious interior of this Traulsen solid two door pass through refrigerator comes standard with 6 epoxy coated wire shelves capable of holding 225 lb. each, and automatically activated interior lighting. The doors' cam lift hinge design is guaranteed for life, and features a self-closing design, with a stay open feature when the door is opened past 120 degrees.

The Traulsen G20017P features a top mounted, self-contained, balanced refrigeration system (R-450A) and 1/3 hp compressor to hold temperatures between 34 degrees to 38 degrees Fahrenheit. Traulsen's unique clockwise airflow pattern keeps cold air in, and warm air out better whenever the door is opened. Gasket-protecting metal door pans, and removable vinyl magnetic door gaskets ensure durability and outstanding temperature preservation. Four 6" casters with brakes make the Traulsen G20017P solid 2 door pass-through refrigerator easy to move for cleaning.

Overall Dimensions:
Width: 52 1/8"
Depth: 37 15/16"
Height: 83 1/4"

Interior Dimensions:
Depth: 27"
Capacity: 48.8 cu. ft.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents: Prop 65 Warning

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • UL US & Canada

    UL US & Canada

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in the United States of America and Canada.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

Resources and Downloads for
Traulsen G20017P

Spec Sheet Specsheet Accessories G-Series Accessories Selection Guide Selection Guide

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Note: Traulsen equipment has a 3 year parts and labor warranty. Traulsen compressors have a 5 year warranty. RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
