Product Overview

  • Single flush design, 0.5 GPF
  • Hands-free sensor prevents germs from spreading
  • Semi-red brass valve body; polished chrome finish
  • Automatic sensor uses "AA" alkaline battery power and can be hardwired
  • Rear spud fixture connection for urinals; 3/4" spud coupling, 3/4" supply pipe

Shipping Restrictions

This item cannot ship to AK or HI
UPC Code:671254476400

Sloan 3400302 Specs

Quantity
1/Each
Shipping Weight
5 lb.
Color
Silver
Features
ADA Compliant  Made in America
Flow Rate
0.5 GPF
Gallons per Flush
0.5 Gallon
Style
Automatic
Type
Flush Valves  Urinal Valves
Water Inlet Size
3/4 Inches

Sloan 3400302 Details

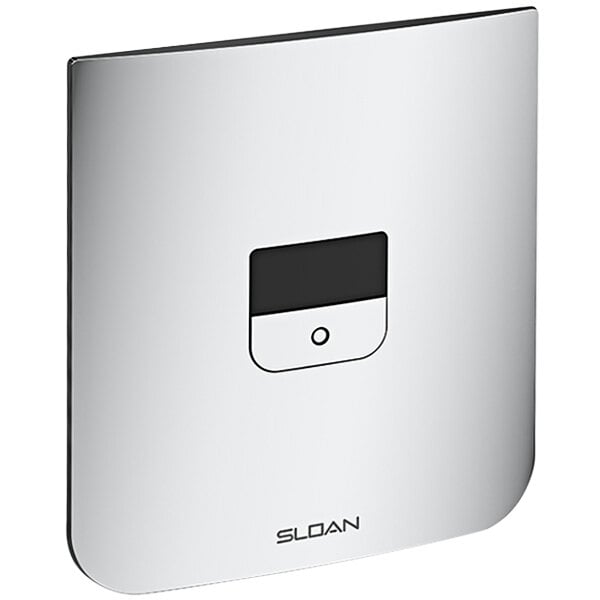

This Sloan CX 3400302 polished chrome concealed sensor urinal flushometer is a smart choice for urinals in your commercial restroom. Boasting a versatile polished chrome finish that complements nearly any design aesthetic, this flushometer lends a subtle, modern accent to your urinal fixtures. It provides the quality and usability you expect and depend on, with a reliable piston valve and a valve body made from semi-red brass.

This flushometer is a great option for improving health and sanitation measures, as it uses an infrared sensor with a range of 15" to 34" to provide touch-free operation. By using a sensor, you eliminate the urinal handle, which is a key contact point for germs to spread. This helps to make your business safer and more sanitary for guests and employees alike! The sensor is powered by (4) "AA" alkaline batteries and can be hardwired if needed, so the flushometer is ready to use right out of the box. These batteries provide up to 5 years of life, giving you plenty of time before a changeout is needed.

To ensure your flushometer is operating at maximum capacity, it comes with all necessary hardware such as a fixed volume piston with filtered O-ring bypass, a short V500A vacuum breaker, and vandal-resistant wall plate. Because it's designed with a front access wall plate, you have quick access to the plumbing. A flush button with an electrical override is also included if manual use is required and, for added convenience, this unit also has a low-battery flashing LED. To improve water conservation, the flushometer has an adjustable flush connection.

This single flush unit uses 0.5 GPF and has a 20-80 PSI flow rate. Additional features include an integrated control stop and rear spud fixture connection with a 3/4" spud coupling. This flushometer requires a 3/4" supply pipe and 12 5/8" rough-in for use.

Overall Dimensions:
Rough-In: 12 5/8"

Due to US DOT shipping regulations, we are unable to ship this product to Alaska, Hawaii, and international destinations. It is also ineligible for next day or second day shipping and cannot be returned. Please contact Customer Solutions prior to placing your order if you have any questions or concerns.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.
Ask your own question!
  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • Made in America

    Made in America

    This item was made in the United States of America.

  • IAPMO R&T, UPC Certified - USA & Canada

    IAPMO R&T, UPC Certified - USA & Canada

    This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA and Canada.

  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • SCS Environmental Product Declaration Verified

    SCS Environmental Product Declaration Verified

    This product has a verified Environmental Product Declaration (EPD). SCS is recognized as an Eligible EPD Program Operator under the American National Standards Institute (ANSI).

  • SCS Health Product Declaration Verified

    SCS Health Product Declaration Verified

    This product has a verified Health Product Declaration (HPD).

  • Hands-Free/Touchless

    Hands-Free/Touchless

    This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection for water supply.
