$11.99/Each
Ships free with PlusSize: 3/4" x 3/4" x 3/4"
Product Overview
- Push-to-connect design is quick and easy to install in tight spaces
- DZR brass body prevents corrosion and cracking
- Stainless steel grab ring features teeth for a leak-free connection
- EPDM rubber O-ring provides a watertight seal
- Fits 3/4" pipes
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 0.6 lb.
- Features
- Corrosion-Resistant Crack Resistant EPDM O-Ring Made in America
- Material
- Brass
- Maximum Pressure
- 200 PSI
- Maximum Water Temperature
- 200 Degrees F
- Pipe Size
- 3/4 Inch
- Type
- Tees

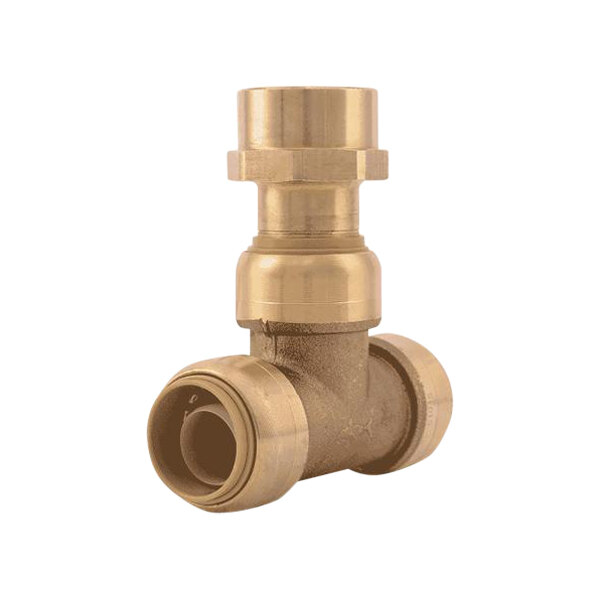

SharkBite™ U462LF Details
Install a safe and reliable water distribution system with this SharkBite™ FNPT center tee. Made with a DZR brass body that prevents corrosion and cracking, this fitting is perfect for use in commercial and residential plumbing when installing potable water or radiant heating systems above or underground, as well as behind walls. This tee can be used to quickly and easily connect three pieces of PEX, copper, CPVC, PE-RT, or HDPE SDR-9 tubing in any combination, and it fits 3/4" pipes. Ideal for adding a water heater expansion tank to an existing line, this tee is constructed with an FNPT threaded adapter on its middle branch. Plus, it can be installed on wet lines and even rotated after installation.
Simple to install with no special tools or materials needed, this tee is ideal for use in tight spaces and utilizes a unique push-to-connect design. After securely passing through a release collar, the stainless steel grab ring features teeth that bite onto the pipe for a leak-free connection. Meanwhile, the EPDM rubber O-ring protector compresses around and aligns the pipe for a watertight seal. An integral stiffener provides additional pipe support, especially when using this fitting with PEX, PE-RT, and HDPE tubing. This tee has a max working temperature of 200 degrees Fahrenheit and a max working pressure of 200 PSI. If you're looking to use it as a temporary fix, it can be easily removed using a compatible disconnect tool (sold separately).
Made in America
This item was made in the United States of America.
NSF/ANSI/CAN 61 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.
NSF/ANSI/CAN 372 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.
Need Parts & Accessories?
Show replacement parts and accessories for SharkBite™ U462LF today!
