Product Overview

  • Incredibly flexible for quick and simple installation
  • Made from sturdy polyethylene that features a crosslinked design
  • Designed with an oxygen barrier to prevent the corrosion of ferrous metals in heating systems
  • Able to expand and contract during freezes to resist damage
  • Fits 3/4" pipes; resistant to chlorine
UPC Code:697285331006

SharkBite™ U870O100 Specs

Quantity
1/Each
Shipping Weight
10.1 lb.
Length
100 Feet
Diameter
3/4 Inch
Inner Diameter
11/16 Inch
Outer Diameter
7/8 Inch
Color
Orange
Features
Freeze Resistant  Made in America  NSF Listed
Material
Polyethylene
PEX Type
Type C
Pressure Rating
80 - 160 PSI
Temperature Rating
33 - 200 Degrees F
Type
Tubing Coils

SharkBite™ U870O100 Details

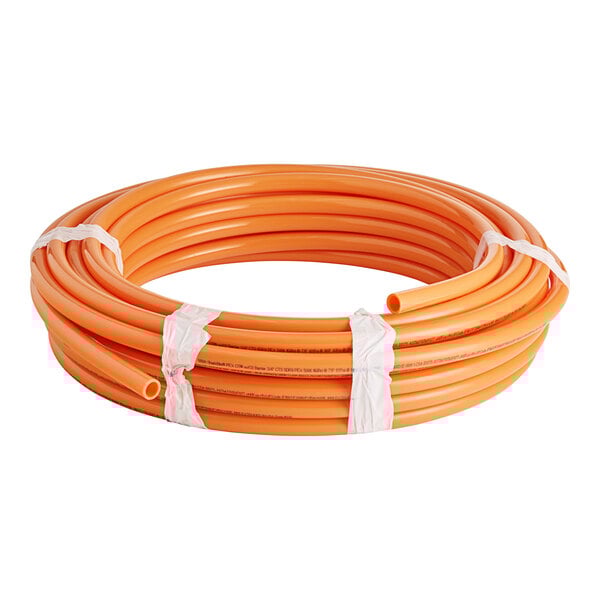

Install a safe and reliable water distribution system with this SharkBite™ orange PEX-C tubing coil. Made from crosslinked polyethylene, this tubing features an outer oxygen diffusion barrier, which limits oxygen permeation and prevents the corrosion of ferrous metal parts in hydronic heating systems. This makes it perfect for use in commercial and residential plumbing when installing radiant and hydronic non-potable water systems above or underground, even buried under concrete. It can also be used for snow and ice melting installations, as well as in geothermal ground loops. Incredibly flexible, this coil can bend up to 8 times its outside diameter, making it quick and simple to install with fewer required connections needed, while also greatly reducing the chance of leaks.

This PEX-C tubing provides excellent chlorine resistance. Plus, while typical copper or CPVC systems can burst during freezes, this tubing can easily expand, contract, and resists damage in frigid temperatures. Just be sure to leave some slack between supports to account for temperature contractions. It's compatible with SharkBite™ universal push-to-connect ASSE 1061, SharkBite EvoPEX™, plastic barb ASTM F2159, and brass barb ASTM F1807 fitting systems, and it fits 3/4" pipes. This tubing coil has a minimum working temperature of 33 degrees Fahrenheit and a maximum working temperature of 200 degrees Fahrenheit, while its maximum working pressure is 160 PSI.

Overall Dimensions:
Inside Diameter: 11/16"
Outside Diameter: 7/8"
Length: 100'

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.
