Product Overview

  • Push-to-connect design is quick and easy to install in tight spaces
  • DZR brass body prevents corrosion and cracking
  • Stainless steel grab ring features teeth for a leak-free connection
  • EPDM rubber O-ring provides a watertight seal
  • Fits 1" pipes
UPC Code:697285002593

SharkBite™ U2020-0000LF Specs

Quantity
1/Each
Shipping Weight
0.6 lb.
Length
3 7/8 Inches
Features
Corrosion-Resistant  Crack Resistant  EPDM O-Ring  Made in America
Material
Brass
Maximum Pressure
150 PSI
Maximum Water Temperature
200 Degrees F
Pipe Size
1 Inch
Type
Check Valves

SharkBite™ U2020-0000LF Details

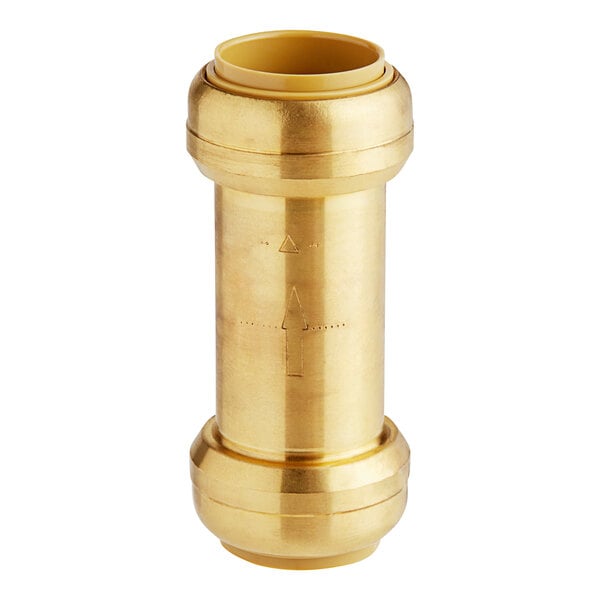

Install a safe and reliable water distribution system with this SharkBite™ check valve. Made with a DZR brass body that prevents corrosion and cracking, this fitting is perfect for use in commercial and residential plumbing when installing potable water or radiant heating systems above or underground, as well as behind walls. This check valve is spring-loaded and helps to prevent the reverse flow of water. It can be quickly and easily installed horizontally or vertically and is compatible with PEX, copper, CPVC, PE-RT, or HDPE SDR-9 tubing in any combination, and it fits 1" pipes.

Simple to install with no special tools or materials needed, this check valve is ideal for use in tight spaces and utilizes a unique push-to-connect design. After securely passing through a release collar, the stainless steel grab ring features teeth that bite onto the pipe for a leak-free connection. Meanwhile, the EPDM rubber O-ring protector compresses around and aligns the pipe for a watertight seal. An integral stiffener provides additional pipe support, especially when using this fitting with PEX, PE-RT, and HDPE tubing. This check valve has a max working temperature of 200 degrees Fahrenheit and a max working pressure of 150 PSI. If you're looking to use it as a temporary fix, it can be easily removed using a compatible disconnect tool (sold separately).

Overall Dimensions:
Length: 3 7/8"

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF/ANSI 61

    NSF/ANSI 61

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
