Product Overview

  • Resistant to chlorine, UV rays, condensation, corrosion, and mineral build-up
  • Incredibly flexible for quick and simple installation
  • Made from sturdy polyethylene that features a crosslinked design
  • Able to expand and contract during freezes to resist damage
  • Fits 1/2" pipes; dampens water distribution system sound
UPC Code:697285261006

SharkBite™ U860W100 Specs

Quantity
1/Each
Shipping Weight
5.7 lb.
Length
100 Feet
Diameter
1/2 Inch
Inner Diameter
1/2 Inch
Outer Diameter
5/8 Inch
Color
White
Features
Corrosion-Resistant  Freeze Resistant  Made in America  Mineral Build-up Resistant
Material
Polyethylene
PEX Type
Type B
Pressure Rating
80 - 160 PSI
Temperature Rating
33 - 200 Degrees F
Type
Tubing Coils

SharkBite™ U860W100 Details

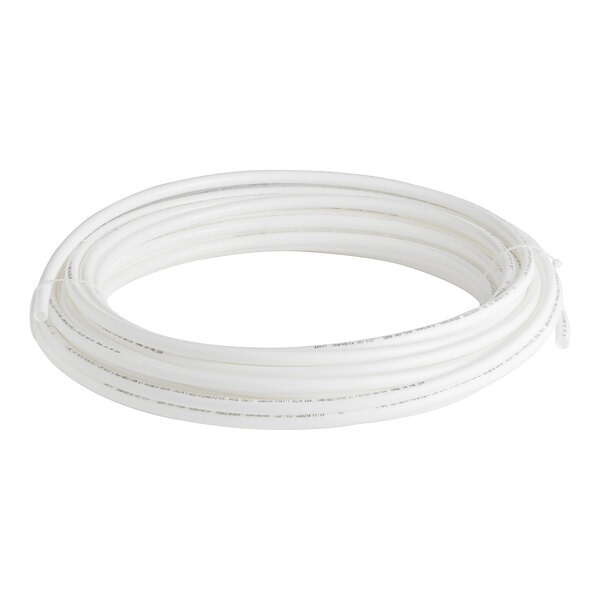

Install a safe and reliable water distribution system with this SharkBite™ white PEX-B tubing coil. Made from crosslinked polyethylene, this tubing is perfect for use in commercial and residential plumbing when installing hot and cold potable water systems above or underground, even buried under concrete. It can also be used for fire protection installations or when distributing water to municipal water service lines, as well as in radiant heating systems and geothermal ground loops. Incredibly flexible, this coil can bend up to 8 times its outside diameter, making it quick and simple to install with fewer required connections needed, while also greatly reducing the chance of leaks.

This PEX-B tubing provides excellent chlorine and condensation resistance, as well as 6 months of UV resistance, and it won't corrode or collect minerals over time. Plus, while typical copper or CPVC systems can burst during freezes, this tubing can easily expand, contract, and resists damage in frigid temperatures. It even has a higher thermal resistance that allows hot water lines to stay hotter for longer. Not to mention, this tubing dampens sound rather than amplifying it, giving you a water distribution system that is as quiet as it is trustworthy!

This tubing is compatible with SharkBite™ universal push-to-connect ASSE 1061, SharkBite EvoPEX™, plastic barb ASTM F2159, and brass barb ASTM F1807 fitting systems, and it fits 1/2" pipes. It has a minimum working temperature of 33 degrees Fahrenheit and a maximum working temperature of 200 degrees Fahrenheit, while its maximum working pressure is 160 PSI. This tubing coil can conveniently be installed in wet or dry conditions; just be sure to leave some slack between supports to account for temperature contractions.

Overall Dimensions:
Inside Diameter: 1/2"
Outside Diameter: 5/8"
Length: 100'

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • IAPMO R&T, UPC Certified - USA & Canada

    IAPMO R&T, UPC Certified - USA & Canada

    This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA and Canada.

  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.
