Canarm 10'' 2-Speed Standard Wall Exhaust Fan SD10 - 500 CFM, 1 Phase, 60W
Item number 664sd10MFR number SD10
Note: Similar size shown
Works With
Usually Ships in 1-2 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Improves air quality in commercial and industrial settings
- Durable welded steel construction with powder-coated finish
- 10" aluminum blade with zinc-plated heavy wire guards
- Thermal overload protection for safe use
- Efficient 60W motor produces up to 500 CFM; 115V, 1 phase
UPC Code:400016806519
Works With
Ideal for industrial and commercial settings, this Canarm standard wall exhaust fan provides ventilation to improve air quality in your facility.
This Canarm exhaust fan includes a durable 10" aluminum blade protected by zinc-plated heavy wire guards on the intake side of the fan. For optimal performance, it features a 2-speed, direct-drive, 60W external rotor motor that reaches up to 500 CFM on the highest setting and has a maximum RPM of 1,480. This unit has a 9' power cord and requires a 115V, 1 phase electrical connection.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Fully Assembled
This item arrives fully assembled, and requires no additional assembly prior to use.
ETL Listed
This product has been certified by ETL, a division of the Intertek Group.
Built for Continuous Operation
Designed to help protect against dust, dirt, and moisture, the motor is completely enclosed and features thermal overload protection to prevent overheating while providing reliable performance for continuous-duty applications. Its high-efficiency, swept-back Euro design offers maintenance-free operation, and the pull-chain speed control provides ease of use.
Durable Construction

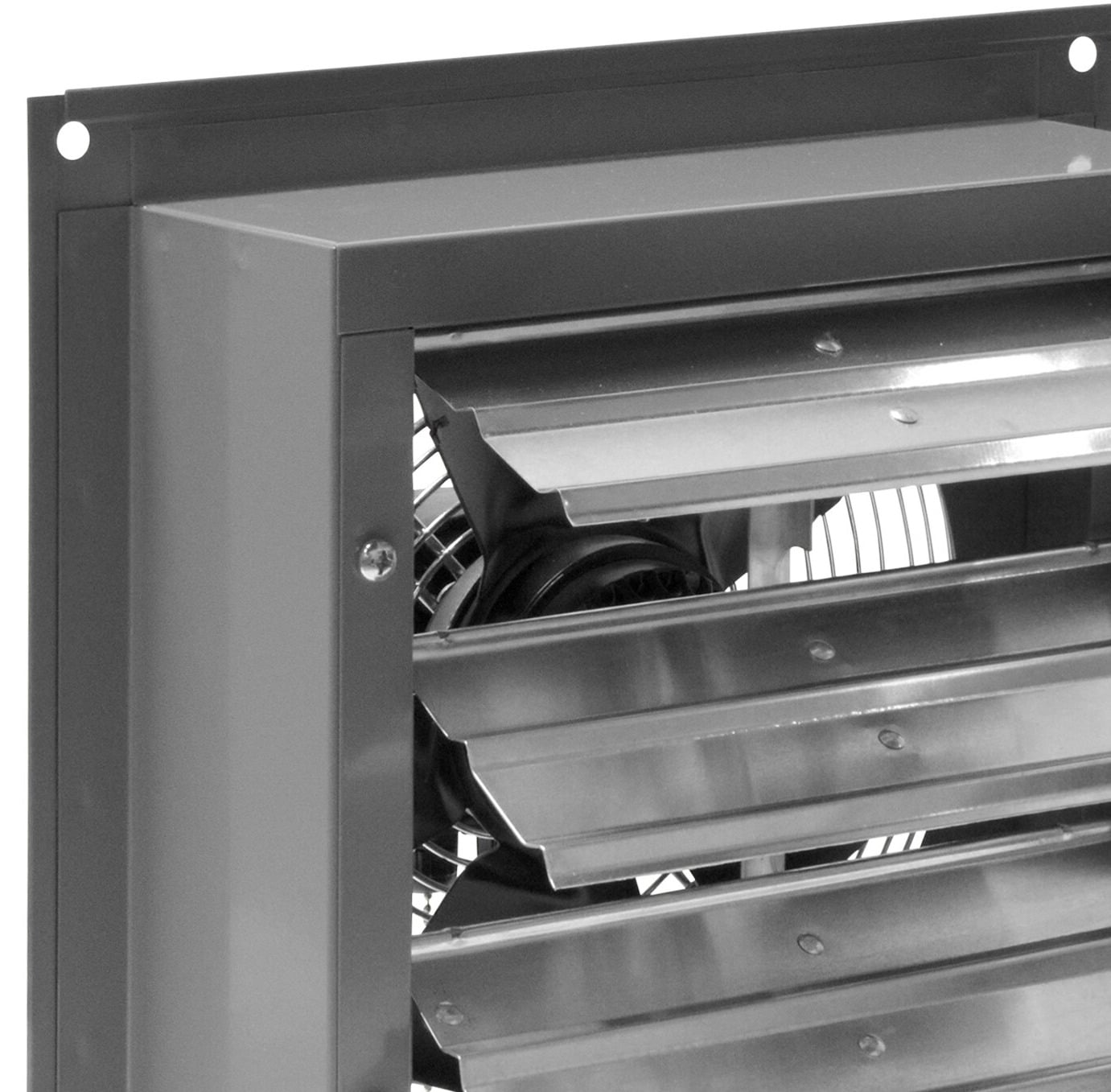

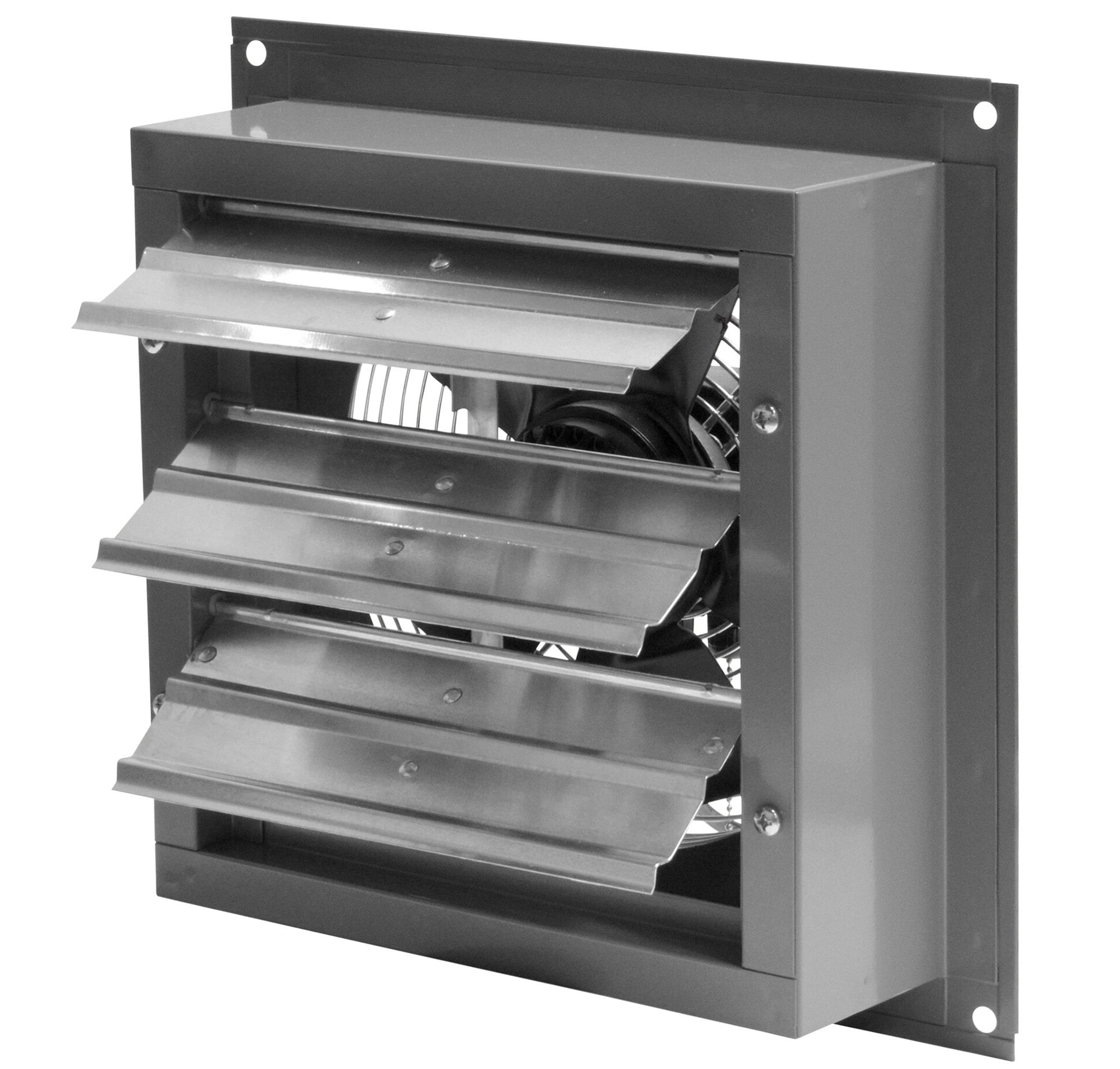

This rugged fan includes durable aluminum louver shutters to help prevent backdraft when not in use, minimizing unwanted air exchange. Plus, the shutters have a tie bar to maximize airflow and a magnet that secures the louvers in place when not in operation, providing quiet operation and a superior seal. This fan is housed in a sturdy welded steel box with a powder-coated finish for long-lasting use.
Convenient and Versatile

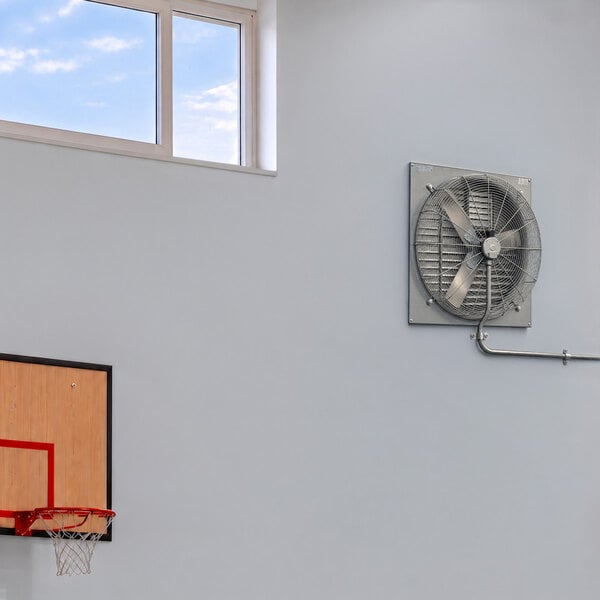

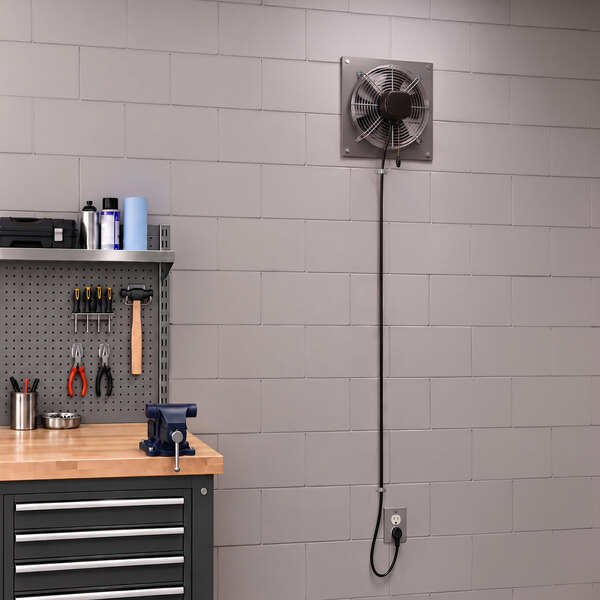

Perfect for use in workshops, garages, warehouses, architectural buildings, and light industrial facilities, this exhaust fan installs from inside the wall without the need for external framing or shutters. This allows you to maximize usable interior space while directly and efficiently exhausting stale or contaminated air, making it a versatile and effective option for retrofit projects or new construction.
Ships Fully Assembled
For added convenience, this Canram standard wall exhaust fan ships fully assembled and is simple to install using only four screws (sold separately), reducing the amount of time it takes to set up.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.
Frequently Asked Questions From Customers
What materials will my unit be constructed with?
Canarm exhaust fans have a powder-coated steel housing. However, components such as the blade and/or louvers are constructed of aluminum.
Overall Dimensions:
- Width:
- 15 1/4 Inches
- Depth:
- 7 7/8 Inches
- Height:
- 15 1/4 Inches
- Blade Diameter:
- 10 Inches
