Product Overview

  • Produces up to 500 lb. of ice per day and stores up to 40 lb.
  • Touch-free infrared sensors are more sanitary
  • Greaseless bearings and removable air filter saves time and maintenance costs
  • Intuitive diagnostic lights display the unit's status and alert staff to descale and sanitize
  • Wall mount, designed to be installed over existing sink
UPC Code:840315401358

Scotsman HID540AW-1 Specs

Shipping Weight
220 lb.
23 1/4 Inches
24 3/8 Inches
41 Inches
60 Hertz
1 Phase
115 Volts
24 Hour Ice Yield
500 Pounds
Bin Storage Capacity
40 lb.
Condenser Type
Air Cooled
Dispenser Style
Made in America  NSF Listed
Ice Type
Installation Type
Wall Mounted
Plug Type
NEMA 5-15P
Power Usage
5.5 kWh per 100 lbs.
Ice / Water Combination Machines
Water Usage
12 Gallons Per 100 lbs.

Customer questions about this product

My ice machine has been shut down, or not in use since the COVID-19 shutdowns, how should I restart it?

If your ice machine has been shut down or not in use for a prolonged period time, please reference your machine's user-manual for a restart procedure, often called “Winterization." Please reference your user manual or contact customer service with any questions.

Should I buy an air-cooled or water-cooled ice machine?

Air-cooled ice machines are the most common choice. They're more energy-efficient and use much less water than a water-cooled model. Unless you are replacing an existing water-cooled unit or are operating under very high ambient temperatures, you probably will want an air-cooled unit. It's a great idea to check what your existing unit is before placing your order so that the installation of the new one will go smoothly!

Why should I buy a water filter along with this product?

Whether you purchase the suggested water filter through this product page or acquire your compatible water filter elsewhere, be sure to consult the equipment's manual and warranty to understand the importance of correct water filter usage. Using poor quality feed water may void your equipment's warranty. Therefore, it’s important that your water be filtered to the highest quality.

Why won’t clear cups work with my touch free water dispenser?”

This machine uses infrared beams to trigger dispensing. A clear cup will work if a non-transparent object is in-front of the sensor.

Will this ice machine meet my business’s ice demand?

Every business type has unique demands for ice. If you have any questions about how much ice you’ll need please reference our Types of Ice Machines buying guide.

Ask your own question!

Scotsman HID540AW-1 Details

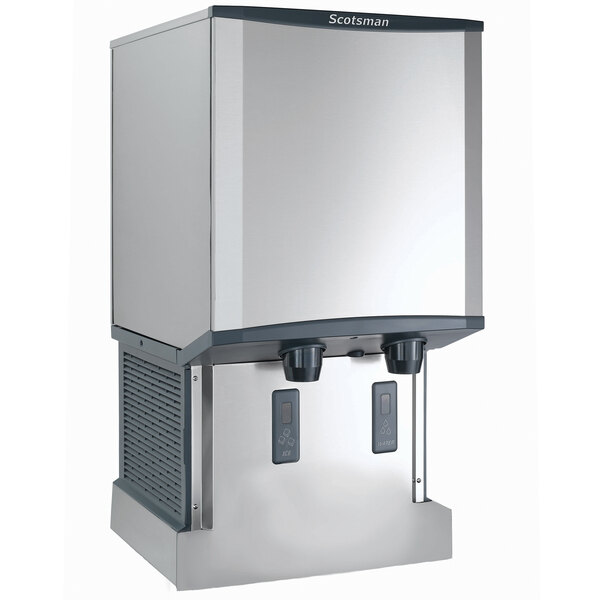

Making and dispensing ice for your establishment has never been easier than with this Scotsman HID540AW-1 Meridian wall mount air cooled ice machine and water dispenser. The perfect addition to your break room, self-serve area, hotel, or healthcare facility, this unit can produce up to 500 lb. of nugget ice per day and features a 40 lb. storage capacity. It's a great way to provide employees, customers, and visitors with a refreshing glass of ice water. Dispensing ice directly into the cup, it eliminates cross-contamination risks by removing scooping from the equation. The AgION antimicrobial treatment added into key ice contact areas also helps minimize further health risks.

Built with a space-saving design, this unit has the industry's smallest operational footprint relative to its capacity. The wall mount design ensures it won't take up your precious counter space while the specially contoured sides save space in addition to giving the unit better breathability and an external air filter. On the outside, the Smarter Construction stainless steel evaporator and exterior panels are built to last. Plus, greaseless bearings require reduced maintenance. Simply mount the unit over an existing sink to integrate it into your floorplan.

Made with your usage in mind, this machine has a larger dispensing area for quick and simple use. Additionally, the intuitive LED diagnostic lights reduce service time by alerting your staff and repairman to specific issues. This ensures that they can be resolved as quickly as possible. A unit specific QR code gives access to all the service manuals and warranty history. When it's time for an update, a convenient USB drive makes it a quick and simple process, so you can always have your dispenser operating at its peak performance.

As part of the Meridian line, This machine is both energy and water efficient, leading the industry in models that minimize waste. Plus, it has an improved condenser fan function that operates more quietly, that way it won't interrupt the flow of your facility for staff and guests. This unit requires a 115V electrical connection for operation.

Overall Dimensions:
Width: 23 1/4"
Depth: 24 3/8"
Height: 41"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • CE Listed

    CE Listed

    This product complies with the standards imposed by Conformance European (CE).

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • ARI / AHRI

    ARI / AHRI

    This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

  • 5-15P


    This unit comes with a NEMA 5-15P plug.

Need Parts & Accessories?

Show replacement parts and accessories for Scotsman HID540AW-1 today!

Resources and Downloads for
Scotsman HID540AW-1

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
