Scotsman CU0715MAX-1A 15" Air-Cooled Undercounter Medium Cube Ice Machine with 36 lb. Bin and ADA-Compliant Floor Mount Kit - 80 lb., 115V
Item number 720xcu071amad
$2,539.00/Each
Ships free withEarn up to $76.17 back (7,617 points)with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business day
Product Overview
- Produces up to 80 lb. and stores up to 36 lb. of medium-sized ice per day
- Easy to operate and adjust with intuitive control panel
- Horizontal evaporator removes impurities to create crystal-clear ice cubes
- Compact, front-breathing design fits areas with limited space
- Included floor mount kit lowers machine height to 32" to fit beneath ADA-height countertops
UPC Code:400017965048
Works With
- Quantity
- 1/Each
- Shipping Weight
- 150 lb.
- Width
- 15 Inches
- Depth
- 24 Inches
- Height
- 32 - 38 Inches
- Amps
- 15 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 80 Pounds
- Ambient Temperature Range
- 50 - 100 Degrees F
- Bin Storage Capacity
- 36 lb.
- Condenser Type
- Air Cooled
- Features
- ADA Compliant Made in America
- Ice Type
- Cubes Full Size Cubes
- Included
- Scoop
- Installation Type
- Undercounter
- Plug Type
- NEMA 5-15P
- Power Usage
- 9.45 kWh per 100 lbs.
- Refrigerant Type
- R-290
- Type
- Ice Machines with Bins
- Water Inlet Size
- 1/4 Inches
- Water Pressure Range
- 15 - 80 PSI
- Water Temperature Range
- 40 - 100 Degrees F
- Water Usage
- 33 Gallons Per 100 lbs.
Details
Create a reliable ice system in your establishment with this Scotsman ice machine. This unit's innovative horizontal evaporator uses spray jets to remove impurities, allowing it to create slow-melting, crystal-clear ice cubes. It produces 80 lb. of 7/8" x 7/8" x 7/8" medium-sized ice per day and stores up to 36 lb. of ice daily, helping to keep up with the demands of your restaurant, bar, cafe, or break room. It uses R-290 refrigerant and consumes only 9.45 kWh of energy per 100 lb. of ice produced. Its intuitive control panel makes it easy to operate and adjust the ice thickness or harvest time.
This self-contained ice machine boasts a durable corrosion-resistant exterior with aluminum alloy side panels. It features a compact, front-breathing design to fit in areas with limited space. Plus, its ergonomic door slides up instead of swinging out to easily access the ice bin while requiring less clearance. An ice scoop is conveniently included to help retrieve ice.

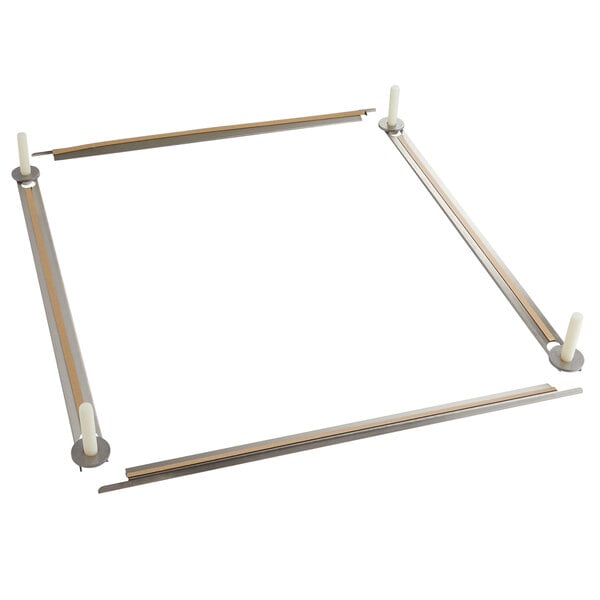

This ice machine comes with the KUFM15 floor mount kit to secure it to the floor and reduce its height to 32", allowing for installation underneath ADA-height countertops. When you need documents related to your ice machine or want to check on the warranty status, the unit-specific QR code lets you find all the information you need by simply scanning the code with your mobile device. This unit meets U.S. Safe Drinking Act low lead requirements. It requires a 115V electrical connection for operation, and it comes with a power cord.
Kit Includes:
- Scotsman ice machine (Item 720CU0715MAX1)
- Floor mount kit (Item 720KUFM15)
Ice Machine Dimensions:
Width: 15"
Depth: 24"
Height: 38"
Height (with Floor Mount Kit): 32"
Bin Capacity: 36 lb.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

1/4" Water Connection
This unit comes with a 1/4" water connection for water supply.

5-15P
This unit comes with a NEMA 5-15P plug.

ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).

Made in America
This item was made in the United States of America.
