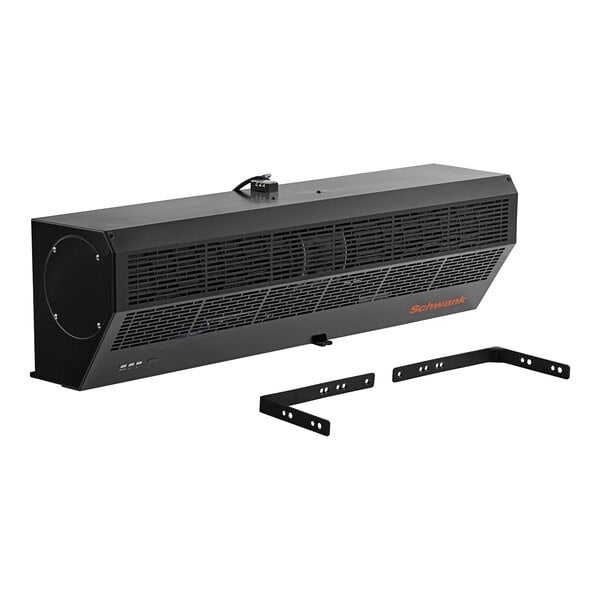

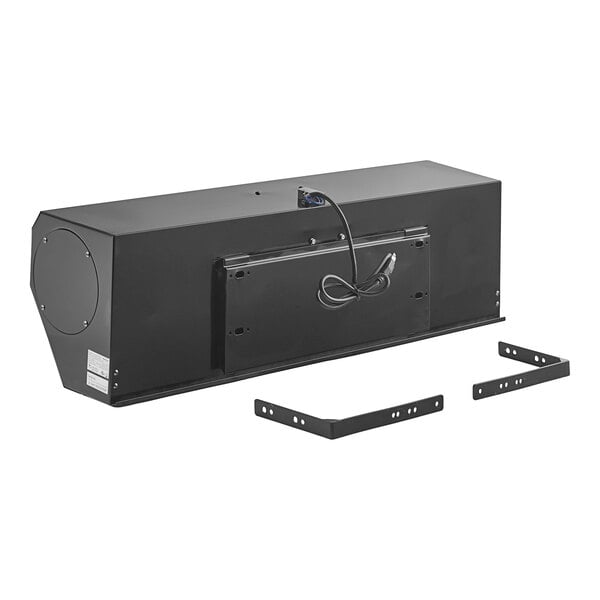

Schwank Breeze9 Series AC-1072-12-BK 72" Black Steel Electric Ambient Air Curtain with Magnetic Door Switch - 120V, 760W
Item number 7101072MFR number AC-1072-12-BK
$1,039.00/Each
Ships free with
Earn up to $31.17 back (3,117 points)with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business day
Product Overview

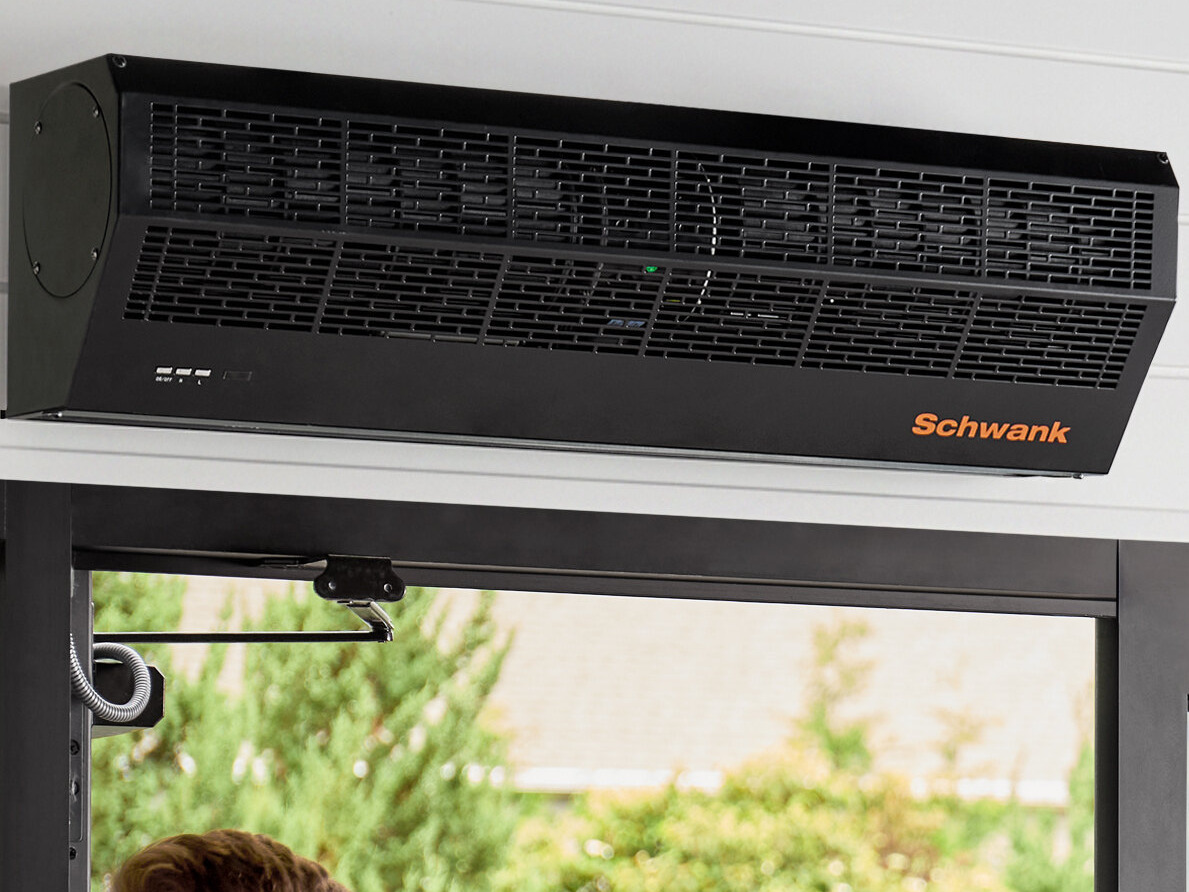

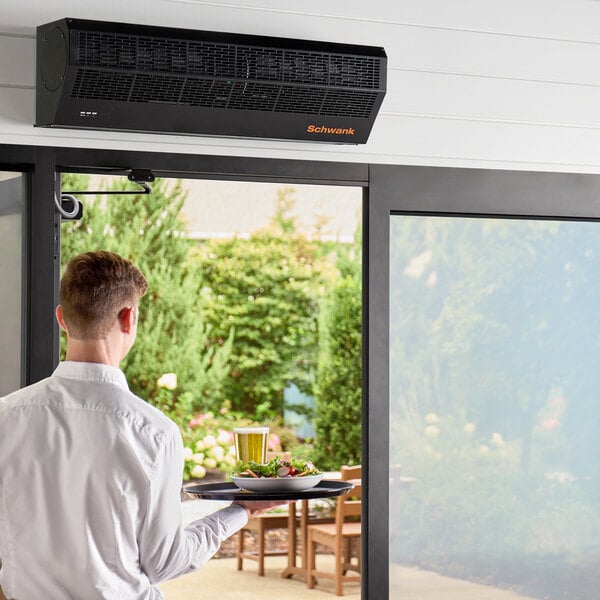

- Ideal for restaurant and building doorways, retail windows, and drive-thru windows up to 10'
- Creates a barrier between 2 environments to reduce air conditioning loss
- Keeps dust, dirt, debris, and insects out
- Includes remote control and magnetic door switch
- Combine units for spaces wider than 10' (sold separately)
- Quantity
- 1/Each
- Shipping Weight
- 73 lb.
- Width
- 71 Inches
- Depth
- 8 11/16 Inches
- Height
- 10 1/4 Inches
- Power Cord Length
- 4 Feet
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 120 Volts
- Wattage
- 760 Watts
- Color
- Black
- Features
- Made in America
- Included
- Hardware Remote Control
- Installation Type
- Surface Mounted
- Material
- Steel
- Noise Level
- 70 - 72 dB
- Plug Type
- NEMA 5-15P
- Style
- Back Door Drive-Thru Window Front Door
- Type
- Air Curtains
Schwank Ltd AC-1072-12-BK Details
Protect the temperature inside your establishment while keeping it clean and comfortable with this Schwank Breeze9 electric ambient air curtain! This high-efficiency air curtain features a sleek black color and is ideal for small openings like restaurant and building doorways, retail windows, and drive-thru windows where a long, narrow airflow is required. It creates a temperature-separating air barrier to prevent cold air from pushing in and hot air from going out, reducing heat and AC loss through the opening while keeping dust, dirt, debris, and insects out. This air curtain can be combined with additional units to accommodate larger openings (sold separately).

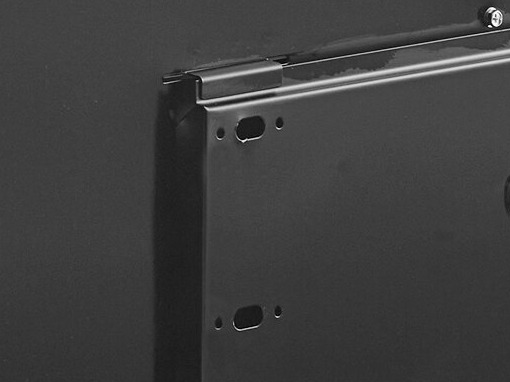

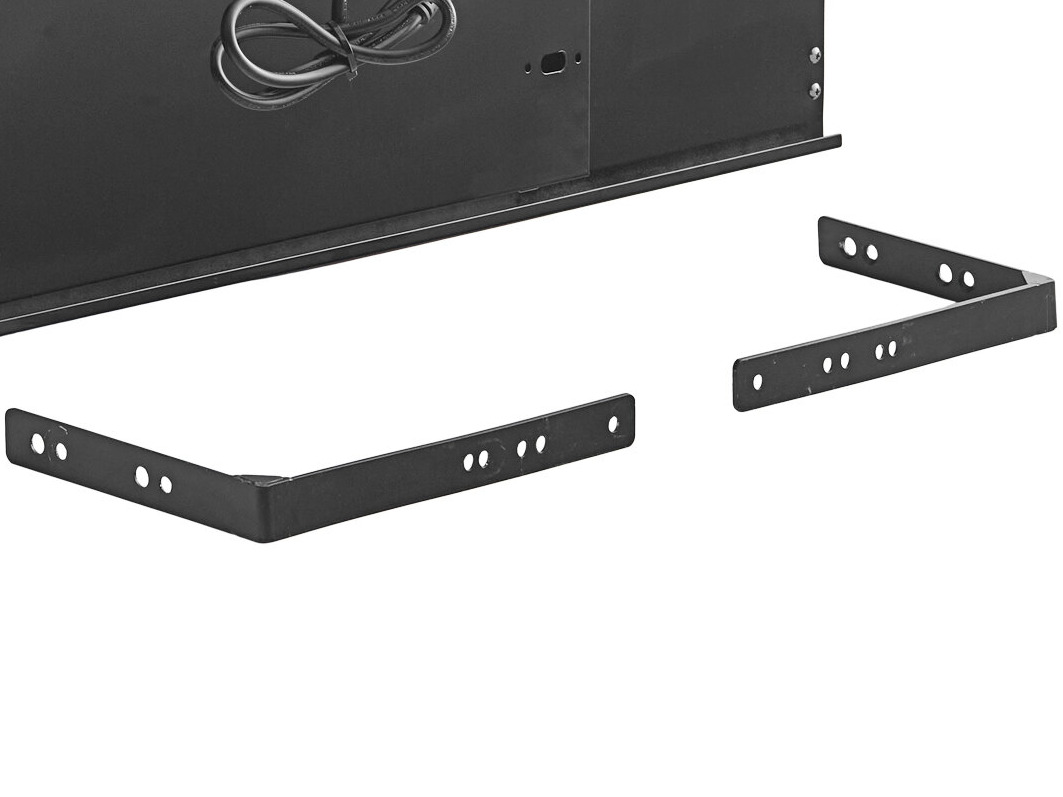

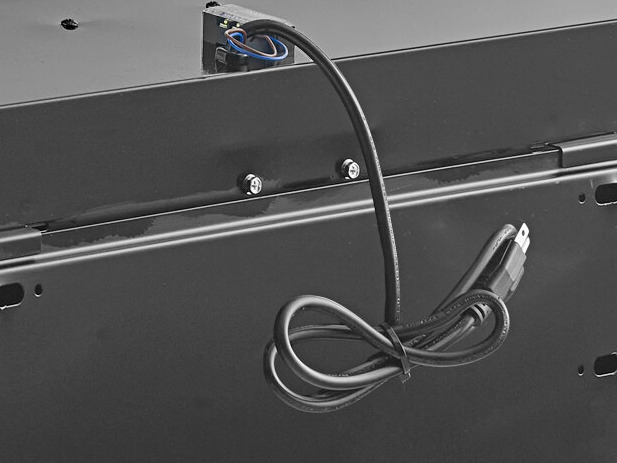

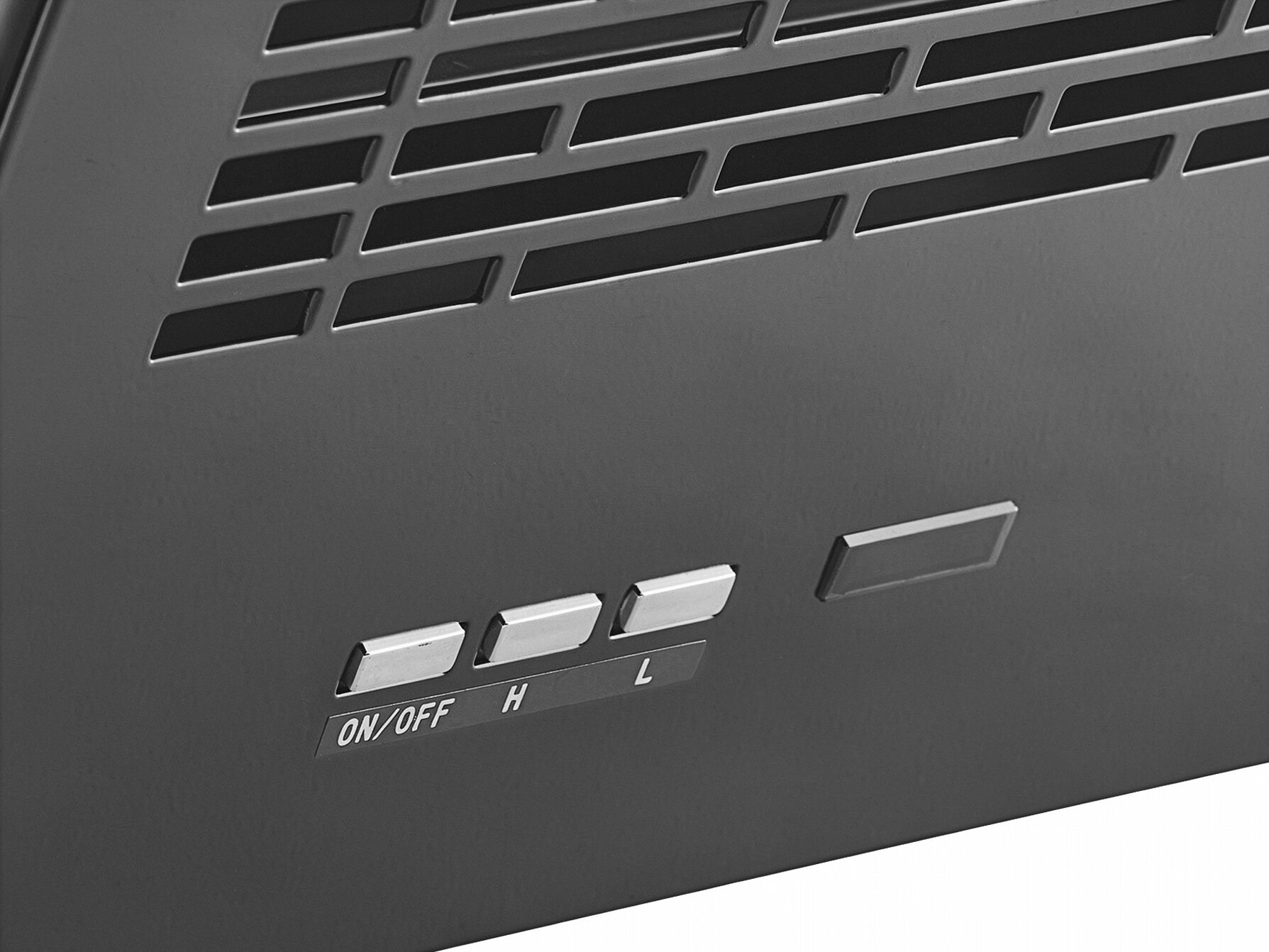

This electric air curtain generates an air velocity of 2,524 CFM on high and 1,941 CFM on low. It features variable controls with a high and low setting and includes a remote control and a magnetic door switch. It also comes with a 4' power cord for plug-and-play use. This unit features a compact design with a durable, accessible steel housing that snaps on and latches for easy maintenance access, and includes mounting brackets for easy installation for both wall and ceiling mounting up to 10'. It runs with low sound levels from 70-72 dB and features a modern design and sleek shape that will blend seamlessly into your space while standing up to hard use even in the most demanding applications. This air curtain requires a 120V electrical connection for operation.
Overall Dimensions:
Width: 71"
Depth: 8 11/16"
Height: 10 1/4"
Attention CA Residents:
Made in America
This item was made in the United States of America.
5-15P
This unit comes with a NEMA 5-15P plug.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
