$7,189.00/Each

Earn up to $215.67 back (21,567 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 3 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Reduces energy loss and deters insects
  • Includes a wired remote control
  • Electric heater with an adjustable heating scale
  • Includes mounting hardware for convenient installation
  • Designed to be mounted on any doorway up to 11 1/2' high
  • Multiple units may be lined up to cover large entryways
  • Maximum air flow rate of 1460 cfm
  • 208V, 3 phase, 12 / 24 kW
UPC Code:841530042838

Schwank Ltd AC-HE93-20 Specs

Quantity
1/Each
Shipping Weight
185 lb.
Width
92 1/2 Inches
Depth
18 3/8 Inches
Height
12 1/8 Inches
Amps
72 Amps
Hertz
60 Hertz
Phase
3 Phase
Voltage
208 Volts
Wattage
12,000 - 24,000 Watts
Color
White
Features
Electric Heater  Made in America
Installation Type
Surface Mounted
Noise Level
54 - 58 dB
Plug Type
Hardwire
Speeds
2 Speed
Style
Back Door  Front Door
Type
Air Curtains

Schwank Ltd AC-HE93-20 Details

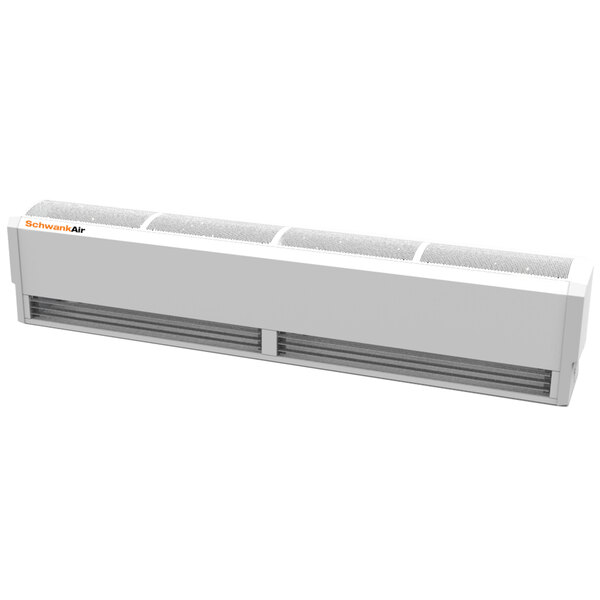

This Schwank AC-HE93-20 92 1/2" commercial air curtain with an electric heater creates an invisible wall of air that will stop outside air, pollutants, and insects from entering your business. Ideal for grocery stores, restaurants, and warehouses, this air curtain will also reduce your overall energy costs by keeping cool air in during the summer and preventing heat from escaping during winter.

This surface mounted air curtain features a brushed finish front panel so that it looks good in your entryway. At the high setting, this model can put out a maximum of 1460 cfm. To adjust the speed setting, turn the unit on or off, and control the heat output, this unit comes with a wired control included so you don't need to worry about purchasing a controller separately.

Mounting hardware is also included with this air curtain so that you can quickly and easily install it over your doorway. If your door is especially wide, don't worry! You can line up multiple air curtains over a single door, if needed, to provide optimum protection. In order to operate effectively, this air curtain is designed to be mounted on doorways up to 11 1/2' high. A 208V, 3 phase, 12 / 24 kW electrical connection is required.

Overall Dimensions:
Width: 92 1/2"
Depth: 18 3/8"
Height: 12 1/8"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US

    UL Listed, US

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.

  • CSA, Canada

    CSA, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for electrical, plumbing, and/or mechanical products in Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
