Color: White

Usually Ships in 3 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Ideal for small openings to protect inside temperatures
  • Reduces heat and AC loss
  • Can be mounted on walls and ceiling
  • Boasts low sound levels

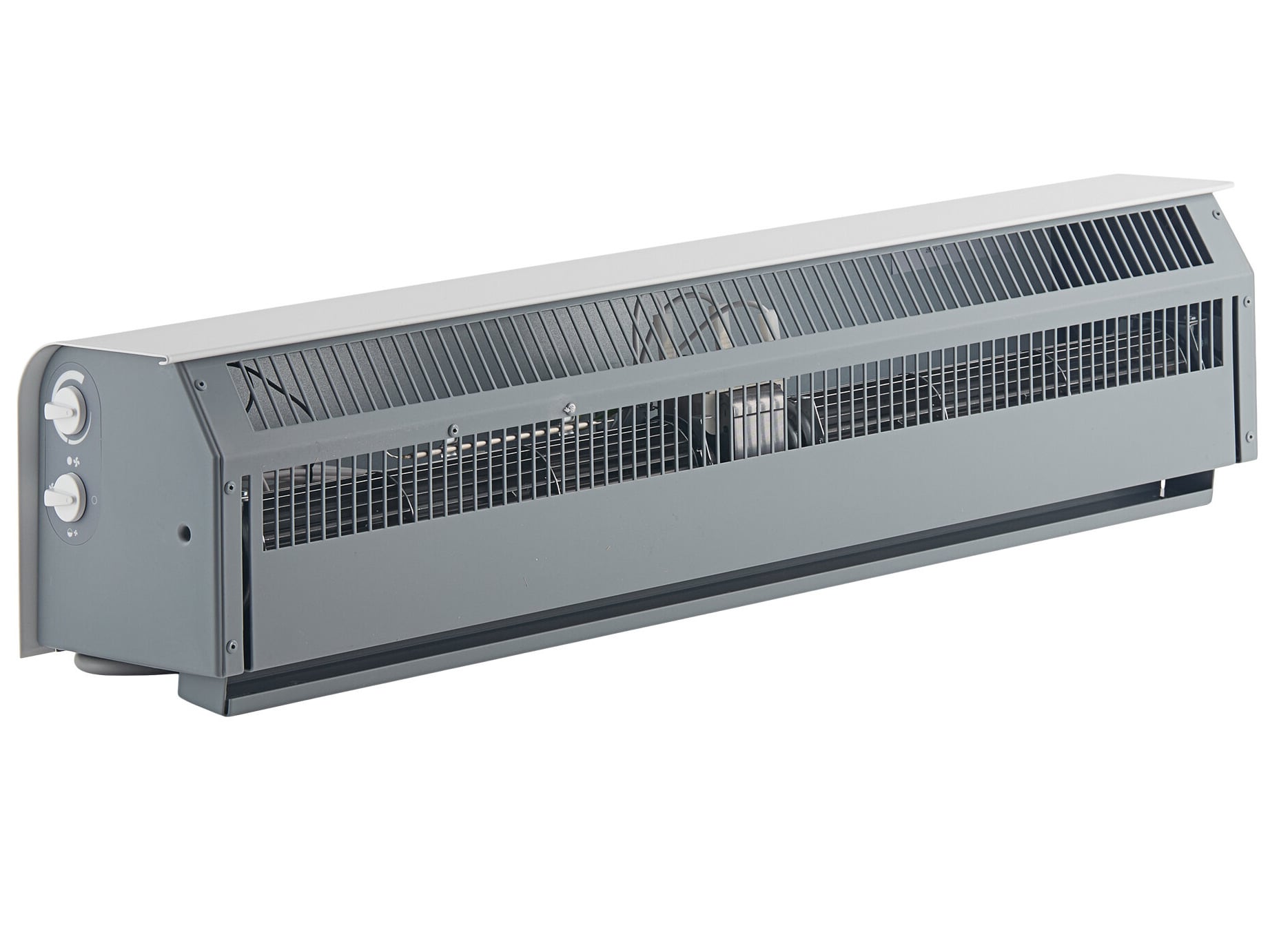

  • Corrosion-proof housing is made of zinc-plate and powder-coated steel panels
UPC Code:841530045419

Schwank Ltd AC-ME32-20-WH Specs

Quantity
1/Each
Shipping Weight
17.9 lb.
Width
31 1/8 Inches
Depth
6 5/8 Inches
Height
6 1/8 Inches
Amps
18 - 19 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
208 Volts
Wattage
2,500 - 3,700 Watts
Airflow Rating
200 CFM
Color
White
Features
Electric Heater
Installation Type
Surface Mounted
Material
Powder Coated Steel  Zinc-Plated Steel
Noise Level
50 dB
Plug Type
Hardwire
Speeds
3 Speed
Style
Drive-Thru Window
Type
Air Curtains

Schwank Ltd AC-ME32-20-WH Details

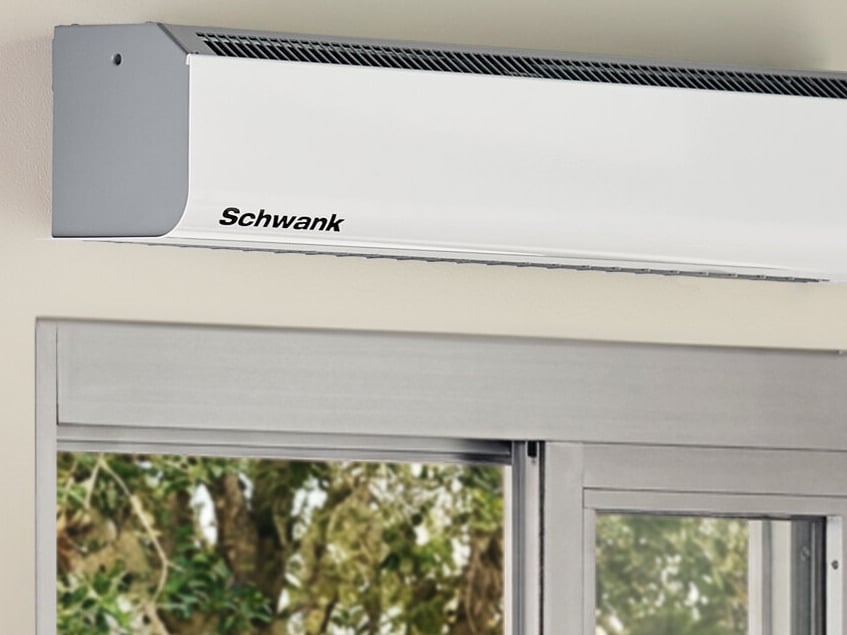

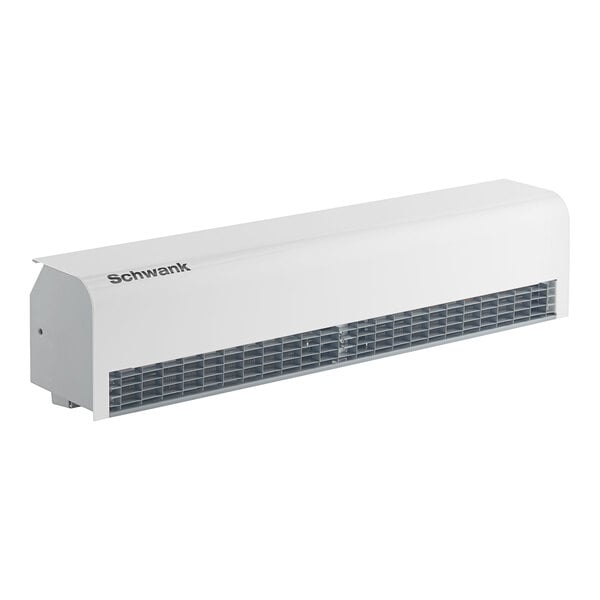

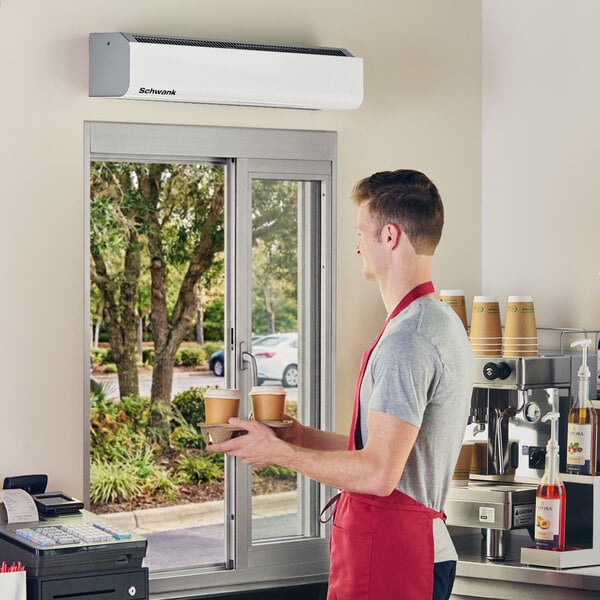

Protect the temperature inside your establishment with this Schwank Swift5 electric air curtain. This air curtain features a crisp white color and is ideal for small openings like kiosks, retail windows, and drive-thru windows where a long, narrow air flow is required. It creates a temperature separating air barrier to prevent cold air from pushing in and hot air from going out, reducing heat and AC loss through the opening.

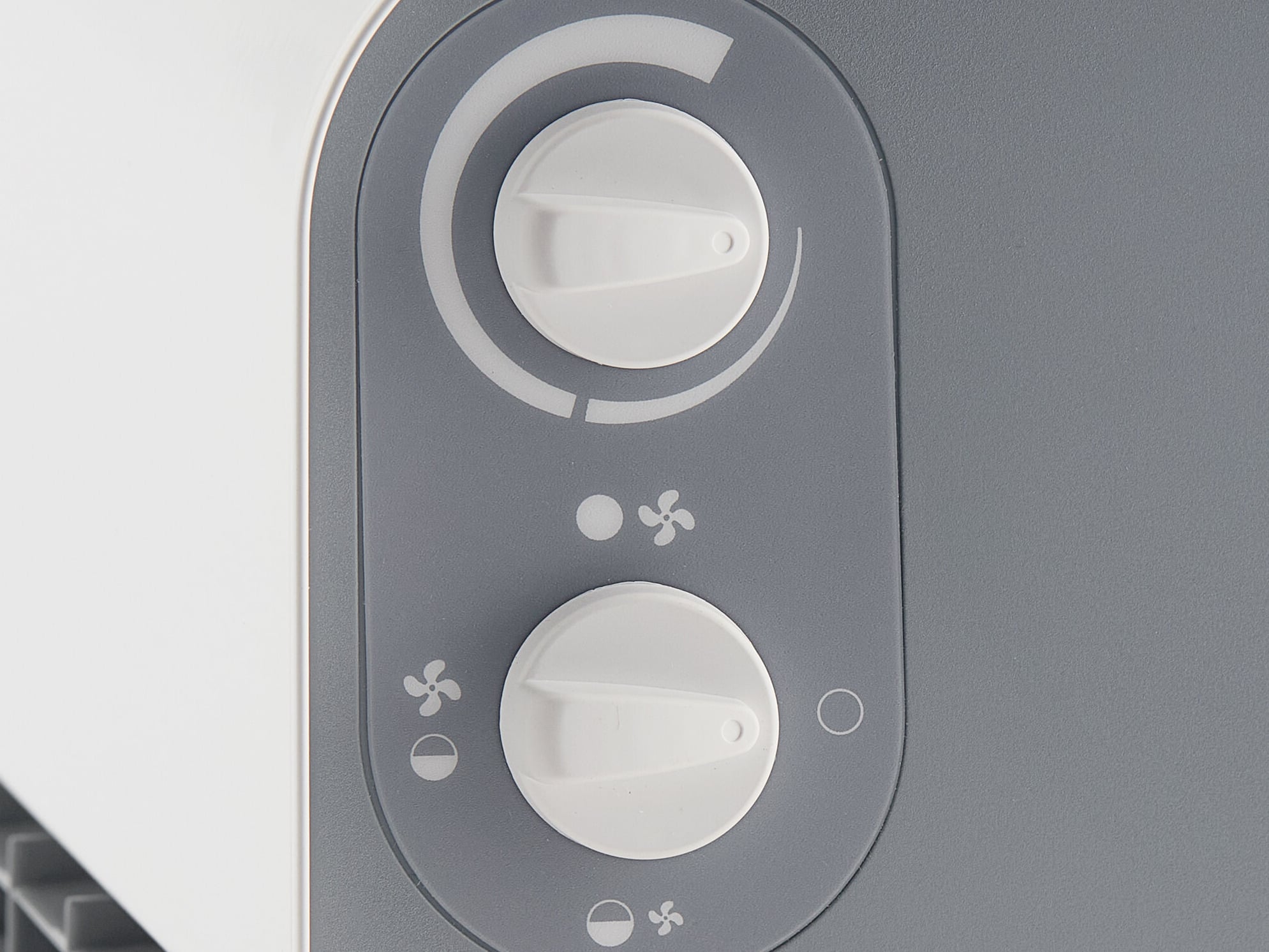

This air curtain features a built-in control and comes with a 4 5/16' cable without a plug. It has a compact design and can be easily positioned. Plus, it's simple to angle on the bracket, which can be used for both wall and ceiling mounting up to 5', and it boasts low sound levels. Since the corrosion-proof housing is durable and made of zinc-plate and powder-coated steel panels, you can be sure that it will look great and stand up to hard use even in the most demanding applications. It requires a 208V electrical connection for operation.

Overall Dimensions:
Width: 31 1/8"
Depth: 6 5/8"
Height: 6 1/8"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Why are the dimensions in the title different from the actual dimensions in the description?

The dimensions given in the title represent an “industry standard” – a basic size that most manufacturers produce and that people in the industry use to easily identify a type of item. However, not all manufacturers produce their products the same way. For example, a title might say 12", but the item may actually be slightly larger or smaller. We include both measurements to help you find the product you’re looking for, and so you also know how large the product actually is.
Ask your own question!
  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
