$3,929.00/Each
Ships free with PlusEarn up to $117.87 back (11,787 points)with a Webstaurant Rewards Visa® Credit Card
Product Overview
- Reduces energy loss and deters insects
- Recessed design for a sleeker look
- Includes a wired remote control
- Unheated design provides air flow at ambient temperatures
- Designed to be mounted on any doorway up to 11 1/2' high
- Multiple units may be lined up to cover large entryways
- Maximum air flow rate of 900 cfm
- 240V, 1 phase
Other Products from this Line
- Quantity
- 1/Each
- Shipping Weight
- 99 lb.
- Width
- 64 3/4 Inches
- Depth
- 19 1/8 Inches
- Height
- 13 3/4 Inches
- Amps
- 19.1 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 240 Volts
- Color
- White
- Features
- Made in America
- Installation Type
- Recessed
- Noise Level
- 58 - 60 dB
- Plug Type
- Hardwire
- Speeds
- 2 Speed
- Style
- Back Door Front Door
- Type
- Air Curtains

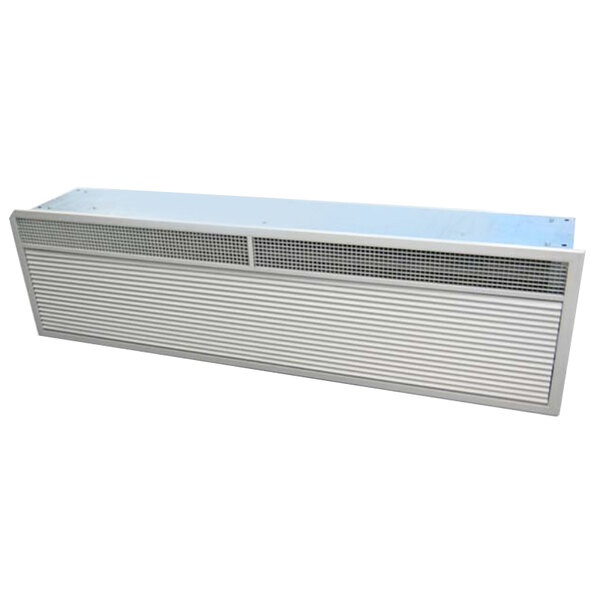

Schwank Ltd AC-HA47-23-R Details
This Schwank AC-HA47-23-R 64 3/4" commercial air curtain creates an invisible wall of air that will stop outside air, pollutants, and insects from entering your business. Ideal for grocery stores, restaurants, and warehouses, this air curtain will also reduce your overall energy costs by keeping cool air in during the summer and preventing heat from escaping during winter.
This air curtain is made for a recessed installation so that it practically disappears in your decor and blends in to your entry way for a sleek appearance. At the high setting, this model can put out a maximum of 900 cfm. To adjust the speed setting and turn the unit on or off, this unit comes with a wired control included so you don't need to worry about purchasing a controller separately.
Mounting hardware is also included with this air curtain so that you can quickly and easily install it over your doorway. If your door is especially wide, don't worry! You can line up multiple air curtains over a single door, if needed, to provide optimum protection. In order to operate effectively, this air curtain is designed to be mounted on doorways up to 11 1/2' high. A 240V, 1 phase electrical connection is required.
Overall Dimensions:
Width: 64 3/4"
Depth: 19 1/8"
Height: 13 3/4"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Made in America
This item was made in the United States of America.
UL Listed, US
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
CSA, Canada
This product has been certified by the Canadian Standards Association (CSA) to meet requirements for electrical, plumbing, and/or mechanical products in Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
