Product Overview

  • Reduces energy loss and deters insects
  • Includes a wired remote control
  • Electric heater with an adjustable heating scale
  • Includes mounting hardware for convenient installation
  • Designed to be mounted on any doorway up to 10' high
  • Multiple units may be lined up to cover large entryways
  • Maximum air flow rate of 1060 cfm
  • 208V, 3 phase, 6 / 12 kW
UPC Code:400012462757

Schwank Ltd AC-CE66-20 Specs

Quantity
1/Each
Shipping Weight
51 lb.
Width
66 Inches
Depth
11 Inches
Height
8 Inches
Amps
32.7 Amps
Hertz
60 Hertz
Phase
3 Phase
Voltage
208 Volts
Wattage
6,000 - 12,000 Watts
Color
White
Features
Electric Heater  Made in America
Installation Type
Surface Mounted
Plug Type
Hardwire
Speeds
2
Style
Back Door  Front Door
Type
Air Curtains

Schwank Ltd AC-CE66-20 Details

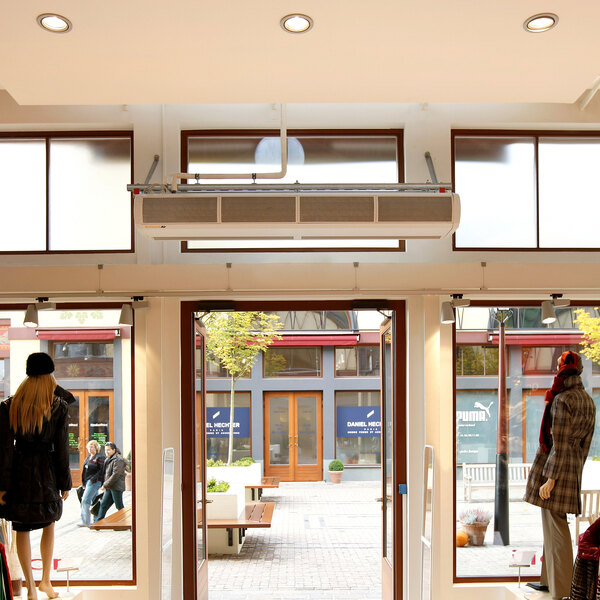

This Schwank AC-CE66-20 66" commercial air curtain with an electric heater creates an invisible wall of air that will stop outside air, pollutants, and insects from entering your business. Ideal for grocery stores, restaurants, and warehouses, this air curtain will also reduce your overall energy costs by keeping cool air in during the summer and preventing heat from escaping during winter.

This surface mounted air curtain features a brushed finish front panel so that it looks good in your entryway. At the high setting, this model can put out a maximum of 1060 cfm. To adjust the speed setting, turn the unit on or off, and control the heat output, this unit comes with a wired remote control included so you don't need to worry about purchasing a controller separately.

Mounting hardware is also included with this air curtain so that you can quickly and easily install it over your doorway. If your door is especially wide, don't worry! You can line up multiple air curtains over a single door, if needed, to provide optimum protection. In order to operate effectively, this air curtain is designed to be mounted on doorways up to 10' high. A 208V, 3 phase, 6 / 12 kW electrical connection is required.

Overall Dimensions:
Width: 66"
Depth: 11"
Height: 8"

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US

    UL Listed, US

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.

  • CSA, Canada

    CSA, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for electrical, plumbing, and/or mechanical products in Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
