Product Overview

  • Reduces energy loss and deters insects
  • Recessed design for a sleeker look
  • Includes a wired remote control
  • Electric heater with an adjustable heating scale
  • Designed to be mounted on any doorway up to 9' high
  • Multiple units may be lined up to cover large entryways
  • Maximum air flow rate of 740 cfm
  • 208V, 3 phase, 4.5 / 9 kW
UPC Code:841530042418

Schwank Ltd AC-CE47-20-R Specs

Shipping Weight
44 lb.
47 Inches
14 Inches
8 Inches
24.5 Amps
60 Hertz
3 Phase
208 Volts
4,500 - 9,000 Watts
Electric Heater  Made in America
Installation Type
Plug Type
Back Door  Front Door
Air Curtains

Schwank Ltd AC-CE47-20-R Details

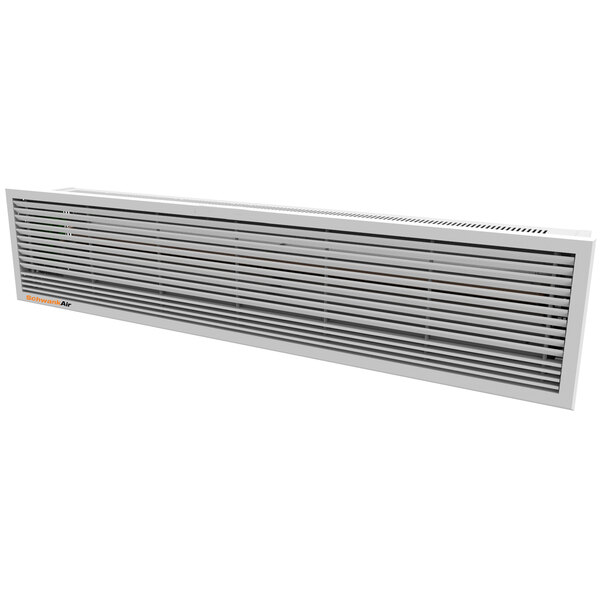

This Schwank AC-CE47-20-R 47" commercial air curtain with an electric heater creates an invisible wall of air that will stop outside air, pollutants, and insects from entering your business. Ideal for grocery stores, restaurants, and warehouses, this air curtain will also reduce your overall energy costs by keeping cool air in during the summer and preventing heat from escaping during winter.

This air curtain is made for a recessed installation so that it practically disappears in your decor and blends in to your entry way for a sleek appearance. At the high setting, this model can put out a maximum of 740 cfm. To adjust the speed setting, turn the unit on or off, and control the heat output, this unit comes with a wired remote control included so you don't need to worry about purchasing a controller separately.

Mounting hardware is also included with this air curtain so that you can quickly and easily install it over your doorway. If your door is especially wide, don't worry! You can line up multiple air curtains over a single door, if needed, to provide optimum protection. In order to operate effectively, this air curtain is designed to be mounted on doorways up to 9' high. A 208V, 3 phase, 4.5 / 9 kW electrical connection is required.

Overall Dimensions:
Width: 47"
Depth: 14"
Height: 8"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US

    UL Listed, US

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.

  • CSA, Canada

    CSA, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for electrical, plumbing, and/or mechanical products in Canada.

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
