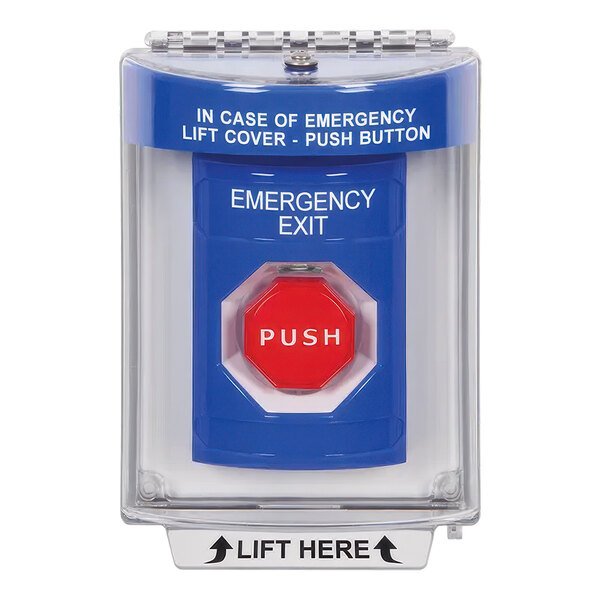

Safety Technology International Stopper Station Blue "Emergency Exit" Push Button Switch with Pneumatic Adjustable Timer and Flush-Mount Universal Stopper Cover with Horn SS2448EX-EN

Safety Technology International, Inc. SS2448EX-EN Details

Enhance the safety of your indoor space with this Safety Technology International Stopper Station "Emergency Exit" push button switch. This unique switch features a clear, highly durable Universal Stopper protective cover and a curved design that help prevent accidental activation, vandalism, and unintentional damage, ensuring that it is only used in emergency situations. The bold blue housing with the words "Emergency Exit" in bright white clearly indicates the purpose of the switch, while the bold red button with the word "Push" in bright white draws your attention to its activation point.

Constructed with durable polycarbonate and a 5VA-rated stainless steel backplate, this push button switch is built to withstand the demands of commercial environments, lasting at least three years without breaking. The cover has a flush-mounted design for a compact installation, and it features a 105 dB warning horn that sounds when the cover is lifted. For added convenience, when the horn is triggered, it doesn't affect legitimate operation. Designed for indoor use, it operates effectively in temperatures ranging from 15 to 120 degrees Fahrenheit, making it suitable for a variety of settings.

The 12-24 VAC / VCD LED illumination bar can be used as a status bar, indicating activation with three color options - red, green, and white - to suit your needs. The pneumatic adjustable timer switch offers added functionality, with the ability to open or close a circuit and a timed delay before resetting. It features a timer range of 4-60 seconds +/- 15% with a +/- 10% repeat accuracy, and with a 10 amp resistive rating at 120-240 VAC and a timer life of over 1,000,000 cycles, the pneumatic switch is ideal for security applications. The configuration includes one Form "Z" contact block with one set of N.O. and one set of N.C. contacts for easy installation.

Overall Dimensions:
Width: 8 1/8"
Depth: 5 3/8"
Height: 2 11/16"
