Name: Quick Ship Primo SENTINEL-Xr20 Black Matte 20 kg (44 lb.) Coffee Roaster with External Cyclone
Brand: Primo
SKU: 684XR20
Price: 41749 USD
Availability: OutOfStock

A Quick Ship Primo SENTINEL-Xr20 coffee roaster with an external cyclone.

A Quick Ship Primo SENTINEL-Xr20 coffee roaster with a digital temperature display.

Note: Glossy model shown

Only

$41,749.00/Each

Notify me when this product is back in stock

You will only be emailed once the product becomes available. We won't add you to our email list or share your data.

Earn up to $1,252.47 back (125,247 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 2-3 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

Pre-built unit ready to quick ship within days
Compatible with roast profiling software like Cropster, Artisan, Roast Logger, and others
High-efficiency infrared gas burners
Independent drum and cool-down motors allow you to roast and cool beans simultaneously
220V, 3/4" natural gas connection

UPC Code:400015464895

View all Primo Commercial Coffee Roasters

Bring expertly-crafted coffee to your customers with the Primo matte black 20 kg (44 lb.) coffee roaster!

Featuring a 20 kg (44 lb.) drum capacity and capable of producing up to 65 kg (144 lb.) per hour, it's an excellent choice whether you're just getting your roasting business started, or you're looking to expand production. This coffee roaster comes standard with plenty of features designed to help you get set up and roasting quickly. It features an attractive matte black finish that looks great in any installation. This roaster requires a 220V electrical connection and must be hard-wired using a plug such as a NEMA L6-20P (sold separately). It also requires a 3/4" natural gas connection. This roaster comes with (2) 6" exhaust vents. Additionally, these units are manufactured and ready to order so they can ship immediately.

Made in America
This item was made in the United States of America.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
3/4" Gas Connection
This unit comes with a 3/4" gas connection to be installed by a professional.

Perfectly Roasts Beans

It comes standard with high-efficiency infrared burners and a single-wall roasting drum that is excellent for most applications. Inside the drum, Primo's specially-designed paddles work to keep mixing consistent and ensure that your product receives the right blend of conductive and convective heat for perfectly roasted beans and rich, flavorful coffee every time. This unit includes 2 thermocouples to measure the drum air temperature and the bean temperature - this allows you to track your temperatures and create the perfect roast.

Streamlines Workflow

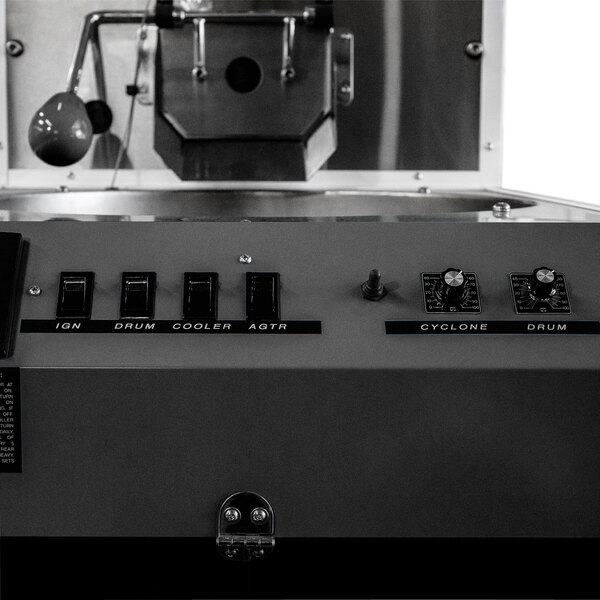

For the operator who wants full control over the roast process, this unit gives you the ability to manipulate as much or as little of your workflow as you like and make changes. A digital time / temperature touchscreen display makes it easy to see how the roast is progressing. This unit features pre-set, no-fuss drum speed and airflow speed settings, meaning the airflow and drum speed stay consistent throughout the roast.

Connects to Software

This unit comes standard with a USB connection port and is compatible with all standard profiling software, including popular products like Cropster, Artisan, and Roast Logger. This is especially useful for operators looking to log their data or create roast profiles. Connect a tablet or computer via USB to track your roast's turning point, first crack, and how bean temperature is progressing, allowing you to replicate successful recipes in the future and provide a consistent product to your customers time after time.

Smart Features

Additionally, this roaster lets you begin roasting a second batch without interruption while the first batch is cooling, thanks to independent drum and cool-down motors. The external cyclone features an accessible chaff bin at the bottom, making it easy to collect and dispose the husks from green coffee beans as they separate during roasting. Additionally, hinged sidewalls make cleaning easy. Other smart features include two viewing windows on the front of the roaster, which let you check on the progression of your roast visually, and a sample trier that lets you pull out a few beans for a closer look at color, smell, and other variables during the roast cycle.

Customer Q&AAsk a Question

Does this external cyclone coffee roaster have any additional installation requirements?

Certain areas may require the use of an afterburner to ensure any expelled fumes are properly handled for disposal. Be sure to check the relevant regulations in your state / municipality. Additionally, because this unit has a separate, external cyclone, additional ventilation may be required over the roaster.

How easy is it to install this coffee roaster?

Primo designs its roasters to make installation easy so that you can get up and running as quickly as possible!

Clearances: Only 18” required on all sides.

Gas Connections: Standard plumbing connections (1/2” or 3/4”) work with most facilities.

Electric: 115V models are plug and play with a standard 3-prong wall outlet. 220V models require hard-wired installation.

Exhaust: Works with most standard building connections. Please note though that each local jurisdiction has different rules and regulations regarding exhaust and fumes, which may affect your specific installation needs.

As with installations on all similar types of equipment, it is encouraged that you work with a professional for any HVAC, gas plumbing, and hard-wired electrical installation needs to make setup even easier when your roaster arrives. If you need assistance or have a specific question about installing a roaster, please use the live chat feature at the top left of your screen. One of our customer solutions representatives would be happy to assist you in getting an answer!

I want to add my logo or choose different colors - how can I customize my roaster?

We offer roasters that are available in a pre-configured, ready-to-ship format, and roasters that offer some core customization options to provide more control over the look and functionality of your roaster. Items that are customizable will have "Customizable" in the title and dropdown options for you to choose from.

However, Primo offers a wide range of customization options even beyond this, and if you want to build a fully customized roaster, you can incorporate your logo, and do other things like specify the body, base, and trim colors (over 180 color options available). Please reference the customization brochure on this product page, decide your options, and contact the Customer Solutions team to begin the ordering process.

Will this Xr20 roaster fit through my doorway?

The crate dimensions of this roaster are listed below, for the purposes of determining whether it will fit through your doorways. Note that a pallet jack will be needed to move and install this item.

Roaster:
Width: 43”
Length: 83”
Height: 71”

Cyclone:
Width: 40”
Length: 48”
Height: 85”

Compare to Other Products

Item #: 684xr20Quick Ship Primo SENTINEL-Xr20 Black Matte 20 kg (44 lb.) Coffee Roaster with External Cyclone
Price:$41,749.00/Each

220 Volts

Black

20 kg. (44 lb.)

65 kg. (144 lb.)

Item #: 684xr15cbmPrimo RAVEN-Xr15 Customizable Black Matte 15 kg (33 lb.) Coffee Roaster with External Cyclone
Price:$36,299.00/Each

220 Volts

Black

15 kg. (33 lb.)

43 kg. (95 lb.)

Item #: 684xr20cblPrimo SENTINEL-Xr20 Customizable Blue 20 kg (44 lb.) Coffee Roaster with External Cyclone
Price:$41,649.00/Each

220 Volts

Blue

20 kg. (44 lb.)

65 kg. (144 lb.)

Item #: 684xr30cblPrimo WARDEN-Xr30 Customizable Blue 30 kg (66 lb.) Coffee Roaster with External Cyclone
Price:$56,279.00/Each

220 Volts

Blue

30 kg. (66 lb.)

103 kg. (228 lb.)

Item #: 684xr30cbmPrimo WARDEN-Xr30 Customizable Black Matte 30 kg (66 lb.) Coffee Roaster with External Cyclone
Price:$56,279.00/Each

220 Volts

Black

30 kg. (66 lb.)

103 kg. (228 lb.)

Overall Dimensions:

Width:: 80 Inches
Depth:: 90 Inches
Height:: 78 Inches
