Product Overview
- Maintains temperatures from 200 to 375 degrees Fahrenheit
- Hermetically sealed switch prevents contamination
- Ideal for millivolt and low level electrical loads
- 24" capillary and multi-positional mounting options ensure optimal placement
- 1/4" NPT fitting, 120V
- Quantity
- 1/Each
- Shipping Weight
- 0.57 lb.
- Width
- 2 15/16 Inches
- Depth
- 2 5/16 Inches
- Height
- 1 11/16 Inches
- Bulb Length
- 5 7/16 Inches
- Bulb Diameter
- 5/16 Inch
- Type
- Thermostats

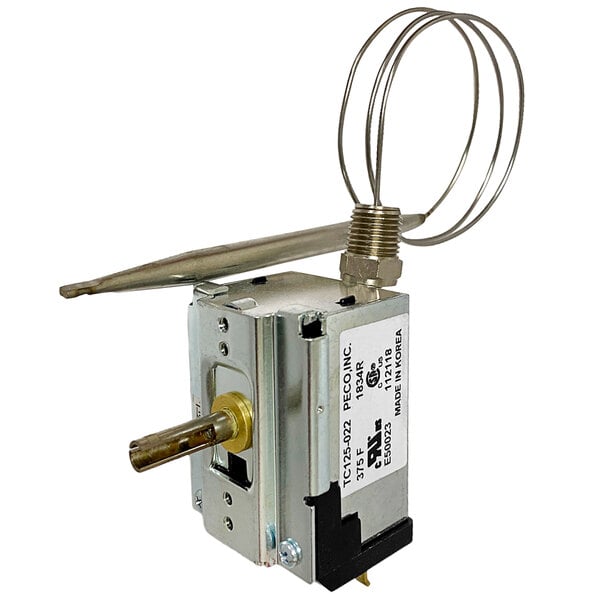

PECO Control Systems TC125-022 Details
Maintain accurate temperatures for your cooking equipment with this PECO Control Systems TC125-022 TC125 series millivolt temperature control thermostat. Ideal for use with pilots and low voltage applications, this thermostat has a hermetically sealed switch that makes it perfect for use in environments that need to be resistant to contamination. In a millivolt thermostat, temperature is measured with the expansion or contraction of fluid that activates a sensor to cut power on a heating device, preventing overtemperature incidents and increasing energy efficiency overall. When the temperature drops and the liquid pressure changes, the sensor reverts to its original position, enabling heating or cooling to resume.
This thermostat is designed to accommodate 1/4" NPT fittings and includes a stainless steel sensor bulb compatible with temperatures ranging from 200 to 375 degrees Fahrenheit. Its multi-positional design allows for proper placement in your application whether you are working with existing equipment or installing something new. The included 24" capillary line provides the flexibility to access your desired position with ease.
Overall Dimensions:
Width: 2 15/16"
Depth: 2 5/16"
Height: 1 11/16"
Bulb Dimensions:
Length: 5 7/16"
Diameter: 5/16"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Is this part something I can install myself?
CE Listed
This product complies with the standards imposed by Conformance European (CE).
CSA, Canada
This product has been certified by the Canadian Standards Association (CSA) to meet requirements for electrical, plumbing, and/or mechanical products in Canada.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
