Scratch and Dent Hobart LXNR-5 Advansys High Temperature Undercounter Dishwasher with Energy Recovery - 208-240V, 3 Phase

Item number  425lxnr5MFR number  LXNR-5

You are viewing a product from WebstaurantStore Outlet.

Ships free withLearn More
Free Shipping

$7,784.17/EA

Purchase This Item New for $10,378.90

Condition:Outlet

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Cleans up to 30 racks per hour with 0.62 gallons of water per cycle
  • Easy to use with intuitive, top-mounted touchscreen control panel
  • Wi-Fi connectivity allows you to monitor the unit through the SmartConnect app
  • Energy recovery system eliminates steam and minimizes energy consumption
  • AutoClean shutdown cycle ensures peak efficiency and hygiene
View All Products From HobartView all Hobart Under Counter Dishwashers

Other Products from this Line

This is an outlet item

Any warranty information listed in the manual is void unless otherwise stated and we will not be able to accept any returns.

Return Policy

Please note that all items are sold as is, and all sales are final. We guarantee these items will work on arrival following installation in accordance with the product documentation. We recommend that you carefully read the product description, damage/use description, and other related product literature such as specification sheets and product manuals before placing your order.

Please inspect each item carefully when it arrives at your place of business. If you observe any damage not detailed in the description on this website that may have been caused during shipping, do not sign for the delivery and contact us ASAP.

Cart Policy

Because Outlet items sell quickly on a first-come, first-serve basis, simply placing the item in your shopping cart for checkout at a later time does not guarantee a "hold" on the item.

Warranty Policy

Note that Outlet products are sold without any warranty. If you have any questions or concerns about a product even after reading the description and product literature, please contact us.

Hobart LXNR-5 Specs

Quantity
1/Each
Shipping Weight
215 lb.
Width
23 15/16 Inches
Depth
26 3/4 Inches
Height
33 1/4 Inches
Amps
24.9 Amps
Hertz
60 Hz
Phase
3 Phase
Voltage
208 - 240 Volts
Booster Wattage
4.9 Kilowatts
Features
App Connectivity Booster Heater Included Built-In Drain Pump Energy Recovery Energy Star Qualified Made in America NSF Certified
High or Low Temp
High Temp
Horsepower
3/16 hp 4/5 hp
Material
Stainless Steel
Number of Wash Cycles
3 Wash Cycles
Plug Type
Hardwire
Racks (per Hour)
13 - 30
Style
Rack
Type
Undercounter Dishwashers
Wash Cycle Time
119 - 278 Seconds
Wash Tank Capacity
2.9 gal.
Water Inlet Size
3/4 Inches
Water Temperature
150 - 180 Degrees F
Water Usage
0.62 Gallons Per Cycle

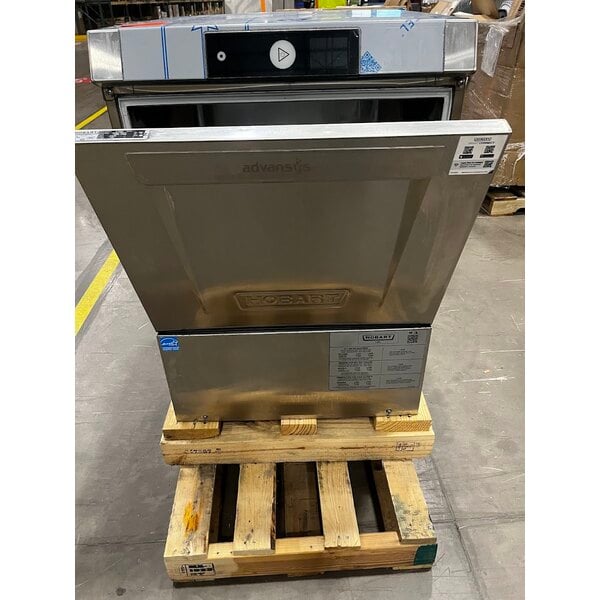

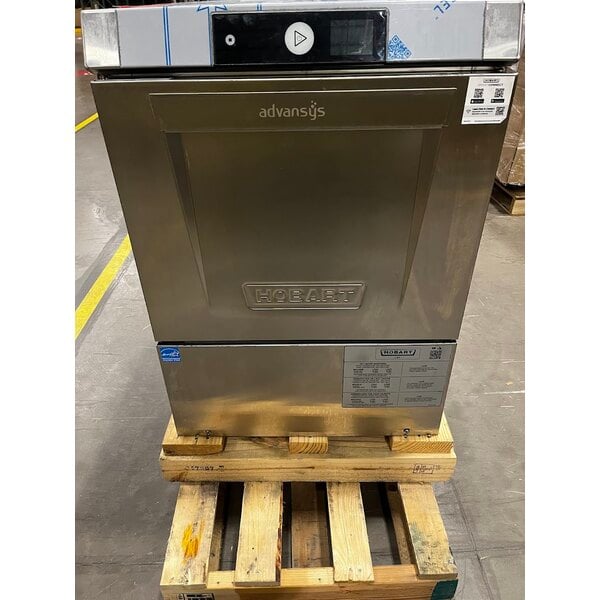

Scratch and Dent Hobart LXNR-5 Details

  • New; never used
  • Out of original packaging
  • Minor scuffs on the front

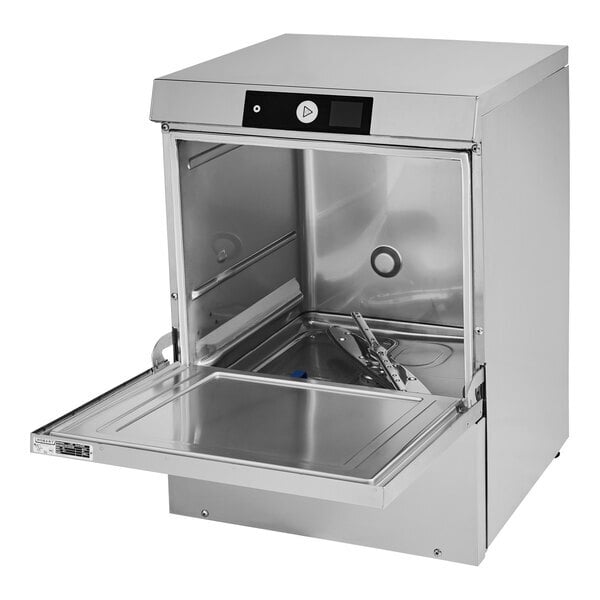

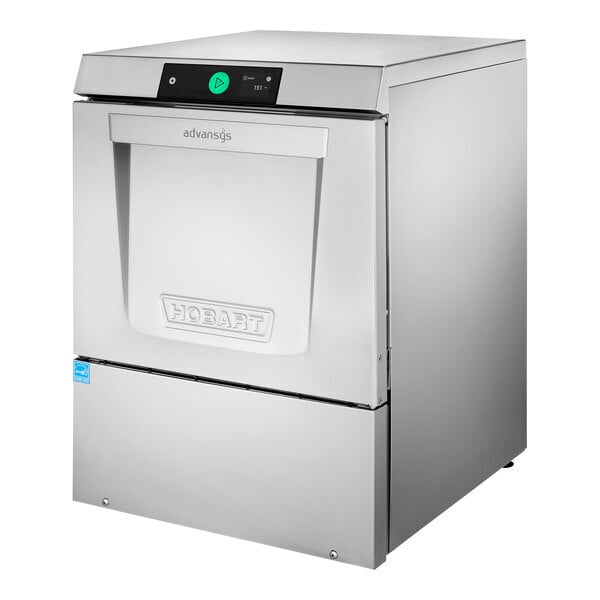

Designed for busy kitchens, the Hobart Advansys high temperature undercounter dishwasher delivers ultimate convenience and reliability. This dishwasher can clean up to 30 racks per hour, while only using 0.62 gallons of water for a standard cycle. Equipped with light, normal, and heavy modes, each cycle begins with a soft start and fills automatically. Featuring a two-level racking capability (kit sold separately), this particular machine sanitizes with hot water. An integrated Sense-A-Temp booster heater increases temperatures by 70 degrees Fahrenheit for a final rinse water temperature of 180 degrees Fahrenheit. Plus, this machine's energy recovery system eliminates steam in the dishroom and saves you up to 15% on energy consumption.

This washer boasts a heavy-duty stainless steel construction, snap-in revolving rinse arms, and anti-clogging wash arms that cleanse your dishes every time. Two-stage wash tank filtration helps to minimize rewashes, while the automatic pumped drain removes wash and rinse water at the end of cycles. To simplify care and maintenance of your unit, it has an AutoClean cycle that automatically rinses and flushes the interior once the machine has shut down. It also features an innovative automated deliming cycle with booster guard, which will notify you when it's time to run and dispense for you.

Incredibly user-friendly, this dishwasher is built with a top-mounted color touchscreen control panel. Wi-Fi connectivity allows you to monitor the unit through the SmartConnect app, which provides you with temperature logs, error code reports, and usage analysis. Plus, advanced service diagnostics and error notifications like low temperature or chemical alerts also make it easy to isolate symptoms for troubleshooting, reducing the need for expensive and time-consuming service calls. For added reliability, this washer even comes with an energy saver mode!

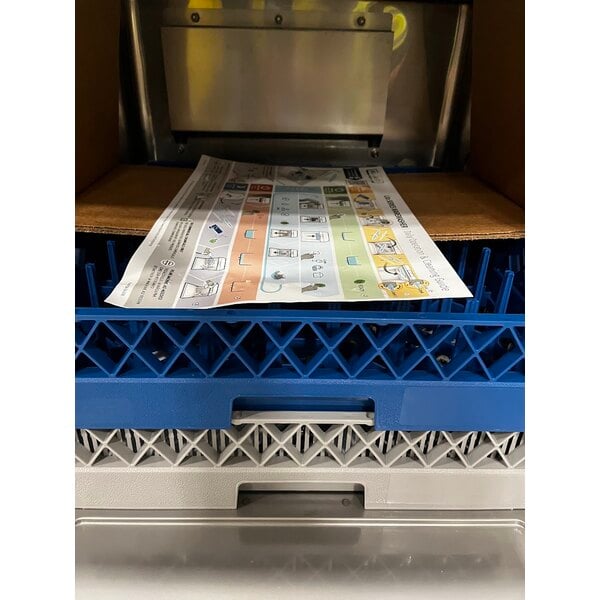

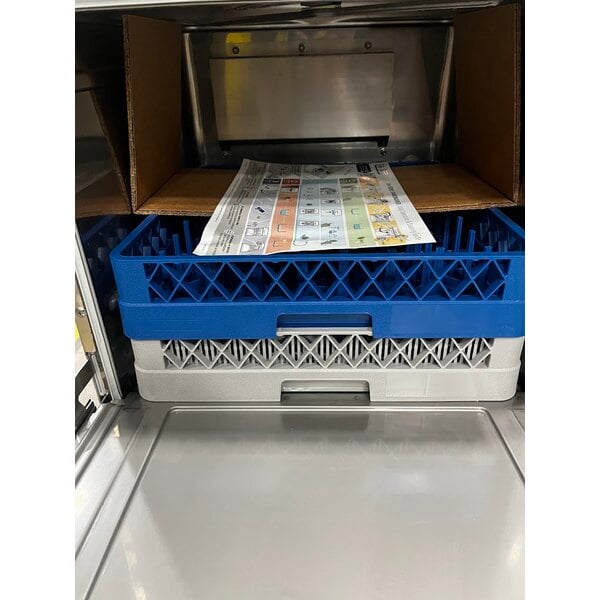

Detergent, rinse aid, and delime pumps are included to make it easy to get this unit up and running! Featuring a convenient 17" door opening, (1) 20" x 20" peg rack and (1) 20" x 20" combination rack come standard with this unit, allowing you to clean a variety of bowls, plates, and other dishes with ease. The pot and pan mode also allows you to easily fit and clean a single sheet pan, as well as other cookware. A 208-240V, 3 phase electrical connection is required for operation.

Overall Dimensions:
Width: 23 15/16"
Depth: 26 3/4"
Height: 33 1/4"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • NSF Certified

    NSF Certified

    This item is certified by NSF to applicable standards.

  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection for water supply.

  • UL Certified

    UL Certified

    This product is certified to applicable standards and requirements by UL Solutions.
