This economy mid size grease trap is a good value. Thread fitting was a little off but my plumber was able to make it work.

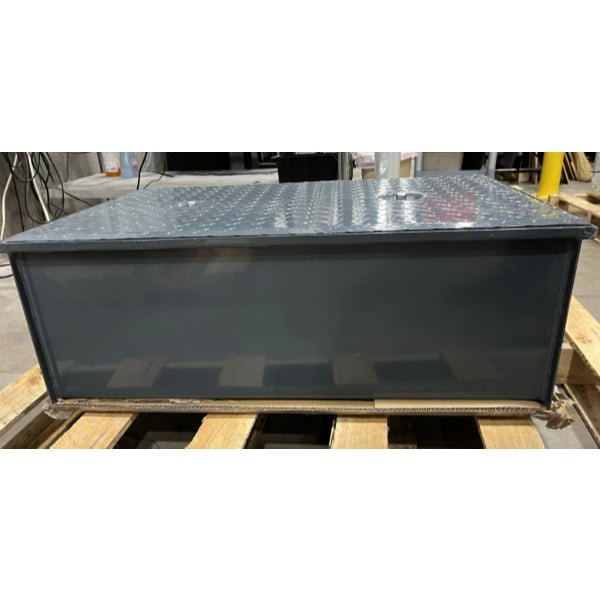

Scratch and Dent Watts WD-20-L-THD 40 lb. Low-Profile Grease Trap with Threaded Connections
Item number 320wd20lthdMFR number WD-20-L-THD
Works With
Condition:Outlet
Quick Shipping
Usually ships in 1 business day
Product Overview
- Prevents grease from entering plumbing and septic systems
- 11-gauge cold rolled steel body with acid-resistant baked epoxy coating
- 20 GPM flow rate and 40 lb. grease capacity

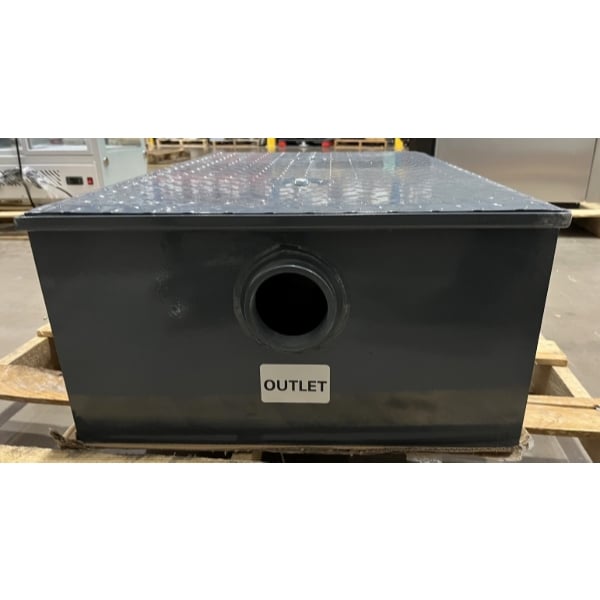

- 3" threaded inlet & outlet
- Features a deep seal trap with cleanout
Works With
This is an outlet item
Any warranty information listed in the manual is void unless otherwise stated and we will not be able to accept any returns.
Return Policy
Please note that all items are sold as is, and all sales are final. We guarantee these items will work on arrival following installation in accordance with the product documentation. We recommend that you carefully read the product description, damage/use description, and other related product literature such as specification sheets and product manuals before placing your order.
Please inspect each item carefully when it arrives at your place of business. If you observe any damage not detailed in the description on this website that may have been caused during shipping, do not sign for the delivery and contact us ASAP.
Cart Policy
Because Outlet items sell quickly on a first-come, first-serve basis, simply placing the item in your shopping cart for checkout at a later time does not guarantee a "hold" on the item.
Warranty Policy
Note that Outlet products are sold without any warranty. If you have any questions or concerns about a product even after reading the description and product literature, please contact us.
- Quantity
- 1/Each
- Shipping Weight
- 139.5 lb.
- Length
- 34 7/8 Inches
- Width
- 22 7/8 Inches
- Height
- 11 3/4 Inches
- Capacity
- 40 lb.
- Features
- Flow Control Low Profile PDI Certified Threaded Connections
- Flow Rate
- 20 GPM
- Inlet / Outlet Size
- 3 Inches
- Material
- Steel
- Type
- Grease Traps
Scratch and Dent Watts WD-20-L-THD Details
- New; never used
- Out of original packaging

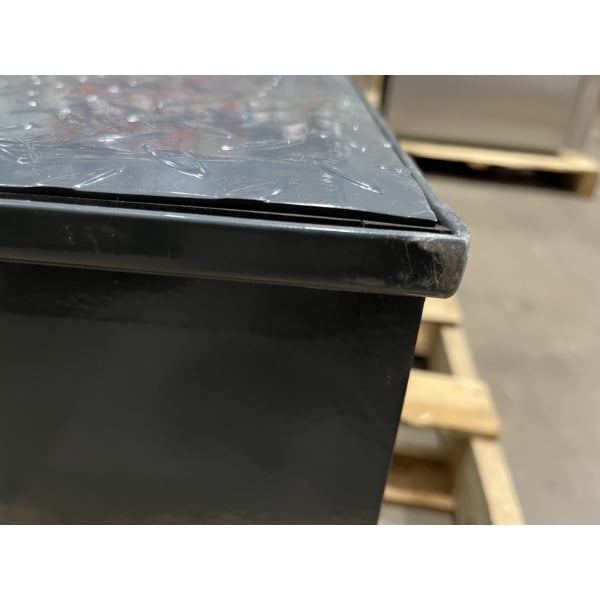

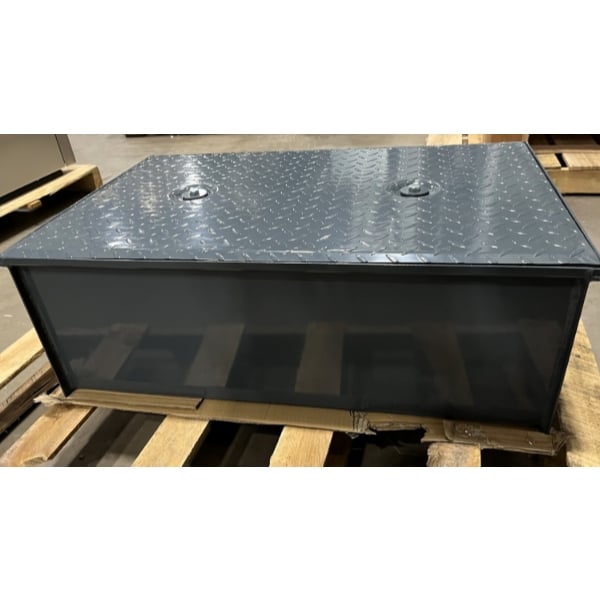

- Front top right corner is scratched

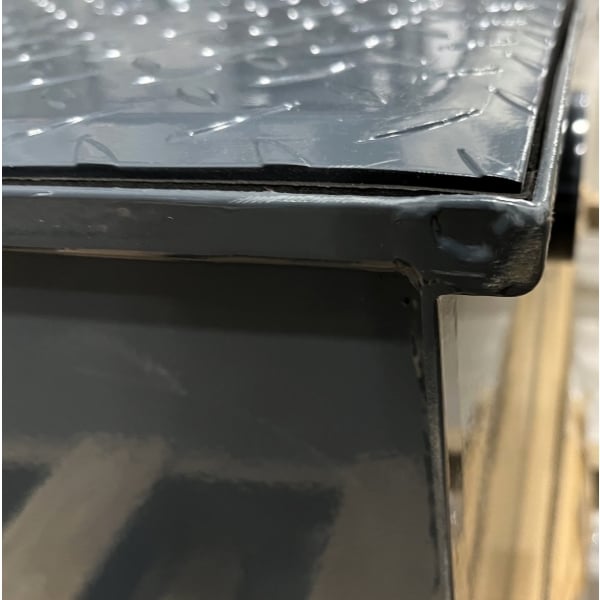

- Scratches on the left side top right corner

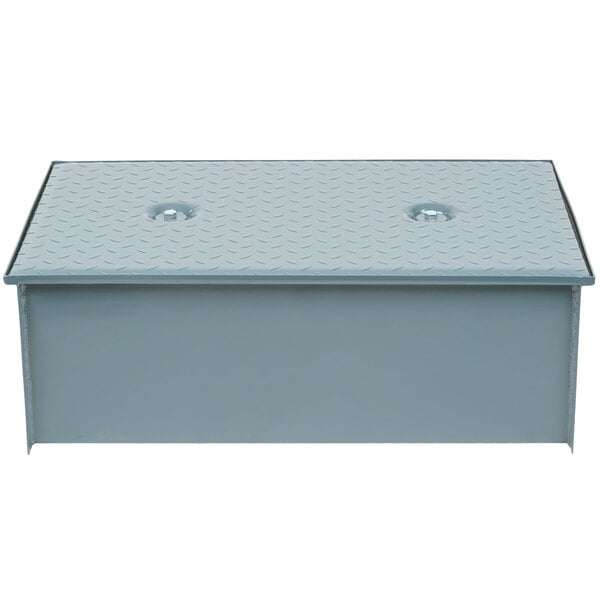

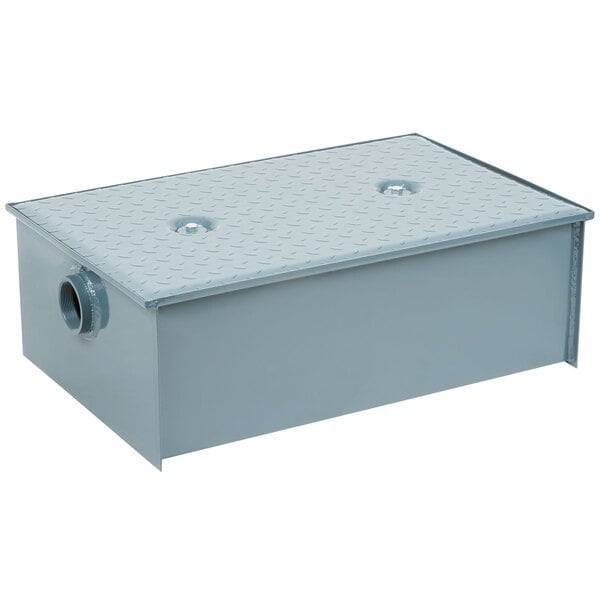

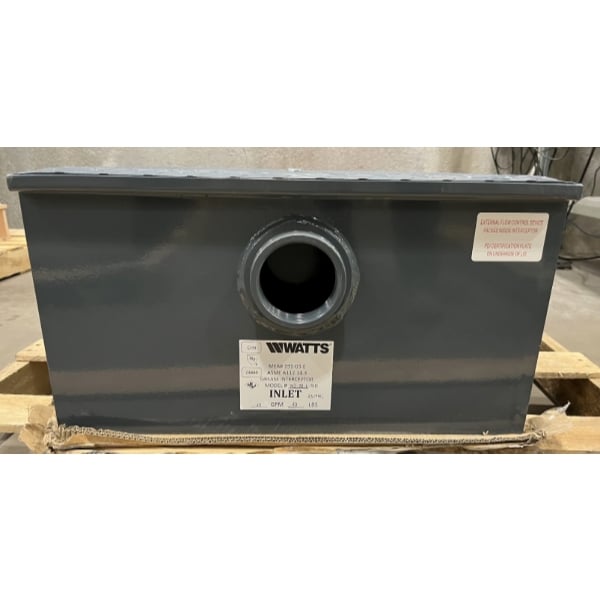

The Watts 40 lb. low profile grease trap with threaded connections prevents greasy substances from entering plumbing systems, septic fields, and wastewater treatment facilities where they cannot be processed properly and could harm the environment. This unit has a flow restrictor on the inlet side of the interceptor that slows incoming effluent and redirects it through baffling inside the grease trap. As the flow is gradually slowed, lighter than water substances accumulate inside the trap above the static water line. This low profile design is ideal for low clearance applications.

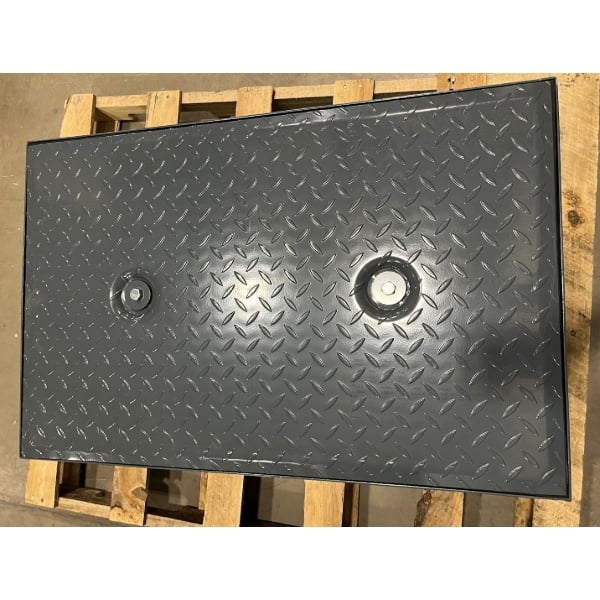

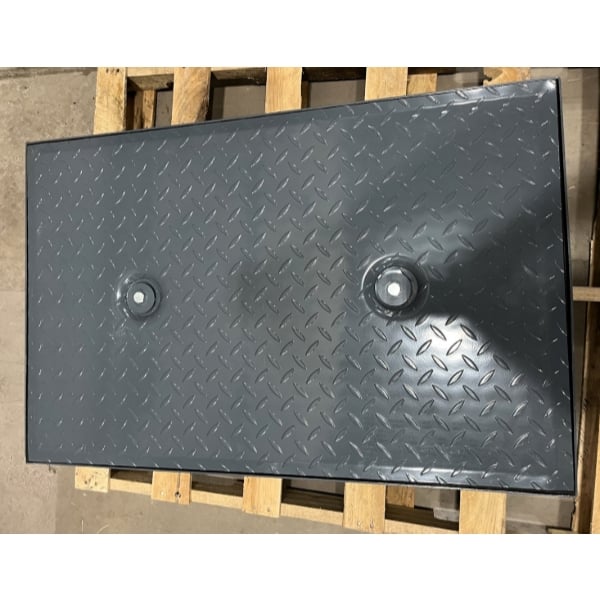

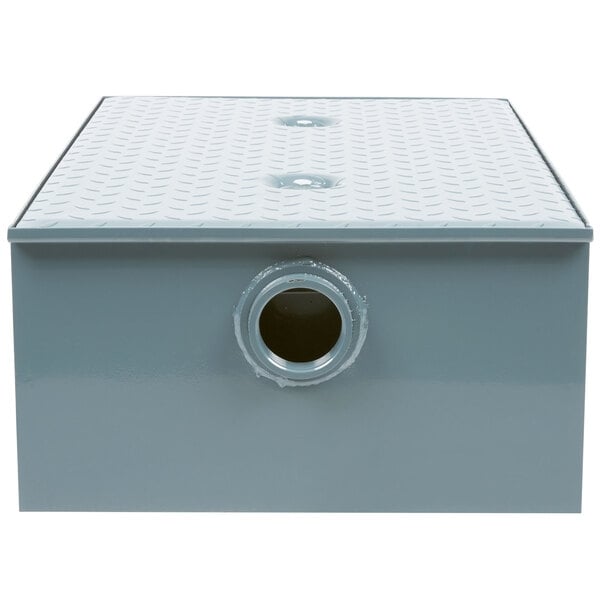

This grease trap features a body constructed of 11-gauge cold rolled steel with an oven-cured, acid-resistant baked gray epoxy coating. Other standard features include a solid steel cover with gasket, a removable baffle assembly, a deep seal trap with cleanout, threaded connections, and an external cast iron flow control fitting (flow restrictor). This unit has a grease capacity of 40 lb., and a flow rate of 20 GPM. It is PDI (Plumbing & Drainage Institute) certified, and meets the industry and PDI Standard PDI-G101 for separation efficiency. This standard specifies that the grease trap must maintain 90% separation efficiency up to its rated grease retention capacity.
Overall Dimensions:
Length: 34 7/8"
Width: 22 7/8"
Height: 11 3/4"
Flow Rate: 20 GPM (Gallons Per Minute)
Grease Capacity: 40 lb.
Inlet & Outlet Size: 3"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Attention CA Residents:
PDI Certified
This item has been certified by the Plumbing and Drainage Institute (PDI), which promotes the advancement of Engineered Plumbing Products.
