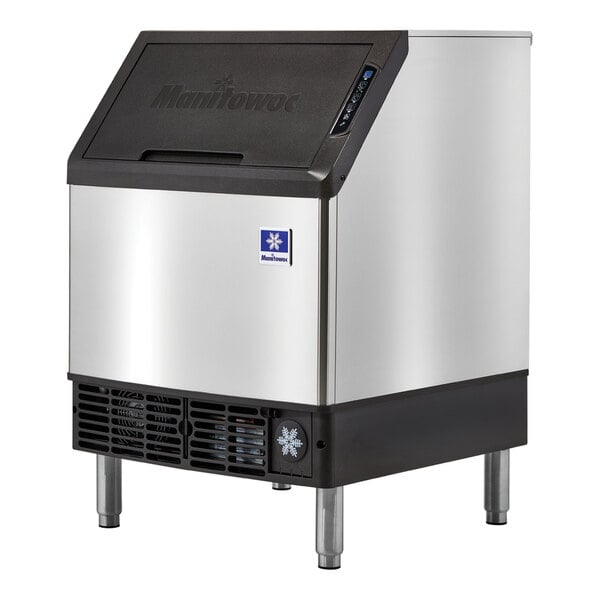

Manitowoc UYP0140A-161B NEO 26" Air Cooled Undercounter Half Dice Cube Ice Machine with 90 lb. Bin - 115V, 150 lb.
$2,699.00/Each
Contact us for details
Call 717-392-7472Mon - Fri 8AM - 8PM EST
Earn up to $80.97 back (8,097 points)with a Webstaurant Rewards Visa® Credit Card
Product Overview
- Produces up to 150 lb. of ice per day and stores up to 90 lb.
- Makes 3/8" x 1 1/8" x 7/8" half dice cubes
- Pop-out air filter and removable bin for quick cleaning and maintenance
- Simple, intuitive control and indicator panel
- 2025 Kitchen Innovations Award recipient for progressively boosting efficiency and productivity
- Quantity
- 1/Each
- Shipping Weight
- 153 lb.
- Width
- 26 Inches
- Depth
- 28 1/2 Inches
- Height
- 38 1/2 Inches
- Amps
- 5 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 150 Pounds
- Bin Storage Capacity
- 90 lb.
- Color
- Black Silver
- Condenser Type
- Air Cooled
- Features
- NSF Listed
- Ice Type
- Half Size Cubes
- Installation Type
- Undercounter
- Plug Type
- NEMA 5-15P
- Power Usage
- 7.25 kWh per 100 lbs.
- Refrigerant Type
- R-290
- Type
- Ice Machines
- Water Inlet Size
- 3/8 Inches
- Water Usage
- 17 Gallons Per 100 lbs.
Manitowoc Ice UYP0140A-161B Details
This Manitowoc NEO 26" air cooled undercounter half dice ice machine combines optimum ice production and user-friendly controls in a space-saving undercounter package. Make and store ice in one compact machine with this Manitowoc undercounter ice machine. This air cooled ice machine combines impressive ice production, user-friendly controls, and simple maintenance in a space-saving undercounter package. With a wide range of features, from an LED push pad control panel to an ergonomic scoop with a comfort grip handle / holder that can be mounted on either side of the machine, this ice cube machine is perfect for any commercial kitchen, banquet hall, or hotel.
This NEO model features integrated, on-board water filtration that reduces sediment, rust, suspended particles, and chlorine taste and color. A push pad control and indicator panel boasts universally recognizable display icons that show you when the power's on, the bin's full, service is needed, and when there's a clean cycle in progress. There's even a "delay" button that halts ice production for 4, 12, or 24 hours, making it perfect for operations that are only open for portions of a day! Additionally, the updated touchpad has an option to repeat the delay feature and has a filter change reminder. With its R-290 refrigerant with an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, this unit increases production while decreasing energy use.

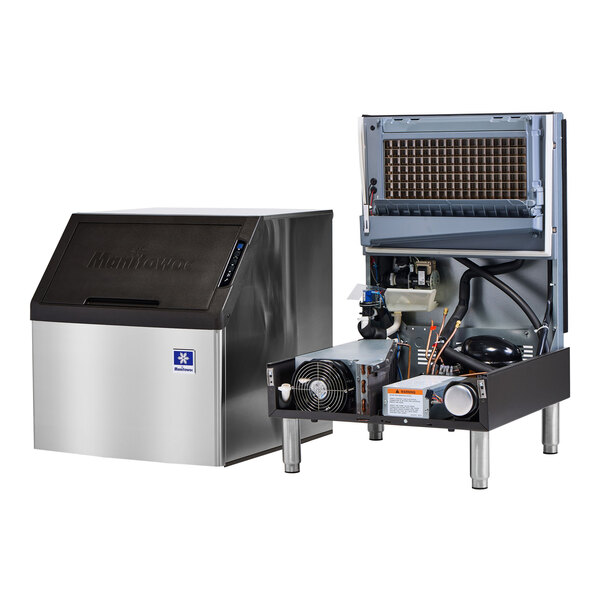

Ideal for making ice in small volume applications or as a supplement to a larger ice machine, this unit produces up to 150 lb. of half dice cube ice per day and boasts an ample 90 lb. capacity bin with an angled door that slides up and out of the way for easy access. The control panel buttons are brightly illuminated by LED lights and placed on the slanted bin front so that you can easily press and view them without having to bend over. Built with convenience in mind, the machine's air filter is designed for simple, tool-free removal for quick access during routine cleaning and maintenance, while the bin can be easily removed for full access to the machine's interior components during more thorough cleaning and maintenance. A 115V electrical connection is required for operation.
Overall Dimensions:
Width: 26"
Depth: 28 1/2"
Height: 38 1/2"
Bin Capacity: 90 lb.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
5-15P
This unit comes with a NEMA 5-15P plug.
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Kitchen Innovations Award Winner
This item is a recipient of the Kitchen Innovations® Award. Given annually by the National Restaurant Association, this award recognizes items that have made a meaningful impact in the foodservice industry.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Frequently Asked Questions From Customers
(Potable Water + Condensor Water) x (lb. of ice per day / 100)
Example: (12 gal + 124 gal) x (400 lb / 100) = 544 gallons per 24 hours
Need Parts & Accessories?
Show replacement parts and accessories for Manitowoc Ice UYP0140A-161B today!
Resources and Downloads for
Manitowoc Ice UYP0140A-161B
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications. PLEASE NOTE: Parts carry a 90 day limited warranty.
