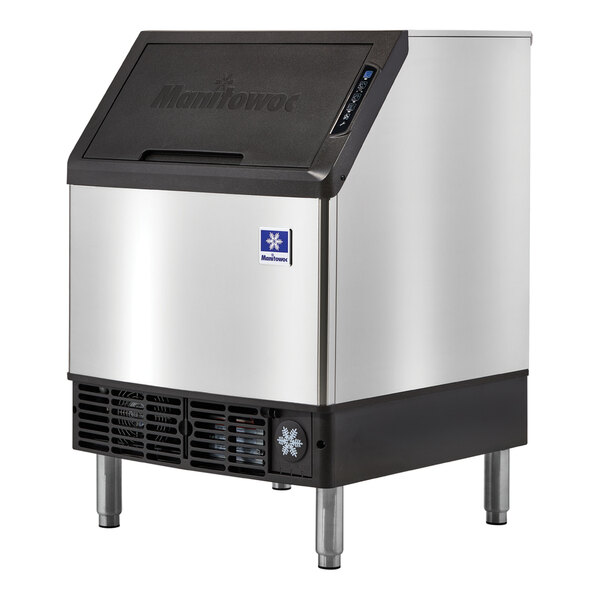

Manitowoc UDP0240W-161B NEO 26" Water-Cooled Undercounter Full Size Cube Ice Machine with 90 lb. Storage Bin - 240 lb., 115V
Item number 499udp0240waMFR number UDP0240W-161B
Works WithView All Items
$3,573.00/Each
Contact us for details
Call 717-392-7472Mon-Fri 8AM-6PM EST
- Apply, opens link in this tab
Earn up to $107.19 back (10,719 points)
(10,719 points) with a Webstaurant Rewards Visa® Credit Card
Installation Services
Check if installation is currently available for your area.Quick Shipping
Usually ships in 1 business day
Product Overview
- Produces up to 240 lb. of ice per day and stores up to 90 lb.
- Makes full size cubes
- Pop-out air filter and removable bin for quick cleaning and maintenance
- Simple, intuitive control and indicator panel, onboard water filtration
- Kitchen Innovations Award recipient for progressively boosting efficiency and productivity
UPC Code:400017737218
Works With
View All Items- Quantity
- 1/Each
- Shipping Weight
- 158 lb.
- Width
- 26 Inches
- Depth
- 28 1/2 Inches
- Height
- 38 1/2 Inches
- Amps
- 6 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 240 Pounds
- Bin Storage Capacity
- 90 lb.
- Color
- Black Silver
- Condenser Type
- Water Cooled
- Features
- BPI Certified NSF Certified Storage Bin
- Ice Type
- Cubes Full Size Cubes
- Installation Type
- Undercounter
- Plug Type
- NEMA 5-15P NEMA 5-50P
- Refrigerant Type
- R-290
- Type
- Ice Machines Ice Machines with Bins
- Water Inlet Size
- 3/8 Inches
Manitowoc Ice UDP0240W-161B Details
Make and store ice in one compact machine with this Manitowoc NEO undercounter ice machine. This water-cooled ice machine combines impressive ice production, user-friendly controls, and simple maintenance in a space-saving undercounter package! Ideal for making ice in small volume applications or as a supplement to a larger ice machine, this unit can produce up to 235 lb. of full size cubes per day while boasting an ample 90 lb. bin.
This NEO model features integrated, on-board water filtration that reduces sediment, rust, suspended particles, and chlorine taste and color. A push pad control and indicator panel boasts universally recognizable display icons that show you when the power's on, the bin's full, service is needed, and when there's a clean cycle in progress. There's even a "delay" button that halts ice production for 4, 12, or 24 hours, making it perfect for operations that are only open for portions of a day! Additionally, the updated touchpad has an option to repeat the delay feature and has a filter change reminder, and the buttons are brightly illuminated by LED lights and placed on the slanted bin front so that you can easily press and view them without having to bend over. With its R-290 refrigerant with an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, this unit increases production while decreasing energy use.

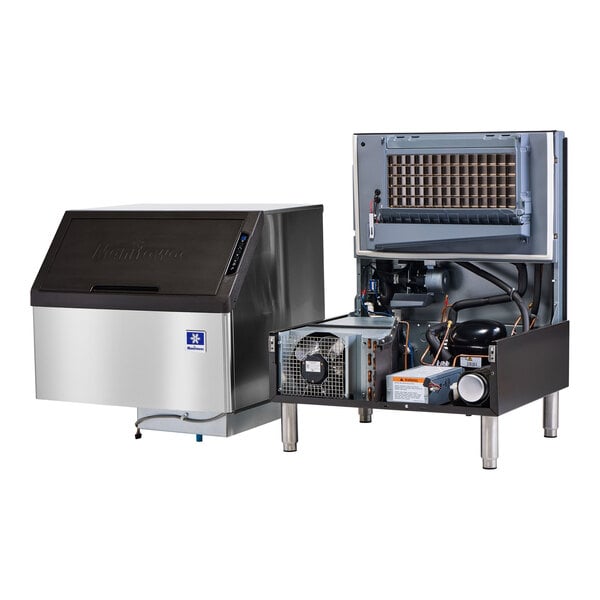

This ice machine features an easy-access door that slides up and out of the way, giving you a clear path to the ice for simple filling of pitchers, glasses, and even transport buckets. It also conveniently includes an ergonomic scoop with a comfort grip handle, along with a holder that can be mounted on either side of the machine for easy storage and access. Built with convenience in mind, the machine's air filter is designed for simple, tool-free removal for quick access during routine cleaning and maintenance, while the bin can be easily removed for full access to the machine's interior components during more thorough cleaning and maintenance. An onboard water filtration system removes the guesswork involved in sizing a water filter and makes maintaining the unit a simpler process. A pre-filter (sold separately) may be used if your application benefits from it. A 115V electrical connection is required for operation.
Overall Dimensions:
Width: 26"
Depth: 28 1/2"
Height: 38 1/2"
Bin Capacity: 90 lb.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

5-15P
This unit comes with a NEMA 5-15P plug.

ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

NSF Certified
This item is certified by NSF to applicable standards.

3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Frequently Asked Questions From Customers
(Potable Water + Condensor Water) x (lb. of ice per day / 100)
Example: (12 gal + 124 gal) x (400 lb / 100) = 544 gallons per 24 hours
Need Parts & Accessories?
Show replacement parts and accessories for Manitowoc Ice UDP0240W-161B today!
Resources and Downloads for Manitowoc Ice UDP0240W-161B

Specsheet
Opens in new tab
Manual
Opens in new tab
Warranty
Opens in new tab
Extended Warranty
Opens in new tab
Ice Usage Guide
Opens in new tab
Maintenance Guide
Opens in new tabA PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab
Equivalent Items
- Manitowoc Ice UDF0240W-161B (Formerly)
