Manitowoc CNP0201A-161 16 1/4" Air Cooled Countertop Nugget Ice Maker / Dispenser - 10 lb. Bin with Sensor Dispensing - 115V
Item number 499cnp0201aaMFR number CNP0201A-161
$5,802.00/Each
Contact us for details
Call 717-392-7472Mon-Fri 8AM-6PM EST
Earn up to $174.06 back (17,406 points)with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business day
Product Overview
- Makes up to 285 lb. of ice per day; stores up to 10 lb.
- Automatic, sensor-activated dispensing with blue LED lighting
- Three dispensing options: ice, water, or ice and water
- DuraTechâ„¢ front panel for easy cleaning and fewer hard water stains
- Uses R-290 refrigerant; 115V
UPC Code:400017973517
Works With
- Quantity
- 1/Each
- Shipping Weight
- 182 lb.
- Width
- 16 1/4 Inches
- Depth
- 24 Inches
- Height
- 35 Inches
- Power Cord Length
- 6 Feet
- Height to Dispenser
- 12 1/2 Inches
- Amps
- 7.8 Amps
- Phase
- 1 Phase
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 285 Pounds
- Ambient Temperature Range
- 45 - 110 Degrees F
- Bin Storage Capacity
- 10 lb.
- Condenser Type
- Air Cooled
- Dispenser Style
- Sensor
- Features
- LED Lighting NSF Certified Water Dispenser
- Ice Type
- Chewable Nugget
- Installation Type
- Countertop
- Plug Type
- NEMA 5-15P
- Power Usage
- 6.35 kWh per 100 lbs.
- Refrigerant Type
- R-290
- Total BTU
- 2,300 BTU
- Type
- Ice / Water Combination Machines
- Water Inlet Size
- 3/8 Inches
- Water Pressure Range
- 20 - 80 PSI
- Water Temperature Range
- 45 - 90 Degrees F
- Water Usage
- 12 Gallons Per 100 lbs.
Manitowoc Ice CNP0201A-161 Details

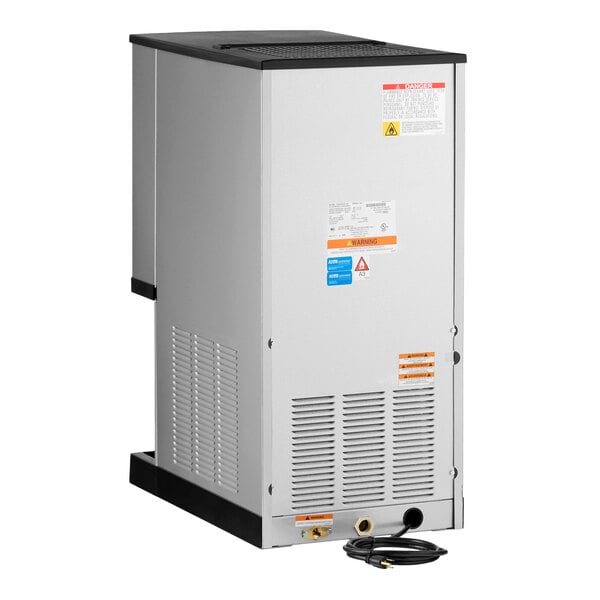

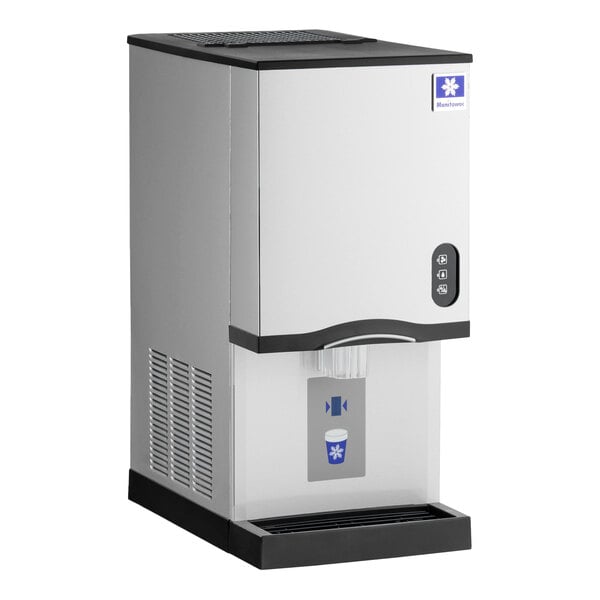

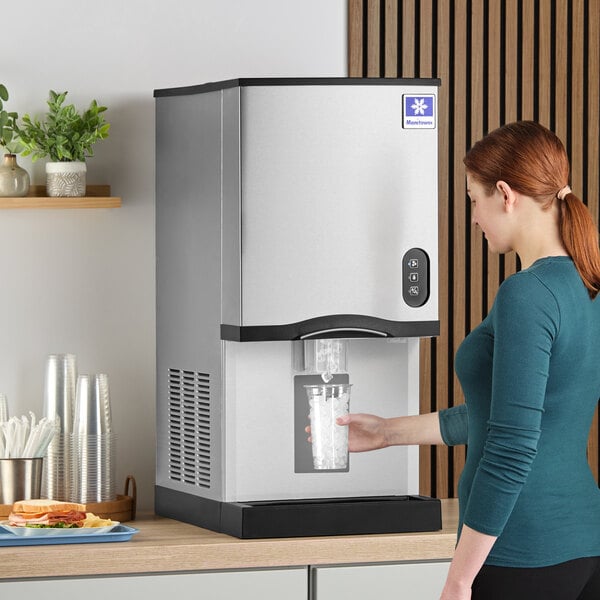

The Manitowoc countertop ice machine and water dispenser can produce up to 285 lb. of bite-sized, chewable nugget ice per day in a convenient, space-saving design! For easy use, this unit has a hands-free, automatic sensor dispensing system that is illuminated by a blue LED light for excellent visibility and aesthetic appeal. It boasts a 10 lb. storage capacity in a narrow 16 1/4" wide footprint with drain connection at the back of the unit and optional bottom drain connection for flush mounting, allowing you to keep plenty of ice ready for busy times without sacrificing valuable countertop space.
There are three dispensing options to choose from: "Ice Only," "Water Only," or "Ice and Water," and best of all, you can toggle between these settings with the touch of a button, making it great for healthcare, cafeteria, and break room applications. The nugget ice also offers an 85% ice-to-water ratio for maximum cooling effectiveness and minimal drink dilution, plus it's softer and more chewable than other ice types. It has an integrated sanitation system for automated cleaning, and a large drain pan to reduce spills.
To ensure easy cleaning and a pristine appearance for years to come, this unit features a unique DuraTechâ„¢ front panel that helps protect the dispensing area. This hard, clear coating provides excellent scratch resistance, and it's very easy to wipe clean. This dispenser uses environmentally friendly R-290 refrigerant and requires a 115V electrical connection for operation (6' power cord included).
Overall Dimensions:
Width: 16 1/4"
Depth: 24"
Height: 35"
Bin Capacity: 10 lb.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

NSF Certified
This item is certified by NSF to applicable standards.

CE Marking
This product complies with the standards imposed by Conformance European (CE).

5-15P
This unit comes with a NEMA 5-15P plug.

3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.

UL Certified
This product is certified to applicable standards and requirements by UL Solutions.
