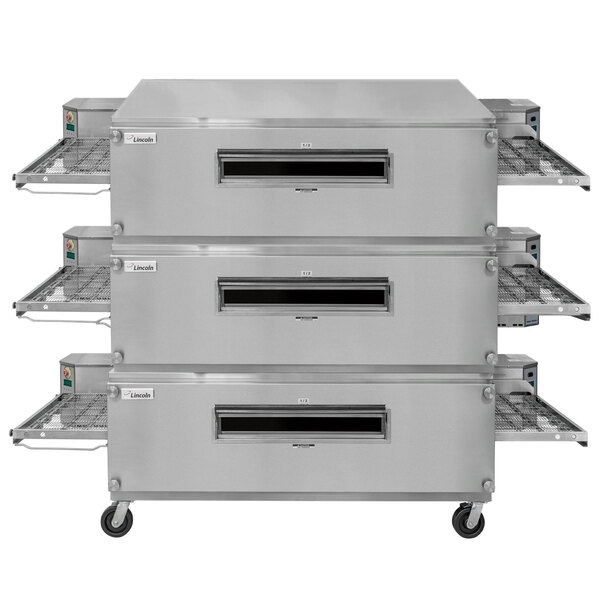

Lincoln 3255-3 Liquid Propane Impinger Triple Conveyor Oven Package with 55" Long Baking Chamber - 435,000 BTU

Item number  93632553lpMFR number  3255-3 LP GAS

This Product is no longer available

Browse our full selection
See more products

$76,036.00/Each

This product is no longer available. We've left this page up for reference only.

Product Overview

  • Triple stack design includes 3 ovens for maximum space efficiency
  • FastBake technology bakes product 35% faster than other ovens
  • Digital controls and easy-to-read displays to adjust and monitor operation
  • Operates between 250 and 600 degrees Fahrenheit; conveyor speed from 30 seconds to 1 minute
  • Features set up options for impingement fingers

UPC Code:400012432095

View All Products From LincolnView all Lincoln Conveyor Ovens and Impinger Ovens

Lincoln 3255-3 LP GAS Specs

Quantity
1/Each
Shipping Weight
2514 lb.
Width
92 15/16 Inches
Depth
57 7/16 Inches
Height
70 7/8 Inches
Belt Length
91 Inches
Cooking Chamber Length
54 3/4 Inches Medium
Belt Width
33 1/2 Inches Wide
Opening Height
3 Inches
Hertz
60 Hz
Voltage
120 Volts
Application
Maximum Performance Ovens
Control Type
Simple
Exterior Material
Stainless Steel
Gas Connection Size
2 Inches
Heating Style
Impingement
Installation Type
Floor Model
Interior Material
Stainless Steel
Number of Chambers
3 Chambers
Plug Type
NEMA 5-15P
Power Type
Liquid Propane
Style
Conveyor
Temperature Range
250 - 600 Degrees F
Total BTU
435,000 BTU

Lincoln 3255-3 LP GAS Details

Boost the efficiency of your facility by cooking with the Lincoln 3255-3 liquid propane impinger triple conveyor oven package! Featuring three stacked impinger conveyor ovens, this space-efficient unit is perfect for hotels, pizzerias, or cafeterias with high volume output, but little back of house space for equipment. Each oven is designed with a 32" wide conveyor belt that moves through the 55" long cooking chamber at an adjustable speed, from 30 seconds to 1 minute of cooking time. A 3" opening size accommodates a variety of products.

Equipped with impressive FastBake technology, each unit cooks product up to 35% faster than other conveyor ovens, which saves precious time for greater food output and helps you better keep up with customer demands. The technology uses slow impingement airflow and wide jets of heat to surround the product, increasing heat contact with the food. This in turn boosts efficiency, speeding up the cooking process and saving energy by slowing the airflow.

Thanks to the intuitive digital controls and easy-to-read displays, operating each unit is a simple process. Adjust the temperature between 250 and 600 degrees Fahrenheit, change the conveyor belt speed, view diagnostic messages, or monitor the bright thermostat indicator light for easy and customizable convenience. Plus, because each unit is equipped with impingement finger set up options and a sandwich door, it offers excellent cooking flexibility to support the unique needs of your kitchen and menu offerings.

To withstand the hustle and bustle of your commercial kitchen, each unit is made entirely of stainless steel. This means that even the interior features outstanding durability, making sure that it remains in proper working order for years, cooking and baking and crisping with ease and speed. For convenient cleaning, the front panel of each oven is removable, providing immediate access to the interior. The conveyor is also removable. A liquid propane and 120V electrical connection is required for operation.

Overall Dimensions:
Width: 92 15/16"
Depth: 57 7/16"
Height: 70 7/8"

Attention CA Residents:
  • CE Marking

    CE Marking

    This product complies with the standards imposed by Conformance European (CE).

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • CSA Design, US

    CSA Design, US

    This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.

  • CSA Blue Flame, Canada

    CSA Blue Flame, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.

  • 2" Gas Connection

    2" Gas Connection

    This unit comes with a 2" gas connection to be installed by a professional.

  • UL Certified

    UL Certified

    This product is certified to applicable standards and requirements by UL Solutions.

Resources and Downloads for Lincoln 3255-3 LP GAS

Specsheet

Specsheet

Opens in new tabManual

Manual

Opens in new tabStart up form for Webilt

Instructions

Opens in new tabWarranty

Warranty

Opens in new tabBrochure

Brochure

Opens in new tab

A PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab

Warranty Info

Please note that this item is subject to a 20% export warranty administration fee for all international orders.
Please note that this item is subject to a 20% Export Infringement Administration fee for all international orders. RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Note: This warranty covers products shipped to and installed in the USA only. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.International warranty is 1 year parts 90 days labor
