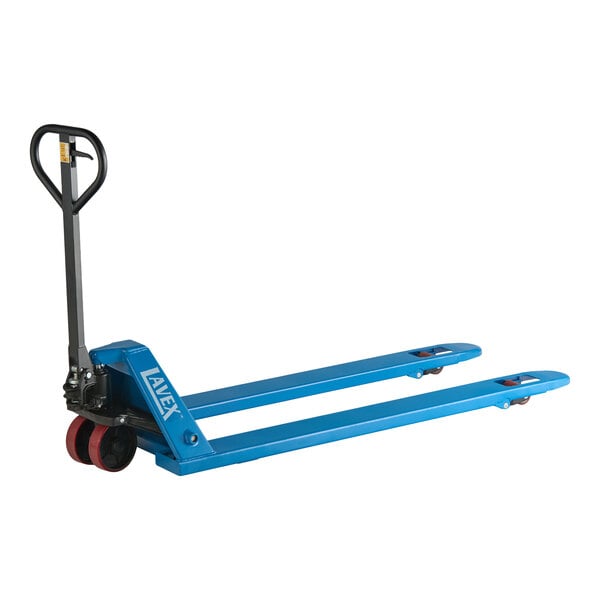

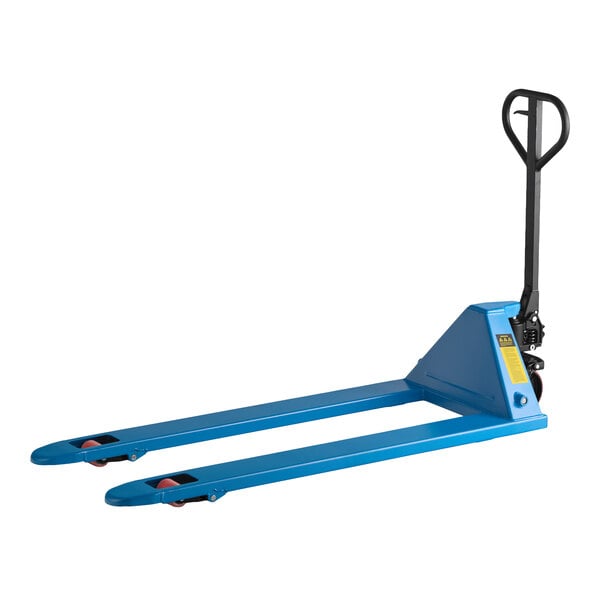

Lavex Manual Pallet Jack with 27" x 63" Forks - 5,500 lb. Capacity

Item number  481xn25df1600

Ships discounted withLearn More
New

$362.49/Each

Earn up to $10.87 back (1,087 points)with a Webstaurant Rewards Visa® Credit Card

Add to Wish List

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Capable of lifting up to 5,500 lb. of palletized loads
  • Strong and rugged steel construction

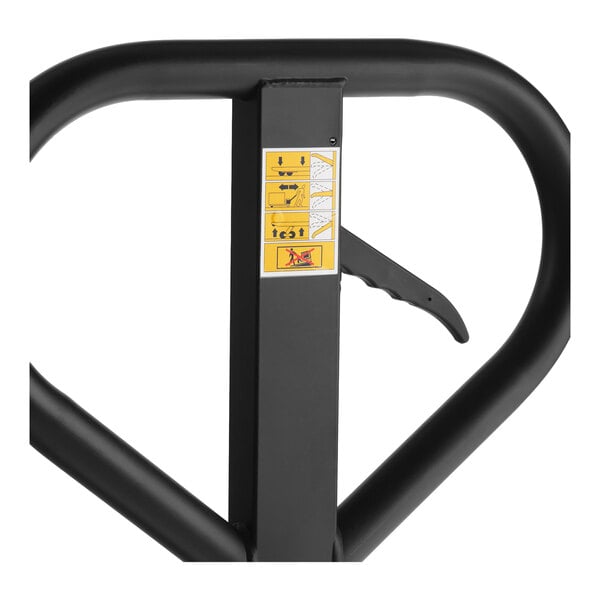

  • Convenient handle control allows for quick and easy raising and lowering
  • Powder-coated frame resists scratches

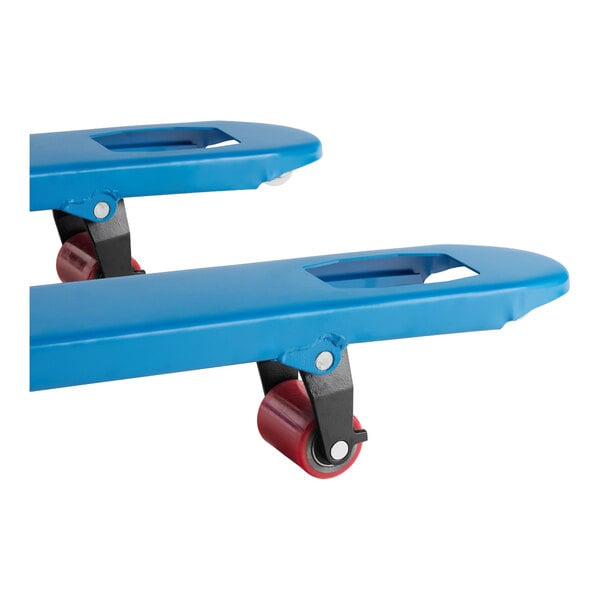

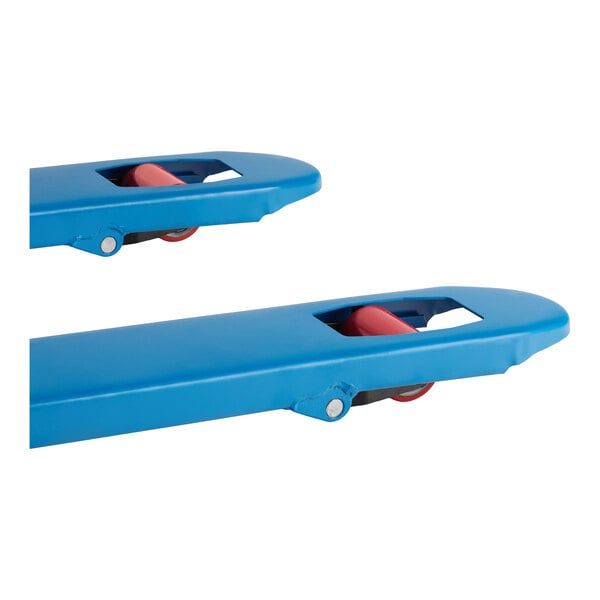

  • Tapered forks and entry wheels allow for easy pallet handling

UPC Code:400017791517

View All Products From LavexView all Lavex Pallet Trucks

Other Products from this Line

Specs

Quantity
1/Each
Shipping Weight
178.57 lb.
Length
78 3/4 Inches
Width
26 15/16 Inches
Height
46 7/8 Inches
Fork Length
63 Inches
Fork Width
26 15/16 Inches
Fork Lift Height
2 15/16 - 7 1/2 Inches
Assembly Options
Assembly Required
Capacity
5,500 lb.
Casters
With Casters
Color
Blue
Features
Ergonomic Handle
Finish
Powder-Coated
Handle
With Handle
Material
Steel
Number of Casters
4 Casters
Power Type
Manual
Style
Fork
Type
Pallet Trucks

Details

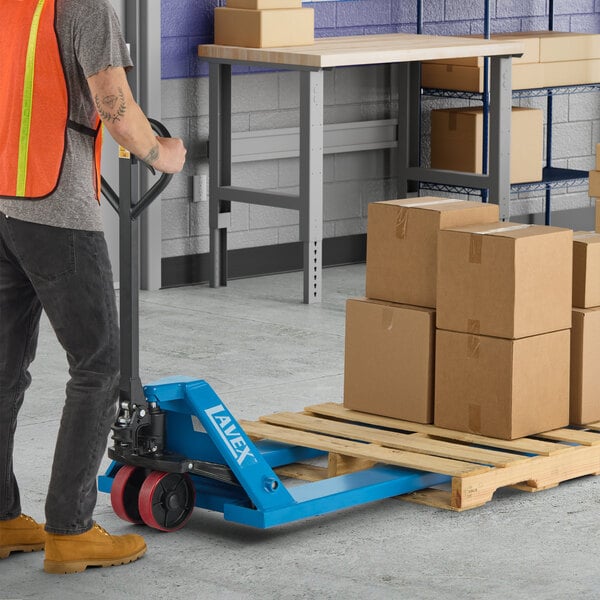

Quickly and easily transport palletized loads with this Lavex manual pallet jack! Capable of lifting up to 5,500 lb. of weight, it’s ideal for warehouses, storage rooms, or anywhere with items stored on pallets. Its rugged steel construction will allow it to stand up to consistent use. Plus, the powder-coated frame resists scratching.

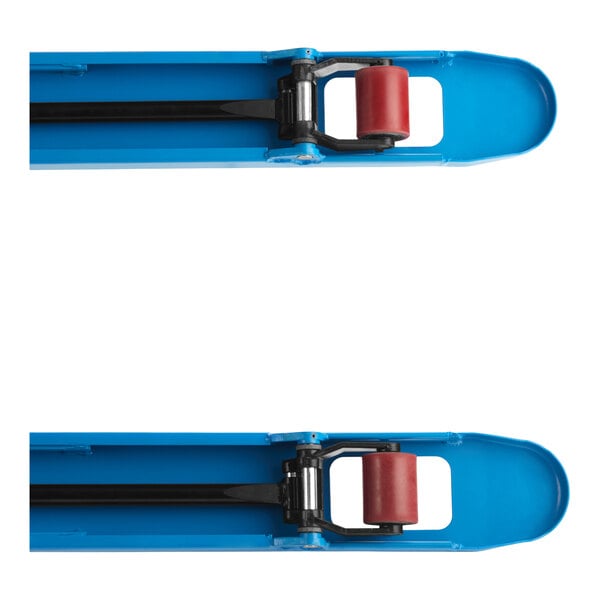

Pump this jack's handle to lift the pallet from 2 15/16" to 7 1/2" off the ground. Once this is done, two steering wheels paired with load wheels will guide you as you pull or push the truck toward the destination. Its tapered forks and entry wheels allow you to easily handle and navigate the jack. Use this pallet jack wherever you need large amounts of items transported in your area! With 63" long forks, this model provides ample space for extended length pallets and is the perfect choice for your pallet-lifting needs.

Overall Dimensions:
Length: 78 3/4"
Width: 26 15/16"
Height: 46 7/8"
Capacity: 5,500 lb.

Fork Dimensions:
Length: 63"
Width: 26 15/16"
Height: 2 15/16"-7 1/2"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.

Frequently Asked Questions From Customers

Why are the dimensions in the title different from the actual dimensions in the description?
The dimensions given in the title represent an “industry standard” – a basic size that most manufacturers produce and that people in the industry use to easily identify a type of item. However, not all manufacturers produce their products the same way. For example, a title might say 12", but the item may actually be slightly larger or smaller. We include both measurements to help you find the product you’re looking for and so you also know how large the product actually is.

Customer Reviews

Customer Photos & Videos

3.2

Rated 3.2 out of 5 stars

5 Customer Reviews

Frequently Mentioned

  • feed
  • pin
  • pump
  • chain
  • handle
  • hole
  • middle
  • pumps
  • right
  • works
Showing 5 of 5 reviews
Review by

Benjamin K.

Posted on 04/23/2024

Verified Purchase

Rated 5 out of 5 stars
Size:
27" x 48"

At least initially right now it works well. BIG TIP: The reason why some are saying it doesn't pump well or its not going up at all is because you didn't feed the chain through the middle hole in the pin. I couldn't figure this out because instructions just say to move it over the pin and feed it to the front but you actually have to feed the chain into the middle hole of the pin that you took out to put the handle on. Now it works great, only 5 pumps needed to go lift it all the way up.

Review by

Joy W.

Posted on 05/31/2023

Verified Purchase

Rated 1 out of 5 stars
Size:
27" x 48"

Having Manufacturer assist with replacement of four, bought about 10 but last few were not working and everything was connected correctly and hydraulic fluid added. Hopefully there is a fix to ongoing issues.

Thank you for your review, Alan! We are sorry this product has not worked well for you. A Customer Solutions Representative will contact you soon!

WebstaurantStore Customer Solutions

Review by

Ramadan Z. from HFC LLC

Posted on 03/10/2023

Verified Purchase

Rated 4 out of 5 stars
Size:
27" x 48"

Solid jack, but it is slow to pump! Compared to a crown or cat, this is 2-3 times slower. The wheels are good and smooth, construction is sturdy, conformable handle. I would recommend getting the rapid pump variation.

Review by

Hilvic H.

Posted on 09/09/2024

Verified Purchase

Rated 1 out of 5 stars
Size:
27" x 48"

The product took a long time to be delivered and the worst thing is that when I received it, it arrived very damaged. I will not buy anything here again for my business. Bad experience

Thank you for your review, Hilvic! We would like to gather more information about your experience with this pallet jack. A Customer Solutions Representative will contact you soon.

WebstaurantStore Customer Solutions

Review by

Ulysses C.

Posted on 02/12/2025

Verified Purchase

Rated 5 out of 5 stars
Size:
21" x 48"

This was right on time.
